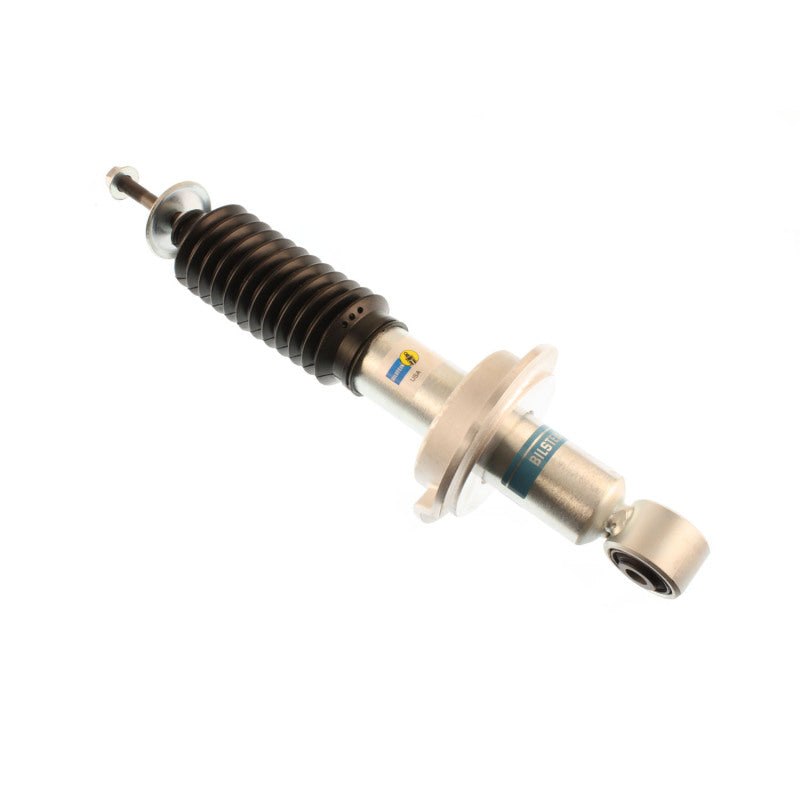

Bilstein 24-197649 B8 5100 Front Adjustable Shock for 04-15 Nissan Titan/Armada

Vehicle Fitment

• 2004-2015 Nissan Titan (Front, 2WD/4WD, Adjustable Lift)
• 2004-2015 Nissan Armada (Front, 2WD/4WD, Adjustable Lift)
• 2004-2010 Infiniti QX56 (Front, 4WD, Adjustable Lift)
• 2004 Nissan Pathfinder (Front, 2WD/4WD, Adjustable Lift)

Features

• Bilstein B8 5100 Series gas-pressure monotube front shock absorber
• Ride-height adjustable design (0-2" front lift capability)
• Monotube body with multiple snap-ring grooves for different spring seat positions
• Velocity-sensitive digressive piston valving for responsive damping
• Improved wheel control, handling, and ride quality over stock units
• Suitable for lifted or stock-height trucks/SUVs with coil springs
• Zinc-plated corrosion-resistant finish with protective boot included
• Limited lifetime warranty from Bilstein

Specifications

• Part Number: 24-197649
• Series: B8 5100 (Ride Height Adjustable)
• Position: Front, Driver or Passenger Side
• Internal Design: Monotube gas pressure
• Extended Length: ~15.43-15.61 in (392-396 mm)
• Collapsed Length: ~11.19-11.37 in (284-289 mm)
• Piston Diameter: 46 mm
• Upper Mount Type: Stem
• Lower Mount Type: Eyelet (14.2 mm)
• Adjustable Lift Range: ~0-2" front
• Boot Included: Black protective bellows

Included Components

• 1x Front shock absorber (Bilstein 24-197649)

Product Description

The Bilstein 24-197649 B8 5100 front shock absorber is engineered as a performance-oriented replacement and adjustable lift solution for Nissan and Infiniti trucks/SUVs with front coil-over style suspension. Its monotube gas-pressure design features multiple snap-ring grooves on the body, allowing you to change the spring seat position for approximately **0-2" of front lift** using the factory springs - ideal for leveling or mild lift setups.

Built to provide consistent, fade-free damping with Bilstein's signature B8 5100 tuning, these shocks deliver improved handling, stability, and wheel control over many factory shocks. The durable zinc-plated finish and included protective boot help extend service life in daily driving, hauling, light off-road use, or lifted applications. Sold individually - typically two shocks are required for a full front suspension installation - and backed by Bilstein's limited lifetime warranty for peace of mind.
