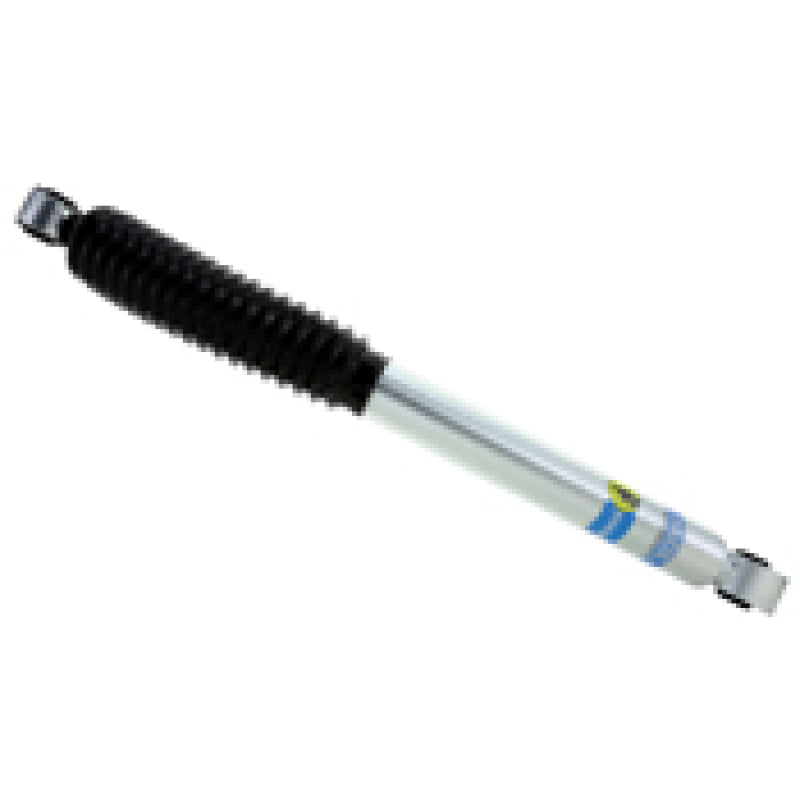

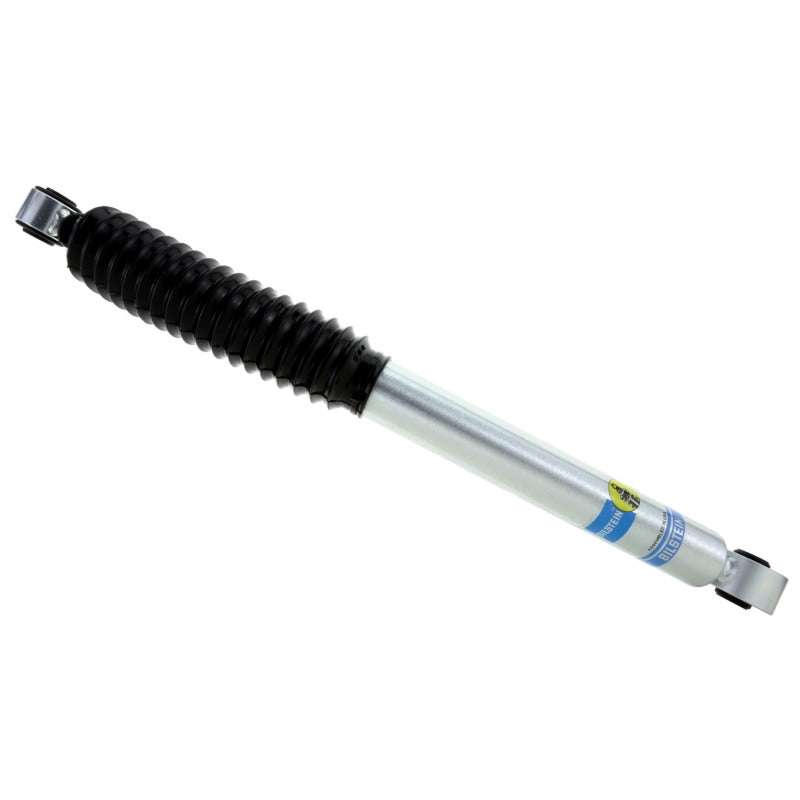

Bilstein 24-186742 B8 5100 Rear Shock 0-1" Lift for 99-10 Chevy/GMC 1500/2500

Regular price: $123.00
Regular price: ~~$171.85~~
Sale price: $123.00

Shipping calculated at checkout.

In Stock: 472

Orders by 1pm PST ship same business day

Free Shipping w/3-4 Day Delivery

Authorized Dealer

Fitment Guarantee

30-Day Hassle Free Returns

Product Specification:

SKU:BIL24-186742

MPN: 24-186742

UPC: 651860565484

Weight: 5.9 lb

Inventory: 472

Type: Shocks and Struts

Vehicle Fitment

1999-2007 Chevrolet Silverado 1500 4WD (torsion-bar rear; all trims)
2007 Chevy Silverado 1500 Classic 4WD
1999-2007 GMC Sierra 1500 4WD (torsion-bar rear; all trims)
1999-2004 Chevrolet Silverado 2500 & 2001-2010 2500HD 2WD/4WD
2001-2006 Chevrolet Silverado 3500 & 2007-2010 Silverado 3500 HD
Same for GMC Sierra 2500/3500 models in same years

Features

46 mm monotube design with digressive, velocity-sensitive piston
Zinc-plated steel body with clear-coat corrosion resistance
High-flow piston tuned for 0-1" rear lift applications
Fade-free gas-charge ensures consistent damping
OE-style 14.1 mm eyelet upper/lower mounts
Black bellows boot protects rod from debris
Factory-valved specifically for Chevy/GMC trucks with mild lifts
Bilstein limited lifetime warranty (North America)

Specifications

Position: Rear
Body diameter: 46 mm
Collapsed length: 16.14" (410 mm)
Extended length: 26.15" (664 mm)
Travel: 10.01" (254 mm)
Mounts: 14.1 mm eyelet top & bottom
Finish: Zinc-plated with clear coat, black bellows boot
Internal design: High-pressure monotube with digressive valving

Included Components

1x Bilstein B8 5100 Rear Shock (24-186742)
1x Black bellows boot
1x Mounting hardware kit (washers, bushings, nuts)

Product Description

The Bilstein B8 5100 Rear Shock (part 24-186742) is purpose-built for 1999-2010 Chevy/GMC pickups, providing calibrated damping tailored to mild rear lifts (0-1"). The 46 mm digressive piston and high-flow, gas-charged monotube design deliver enhanced handling stability, reduced body roll, and controlled rebound under load or towing. :contentReference[oaicite:1]{index=1}

Finished with zinc plating, clear coat, and protected by a black bellows boot, this shock resists corrosion and debris wear. Stock-style 14.1 mm eyelet mounts and included hardware make for a seamless bolt-on installation. Bilstein's limited lifetime warranty guarantees long-term reliability. :contentReference[oaicite:2]{index=2}

Installation note: Sold individually; use two for rear replacement. Designed for torsion-bar lift setups with up to 1" increase in ride height. Not compatible with electronic or air suspension systems. Fitment confirmed through 2010; later model compatibility is unverified. :contentReference[oaicite:3]{index=3}
