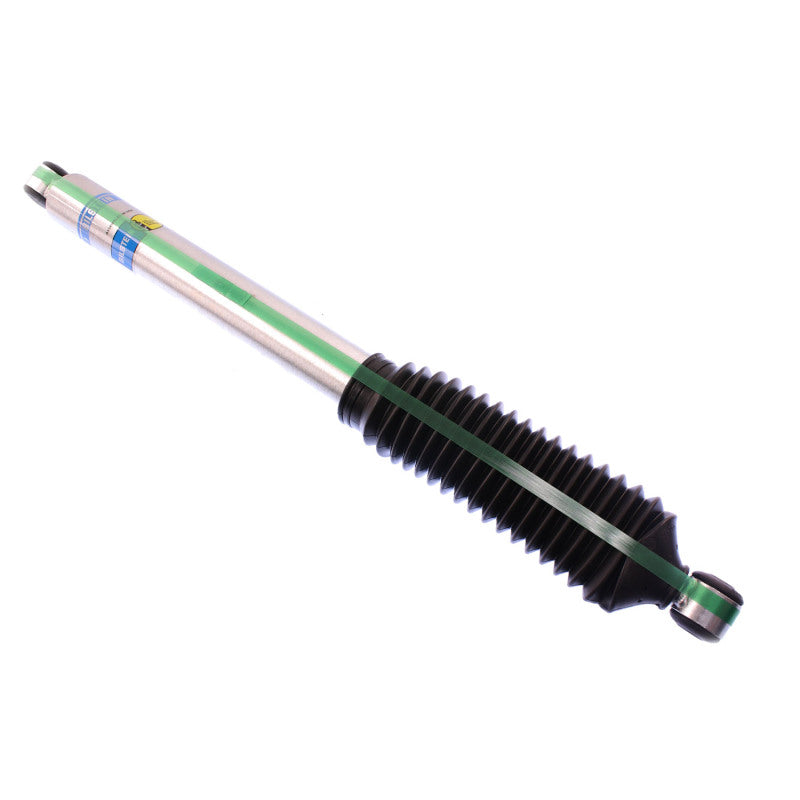

Bilstein 33-187471 B8 5100 Rear Shock for 2009-2014 Ford F-150 2WD 0-1in Lift

Vehicle Fitment

• 2009-2013 Ford F-150 (XL, STX, XLT, FX2, Lariat, King Ranch, Platinum, Harley-Davidson, Lariat Limited, 3.5L V6 EcoBoost / 3.7L V6 / 4.6L V8 / 5.0L V8 / 5.4L V8 / 6.2L V8, 2WD - Regular Cab, SuperCab, SuperCrew)
• 2014 Ford F-150 (XL, STX, XLT, FX2, Lariat, King Ranch, Platinum, Harley-Davidson, 2WD - Regular Cab, SuperCab, SuperCrew)

Fitment Notes

• Fits 2WD (RWD) configurations only - for 4WD, use Bilstein 33-187501
• Compatible with 0-1 in. of rear lift
• This shock does not add rear lift on its own - rear lift components (add-a-leaf, blocks, etc.) are required to achieve lift
• This shock is sold individually - quantity per vehicle is 2
• Installs at OEM mounting locations; no modification required

Features

• 46mm monotube design provides consistent, fade-free damping for lifted, towing, and off-road use
• Velocity-sensitive digressive valving instantly reacts to changing road surface conditions for maximum comfort and control
• High-pressure gas charge eliminates oil foaming and shock fade under sustained heavy load
• Application-specific tuning optimized for the 12th-generation F-150 2WD platform
• Chrome-hardened 14mm alloy piston rod for maximum strength and durability
• Zinc-plated finish for long-term corrosion resistance in harsh environments

Specifications

• Series: Bilstein B8 5100
• Position: Rear (Driver or Passenger Side)
• Body Diameter: 46mm Monotube
• Collapsed Length: 17.07 in. (433.5 mm)
• Extended Length: 28.03 in. (712.0 mm)
• Upper Mount Type: Eye (12mm)
• Lower Mount Type: Eye (12mm)
• Adjustable Damping: Non-Adjustable
• Lift Range: 0-1 in.
• Drivetrain: 2WD (RWD)
• Finish: Zinc Plated
• Boot Included: Yes (Black Bellows)
• Warranty: Limited Lifetime (as original purchaser)

Included Components

• 1x Bilstein B8 5100 Rear Shock Absorber (33-187471)
• 1x Lower Spring Mount and Installation Hardware

Product Description

The Bilstein B8 5100 33-187471 is a rear shock absorber engineered for the 2009-2014 Ford F-150 in 2WD configuration running up to 1 inch of rear lift. Unlike the stock 4600-spec shocks, the B8 5100 is purpose-built for trucks running larger tires, a mild lift, or carrying heavier loads - situations where factory dampers begin to fall short. Its 46mm monotube construction with digressive valving delivers improved body control and a more composed ride, whether the truck is daily driven, used for towing, or pushed on rough terrain.

Installation is a straightforward bolt-on at OEM mounting locations across all cab styles and the full engine range of the 12th-generation F-150 platform. For 4WD applications, the correct part number is 33-187501. This shock pairs well with Bilstein 5100 front struts (24-317832) for a matched front-to-rear leveling system on 2WD trucks.
