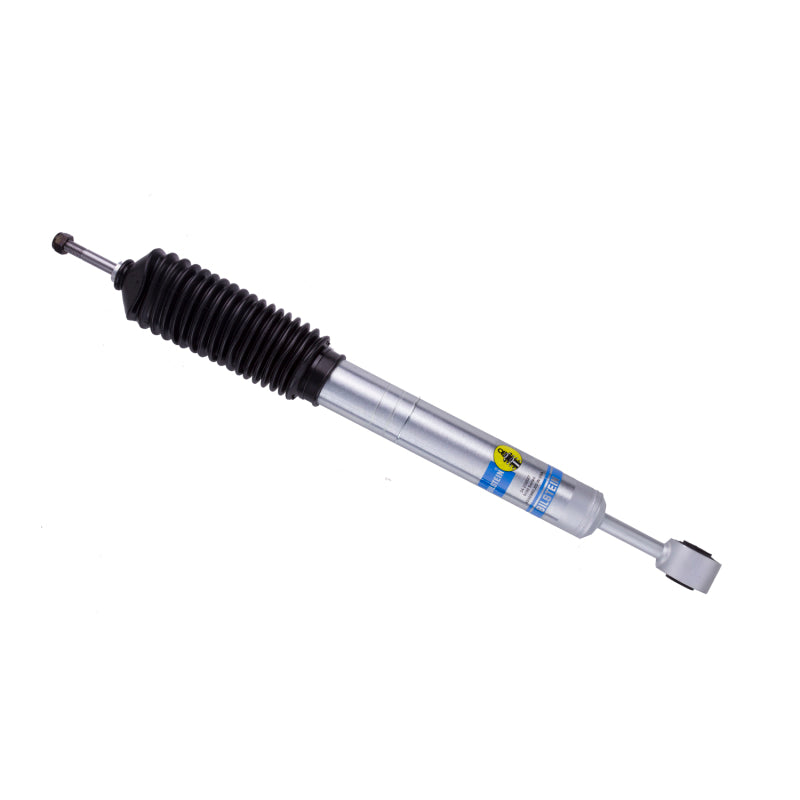

Bilstein 24-239387 B8 5100 Front Adjustable Shock for 08-22 Toyota Sequoia

Vehicle Fitment

• 2008-2022 Toyota Sequoia (Front, 2WD & 4WD, Various Engines/Trims)

Features

• B8 5100 Series monotube gas-pressurized front shock designed for ride height adjustment
• Multiple snap-ring grooves allow adjustable spring seat positions
• Provides approximately 0.87"-2.5" of front lift when paired with OE springs
• Velocity-sensitive digressive piston for consistent damping performance
• Improved wheel travel and handling over stock shocks
• Zinc-plated corrosion-resistant finish for long service life
• Direct bolt-in fit - no modifications required
• Sold individually for flexible replacement needs

Specifications

• Part Number: 24-239387
• Series: B8 5100 (Ride Height Adjustable)
• Position: Front (Driver or Passenger Side)
• Internal Design: Monotube gas-pressurized shock
• Body Diameter: 46 mm
• Lower Mount Type: Eyelet ~16.4 mm
• Upper Mount Type: Stem
• Collapsed Length: 17.77 in (451.3 mm)
• Extended Length: 24.32 in (617.8 mm)
• Adjustable Lift Range: ~0.87"-2.5" spring seat positions
• Spring Seat Included: Yes
• Boot Included: Black protective bellows
• Sold Individually - 1 shock per unit

Included Components

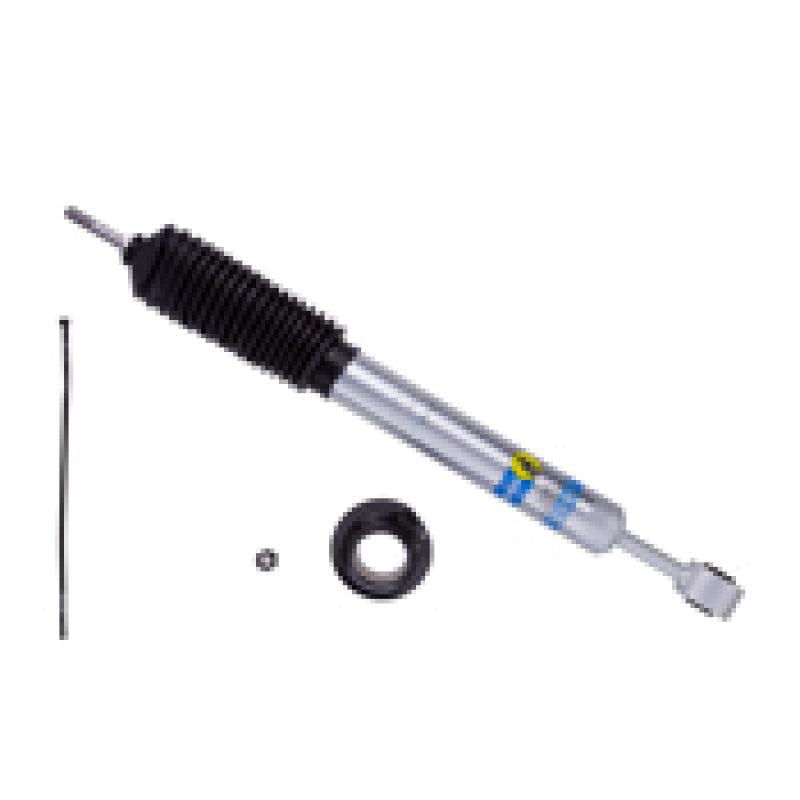

• 1x Bilstein B8 5100 Front Adjustable Shock Absorber (24-239387)

Product Description

The Bilstein 24-239387 B8 5100 Ride Height Adjustable Front Shock is engineered for Toyota Sequoia owners seeking improved suspension performance and adjustable front ride height. Featuring a monotube gas-pressurized design with a velocity-sensitive digressive piston, this shock delivers consistent damping and enhanced handling across varied driving conditions. Multiple snap-ring grooves in the body allow for adjustable spring seat positioning, providing approximately 0.87" to 2.5" of front lift using the factory coil springs, making it an ideal upgrade over stock shocks for level or lifted truck setups.

Fitment is confirmed for 2008-2022 Toyota Sequoia models with both 2WD and 4WD configurations. Designed as a direct replacement, this front shock installs into existing mounts without modification. The corrosion-resistant zinc plated finish and protective boot add durability for use on road, trail, or daily driving conditions. Coverage through the 2022 model year is verified; fitment for models beyond 2022 is unconfirmed at the time of listing.
