Bilstein 24-261425 -5100 Front Shock 0-2.5" Lift for 00-07 Toyota Tundra/Sequoia

Vehicle Fitment

• 2000-2006 Toyota Tundra 4WD (All cabs/configs; front)
• 2001-2007 Toyota Sequoia 4WD (All trims; front)

Fitment Notes

• Front shock absorber sold individually -- buy two for both sides
• Use with factory coil springs; adjustable spring perch provides 0-2.75" lift
• Not compatible with models using coil spacers only
• Direct-fit front assembly -- OEM mounts and springs retained

Features

• B8 5100 monotube design with 46 mm digressive piston for consistent damping
• Ride-height adjustable via grooved spring perch--0 to 2.75" lift range
• Zinc-plated, corrosion-resistant body with durable clear-coat finish
• Velocity-sensitive valving ensures on-road comfort and off-road control
• High-pressure nitrogen gas charge for fade-free performance
• Kit includes factory-style hardware; uses existing mounting bolts
• Monotube design promotes improved wheel travel and chassis control
• Limited lifetime warranty with ISO-certified manufacturing

Specifications

• Part Number: 24-261425
• Series: B8 5100 Ride-Height Adjustable Shock--Front
• Body Diameter: 46 mm monotube
• Collapsed Length: 13.23" (336 mm); Extended: 18.35" (466 mm); Travel: 5.12"
• Upper Mount: Stem; Lower Mount: 14.4 mm Eyelet
• Finish: Zinc-plated with clear-coat and black bellows
• Position: Front axle (single unit)
• Warranty: Limited lifetime protection

Included Components

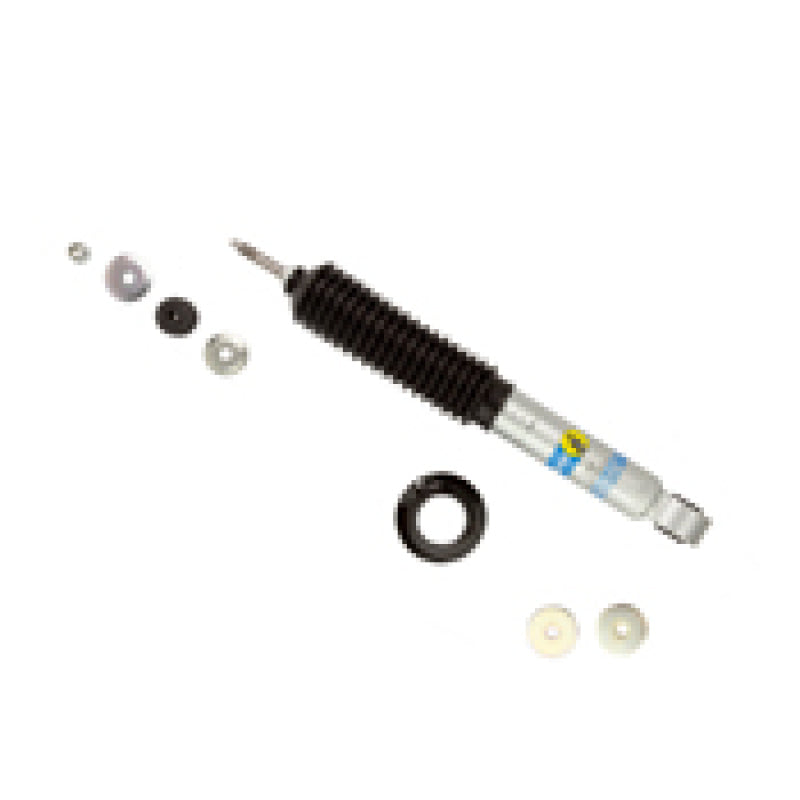

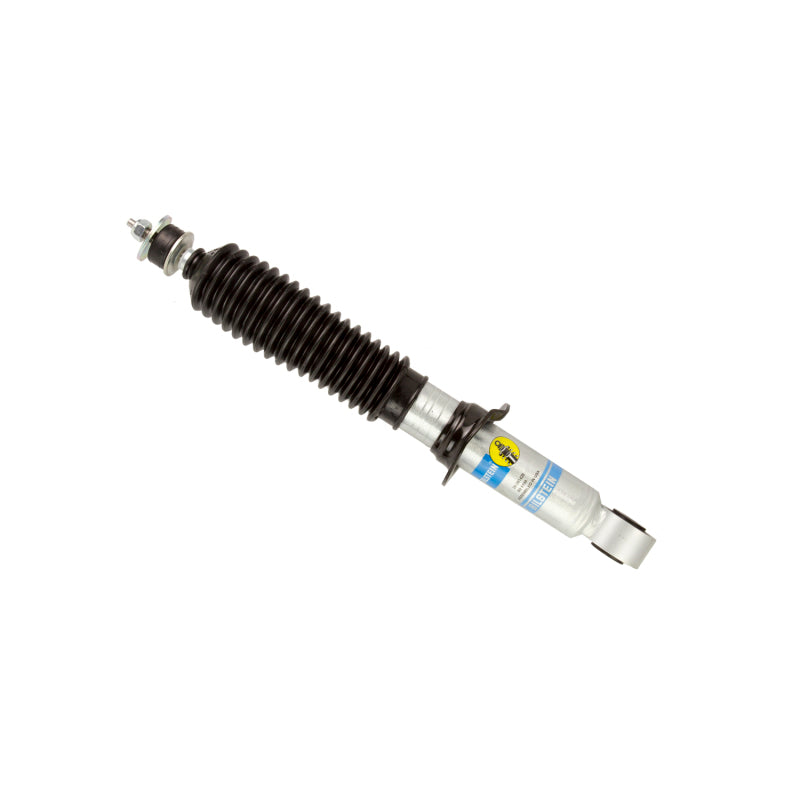

• 1x B8 5100 front shock absorber (ride-height adjustable)
• Grooved spring perch for height adjustment

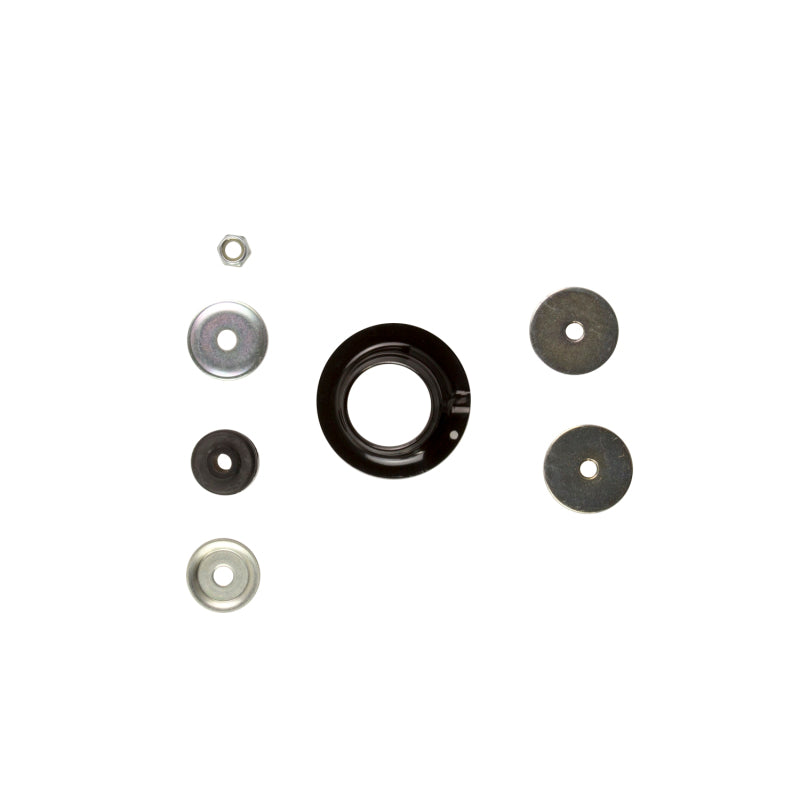

• OEM-style mounting hardware (washer, bushing, nut)
• Installation guide and warranty documentation

Product Description

Enhance the front suspension of your 2000-2006 Toyota Tundra or 2001-2007 Sequoia 4WD with the Bilstein 24-261425 B8 5100 adjustable shock. This ride-height adjustable monotube design, with a durable zinc-plated body and velocity-sensitive valving, offers superior control during daily driving and off-road conditions. Adjust spring perch height up to 2.75" without changing coil springs.

Installation is simple--bolt-on using OEM mounts and springs, and adjust ride height via the grooved perch. High-pressure nitrogen gas ensures fade-free performance, and the finish resists corrosion in harsh environments. Backed by Bilstein's lifetime warranty, this shock absorber is a premium upgrade that balances performance, durability, and customization for lifted or factory-height trucks.
