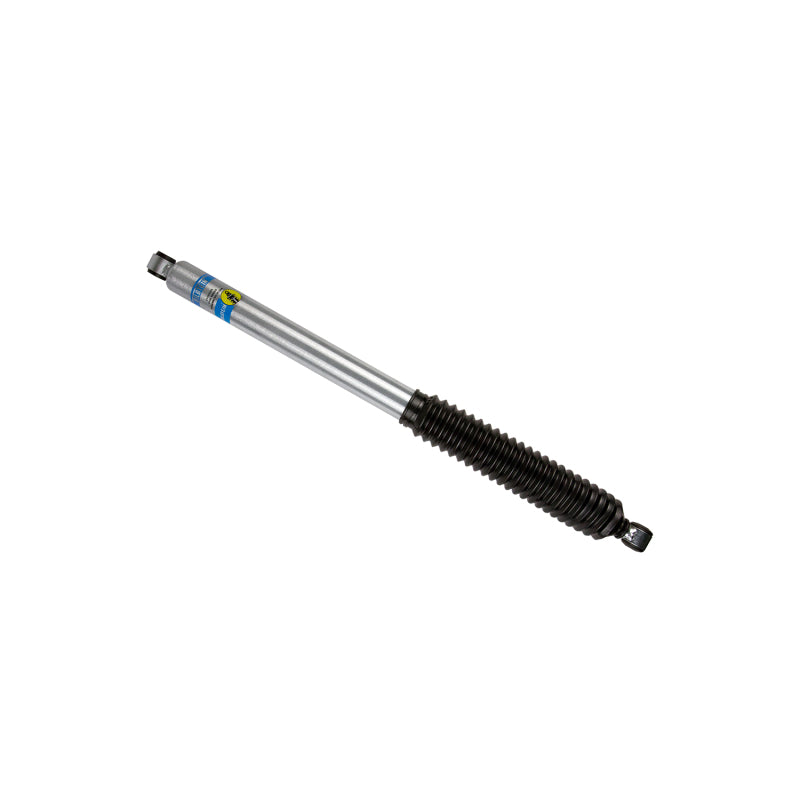

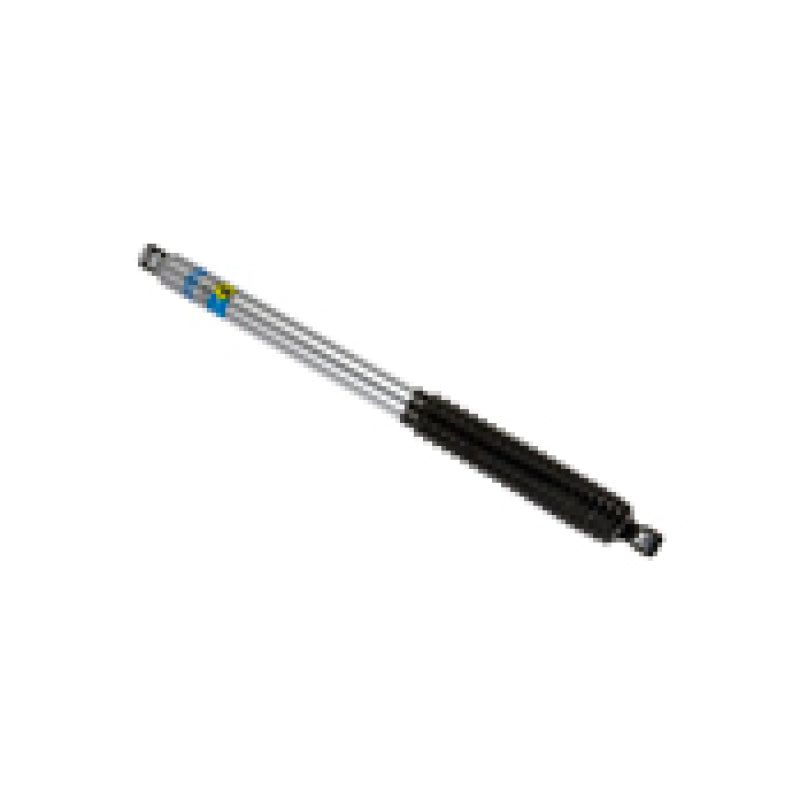

Bilstein 24-062466 B8 5100 Rear Shock for 99-16 Ford F-250/F-350 4WD 2-4" Lift

Vehicle Fitment

• 1999-2016 Ford F-250 Super Duty -- 4WD, w/ 2"-4" rear lift
• 1999-2016 Ford F-350 Super Duty -- 4WD, w/ 2"-4" rear lift

Fitment Notes

• REAR position ONLY
• 4WD models ONLY
• For vehicles with 2"-4" rear lift (verify by measuring)
• Lift height is manufacturer suggested -- measure shock eye-to-eye for proper fitment
• Sold individually -- 2 required per vehicle
• Upper mount: 16mm eye
• Lower mount: 12mm eye
• Replaces Bilstein F4-BE5-6246-H6
• Tuned specifically for Ford Super Duty -- not a universal fit shock

Features

• B8 5100 Series -- designed for lifted trucks and SUVs
• High gas pressure monotube design
• 46mm digressive piston -- largest available diameter
• Self-adjusting deflective disc valving -- independent rebound and compression
• Velocity sensitive -- instantly reacts to changing road conditions
• Split compression and rebound tuned for this specific application
• Fade-free, consistent damping performance
• Zinc-plated steel body with Triple-C Technology coating
• 14mm centerless-ground, case-hardened, chromed, super-polished rod
• Ideal for heavy hauling, towing, and occasional off-road use

Specifications

• Part Number: 24-062466
• Brand: Bilstein
• Product Line: B8 5100 Series
• Type: Rear shock absorber
• Position: Rear
• Piston Diameter: 46mm
• Body Design: 46mm ID smooth body (non-coilover)
• Body Tube: 2" seamless extruded
• Shaft: 14mm chromed and super-polished
• Upper Mount: 16mm eye
• Lower Mount: 12mm eye
• Compressed Length: 20.28"
• Extended Length: 32.01"
• Travel: 11.73"
• Finish: Zinc plated with Triple-C Technology
• Reservoir: No
• Quantity: Sold individually
• Country of Origin: USA
• Warranty: Bilstein limited lifetime warranty

Included Components

• 1x B8 5100 Series rear shock absorber
• Black dust boot
• Bushings (as required for application)
• Installation hardware

Product Description

The Bilstein 24-062466 is a B8 5100 Series rear shock absorber designed for 1999-2016 Ford F-250 and F-350 Super Duty 4WD trucks with 2"-4" of rear lift. This high gas pressure monotube shock features a 46mm digressive piston with self-adjusting deflective disc valving that provides independent rebound and compression damping, automatically adapting to changing road surfaces for maximum comfort and control on and off the road. The split compression and rebound valving is specifically tuned for the Ford Super Duty platform -- this is not a one-size-fits-all shock.

The monotube design runs cooler and more efficiently than twin-tube shocks for longer service life and fade-free performance under heavy hauling, towing, and sustained off-road use. The 2" seamless extruded body tube houses a 14mm centerless-ground, case-hardened, chromed, and super-polished piston rod for smooth, consistent operation. The zinc-plated finish with Bilstein's Triple-C Technology coating provides superior corrosion resistance in harsh environments. With a compressed length of 20.28" and extended length of 32.01" providing 11.73" of travel, always measure your existing shock eye-to-eye to confirm proper fitment, as lift heights vary across aftermarket suspension systems. Sold individually -- order two for a complete rear pair. Backed by Bilstein's limited lifetime warranty.
