Bilstein 24-185417 B8 5100 Rear Shock 1997-2004 Ford F-150 0-2" Lift 5-Lug Only

Vehicle Fitment

• 1997-2003 Ford F-150 (2WD and 4WD, Light Duty Suspension / 5-Lug Wheels, 0-2" Rear Lift)
• 2004 Ford F-150 Heritage (2WD and 4WD, Light Duty Suspension / 5-Lug Wheels, 0-2" Rear Lift)

Fitment Notes

• Fits rear axle - Driver or Passenger Side (sold as a single unit; 2 required per vehicle).
• Light Duty Suspension (5-lug wheels) ONLY - does not fit Heavy Duty F-150 variants with 8-lug wheels.
• Designed for vehicles with 0-2" of rear lift already installed - compatible with stock height through 2" of rear suspension lift.
• Fits both 2WD (RWD) and 4WD F-150 configurations across all cab styles and trims.
• Covers the 10th generation F-150 (1997-2003) and the carry-over 2004 F-150 Heritage model.

Features

• Bilstein B8 5100 series - engineered for lifted trucks, SUVs, and vehicles with larger tires and altered suspension geometry.
• 46mm monotube gas-pressure design with extended travel delivers consistent, fade-free damping on and off road.
• Patented velocity-sensitive digressive valving instantly reacts to changing road surfaces for maximum comfort and control.
• Independent rebound and compression tuning optimized for the F-150 rear suspension with 0-2" of lift.
• Zinc-plated finish for superior corrosion resistance with black rubber boot for long-term durability.
• Direct bolt-on fitment using factory mounting points - no drilling or modifications required.
• Backed by Bilstein's limited lifetime warranty against manufacturer defects.

Specifications

• Series: Bilstein B8 5100
• Internal Design: 46mm Monotube Gas-Pressure
• Finish: Zinc-Plated
• Boot: Black (Included)
• Position: Rear (Driver or Passenger Side)
• Upper Mount Type: Stem
• Lower Mount Type: Eye 12mm
• Extended Length: 27.32 in
• Collapsed Length: 16.38 in
• Travel: 10.94 in
• Compatible Lift Range: 0-2" Rear Lift
• Application: Light Duty Suspension (5-Lug) Only
• Quantity per Vehicle: 2

Included Components

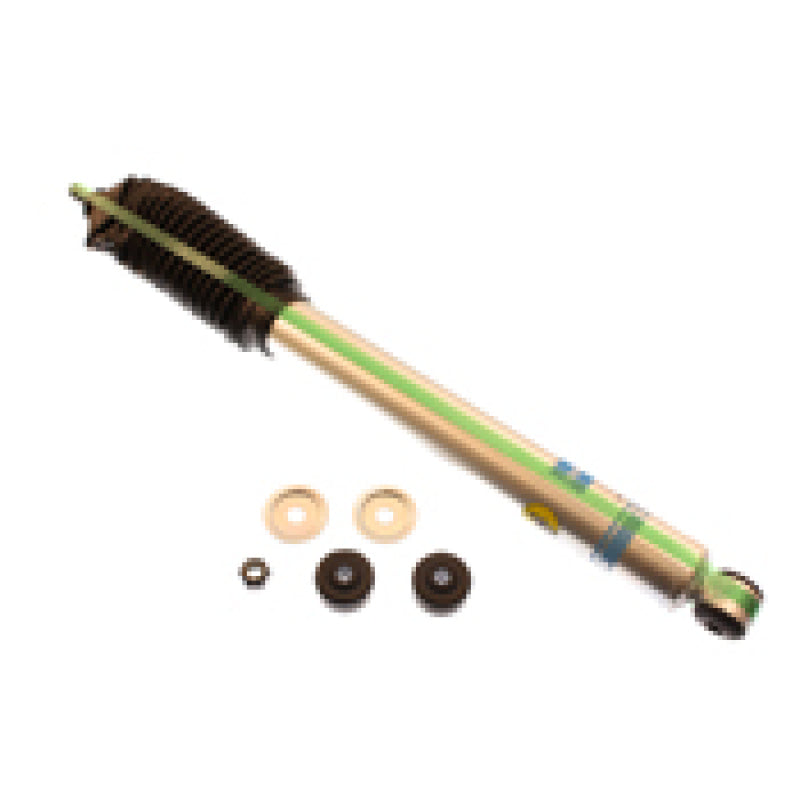

• 1x Bilstein B8 5100 Rear Shock Absorber (24-185417)

Product Description

The Bilstein 24-185417 is a B8 5100 series rear shock absorber engineered for the 1997-2003 Ford F-150 and 2004 F-150 Heritage with light duty (5-lug) suspension, designed for vehicles running 0-2" of rear lift. Its extended travel and 46mm monotube gas-pressure design - with Bilstein's patented digressive valving - deliver consistent, fade-free rear damping specifically calibrated for the altered geometry of a modestly lifted F-150, whether on daily drives, towing, or off-road terrain.

This shock is for the 5-lug light duty F-150 only - the heavy duty 8-lug variants use a different part number. It is sold as a single unit - two are required for a complete rear shock replacement. For F-150 owners running stock height, the B6 4600 rear shock (24-185141) is the more appropriate alternative. For rear lift greater than 2", a longer-travel B8 5100 application-specific part number is required.
