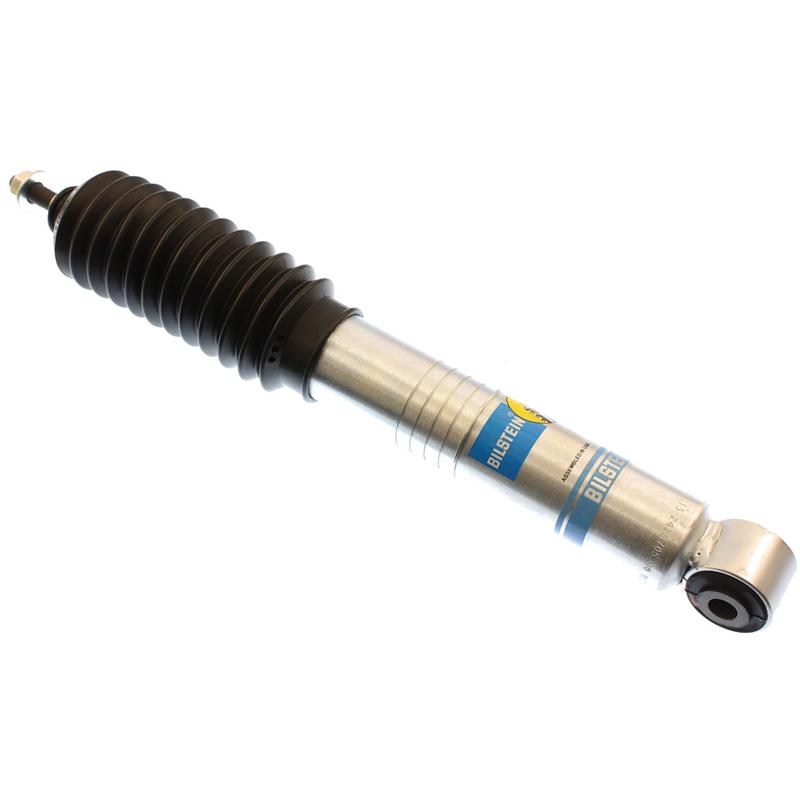

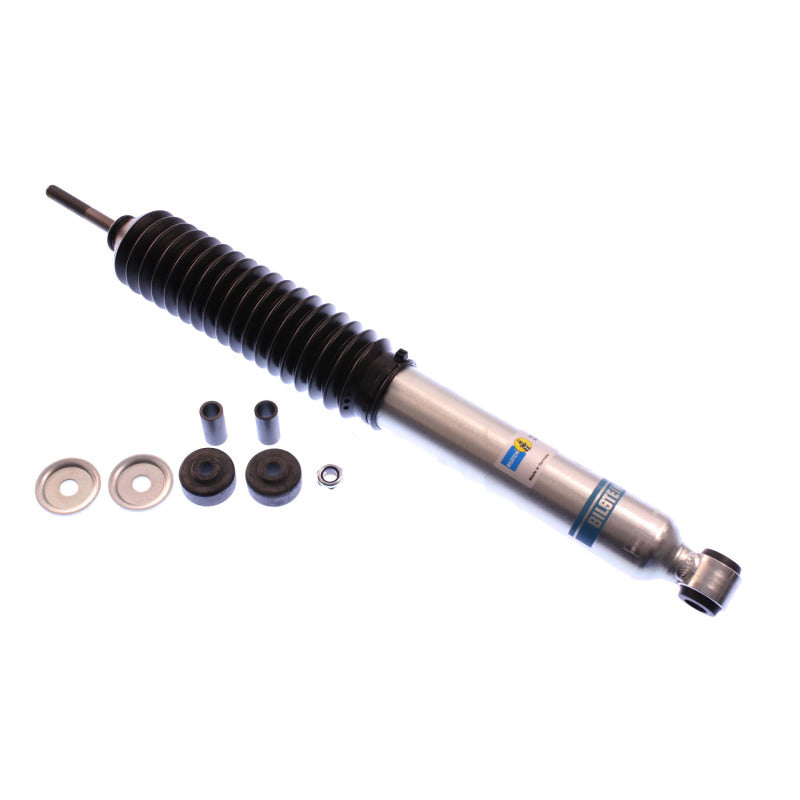

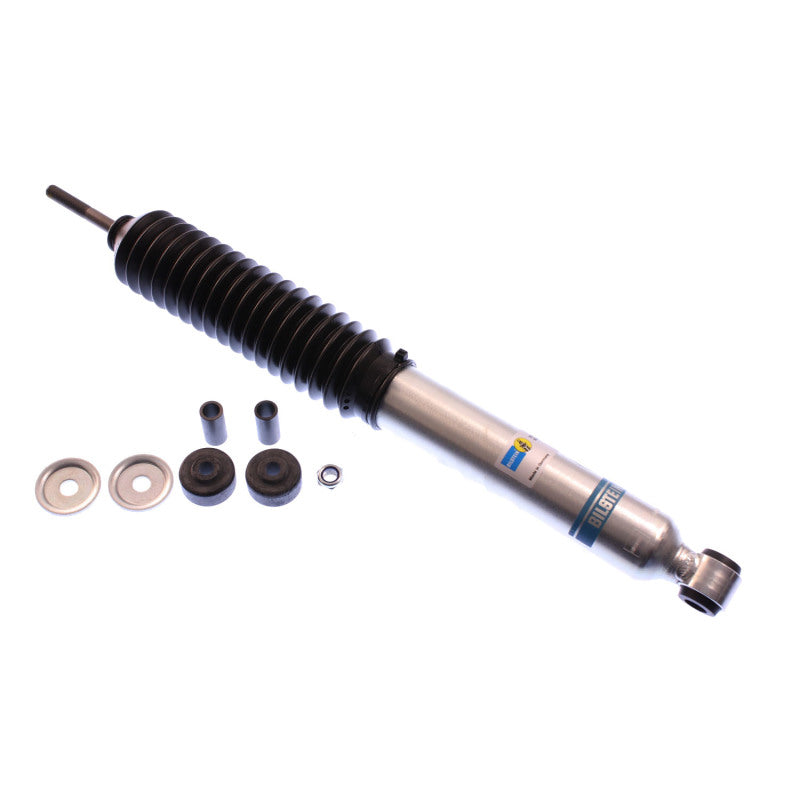

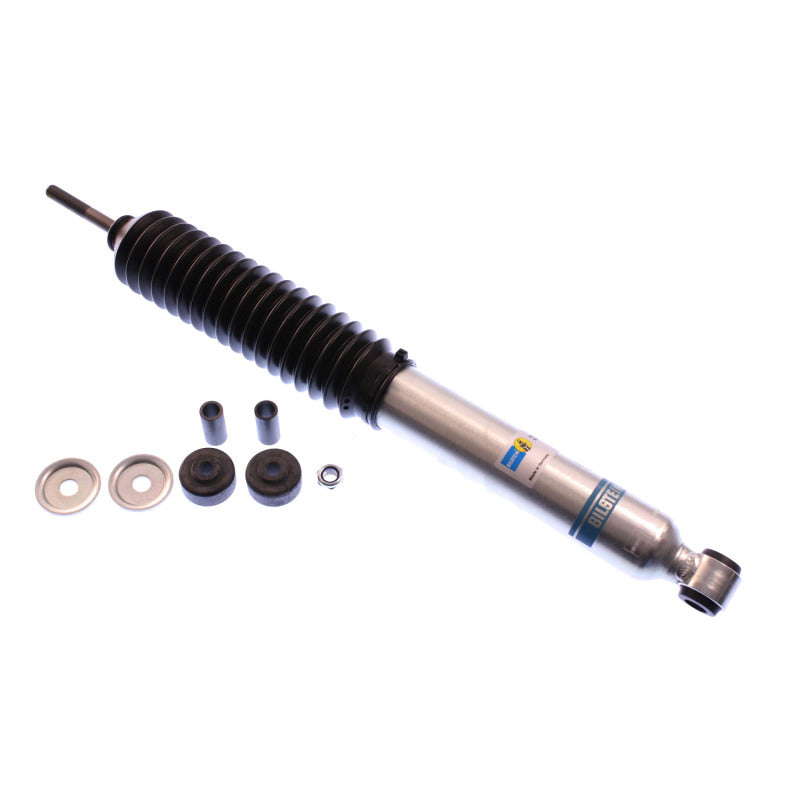

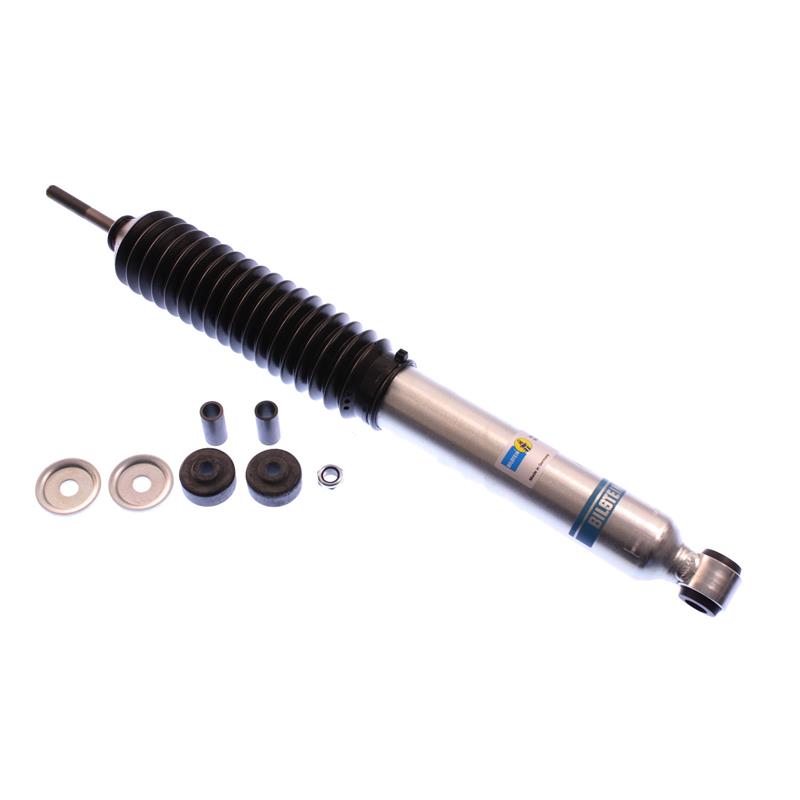

Bilstein 24-185684 Front B8 5100 Shock for 1983-1997 Ford Ranger Lifted

Vehicle Fitment

• 1983-1997 Ford Ranger (Front, 4WD/2WD; Lifted ~6" Front)

Features

• Bilstein B8 5100 Series front shock absorber
• Monotube gas-charged design for improved damping and heat dissipation
• Designed for lifted trucks with ~6" front lift height
• Velocity-sensitive digressive piston for responsive performance
• Zinc plated corrosion-resistant finish
• Black protective boot included
• Non-adjustable damping tuned for lifted suspension dynamics
• Limited lifetime warranty from Bilstein

Specifications

• Part Number: 24-185684
• Series: Bilstein B8 5100
• Position: Front (driver or passenger side)
• Internal Design: Monotube gas-charged
• Extended Length: 20.49" / 520.5 mm
• Collapsed Length: 12.87" / 327 mm
• Body Diameter: 46 mm
• Upper Mount: Stem
• Lower Mount: Eye 5/8" (15.9 mm)
• Lift Compatibility: ~6" front lift
• Quantity: Sold individually

Included Components

• 1x Bilstein B8 5100 Front Shock Absorber (24-185684)
• 1x Black Protective Boot

Product Description

The Bilstein 24-185684 B8 5100 front shock absorber is engineered for lifted Ford Ranger trucks (1983-1997) with approximately 6" of front suspension lift. Featuring Bilstein's monotube gas-charged technology and a velocity-sensitive digressive piston, this shock delivers responsive and fade-resistant performance both on pavement and off-road. Its corrosion-resistant zinc plated finish and protective boot enhance durability in challenging conditions.

Designed for direct bolt-on installation using existing mounting points, the 24-185684 improves ride quality, handling, and control over worn or stock shocks on lifted applications. Sold individually, replacing both left and right front shocks is recommended for balanced suspension performance. This Bilstein B8 5100 shock provides a significant upgrade for lifted Ranger owners seeking enhanced suspension behavior across a range of conditions.
