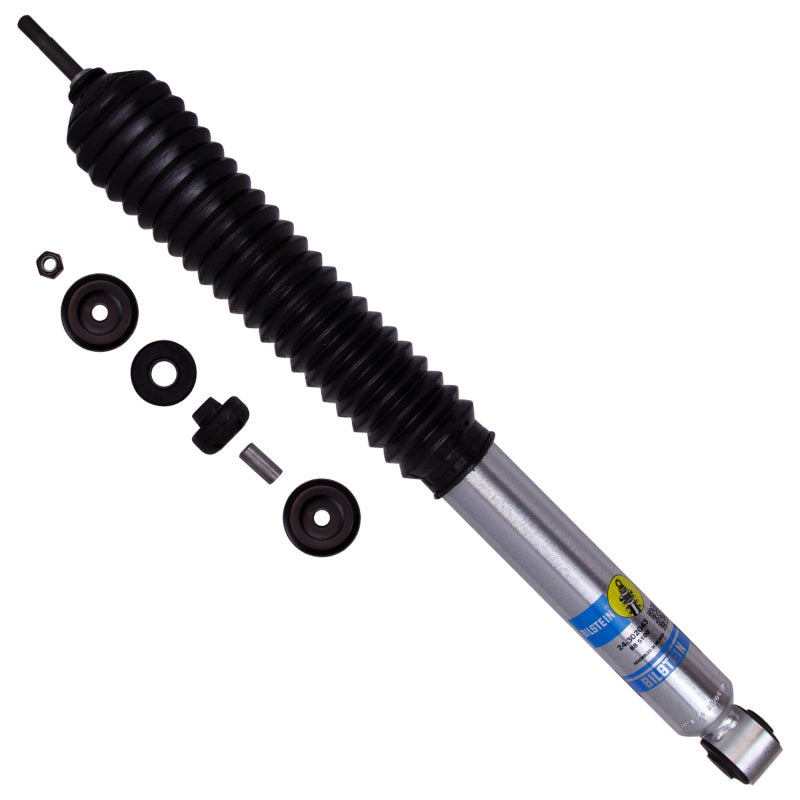

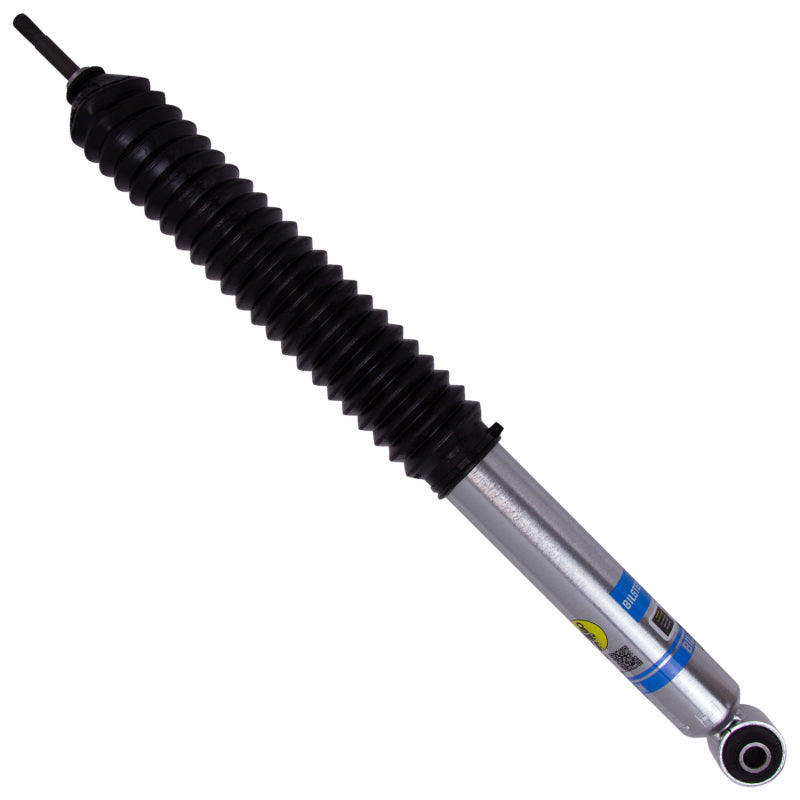

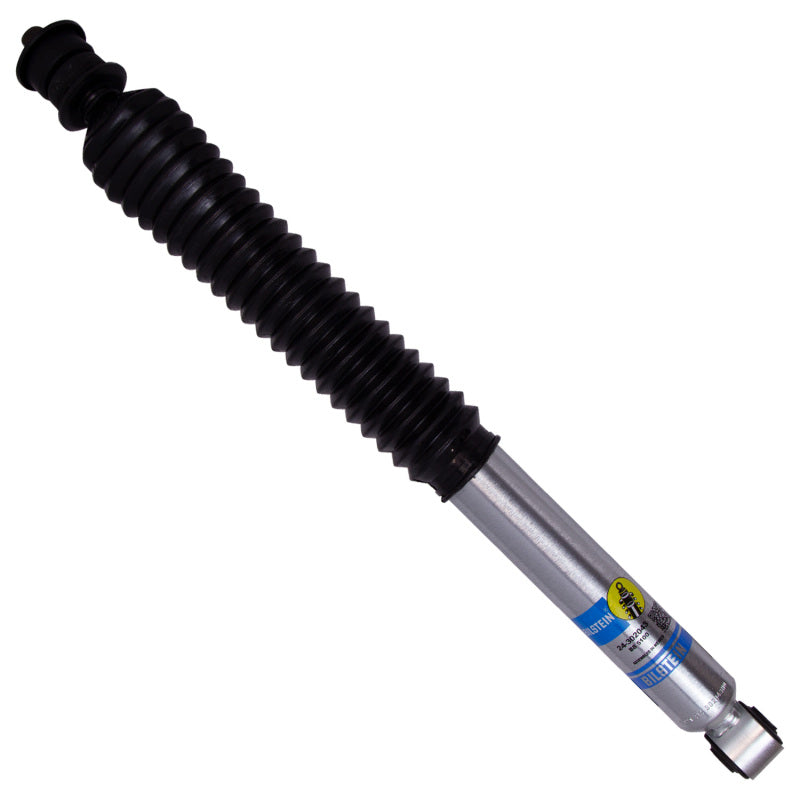

Bilstein 24-302043 B8 5100 Rear Shock for 2019-2026 Ram 2500 4WD 0-1in Rear Lift

Vehicle Fitment

• 2019-2026 Ram 2500 Tradesman (4WD, 6.4L HEMI V8, Without Factory Air Leveling Suspension)
• 2019-2026 Ram 2500 Big Horn / Lone Star (4WD, 6.4L HEMI V8, Without Factory Air Leveling Suspension)
• 2019-2026 Ram 2500 Laramie / Laramie Longhorn (4WD, 6.4L HEMI V8, Without Factory Air Leveling Suspension)
• 2019-2026 Ram 2500 Limited / Limited Longhorn (4WD, 6.4L HEMI V8, Without Factory Air Leveling Suspension)
• 2019-2026 Ram 2500 Rebel (4WD, 6.4L HEMI V8, Without Factory Air Leveling Suspension)
• 2019-2026 Ram 2500 Tradesman (4WD, 6.7L Cummins Diesel I6, Without Factory Air Leveling Suspension)
• 2019-2026 Ram 2500 Big Horn / Lone Star (4WD, 6.7L Cummins Diesel I6, Without Factory Air Leveling Suspension)
• 2019-2026 Ram 2500 Laramie / Laramie Longhorn (4WD, 6.7L Cummins Diesel I6, Without Factory Air Leveling Suspension)
• 2019-2026 Ram 2500 Limited / Limited Longhorn (4WD, 6.7L Cummins Diesel I6, Without Factory Air Leveling Suspension)
• 2019-2026 Ram 2500 Rebel (4WD, 6.7L Cummins Diesel I6, Without Factory Air Leveling Suspension)

Fitment Notes

• Designed for 0-1" rear lift applications. For 2" rear lift, use Bilstein 24-285681 instead.
• 4WD models only. Does not fit RWD Ram 2500.
• Does not fit Ram 2500 Power Wagon -- Power Wagon uses factory-installed Bilstein shocks with a different application.
• Does not fit models equipped with factory rear air leveling suspension.
• Sold as a single unit. Install in pairs for balanced rear axle performance.

Features

• Bilstein B8 5100 series -- specifically valved for Ram 2500 4WD trucks at stock height or with 0-1" of rear lift, delivering improved control, body stability, and off-road capability over the factory shock.
• 46mm monotube high-pressure gas design provides consistent, fade-free damping under towing, hauling, and off-road conditions.
• Velocity-sensitive digressive piston instantly adapts to changing road surfaces and load conditions for controlled ride quality.
• Application-specific valve tuning accounts for the Ram 2500's coil spring rear suspension and heavy-duty load requirements.
• Zinc-plated finish with Triple-C-Technology coating for superior corrosion and rust resistance in harsh environments.

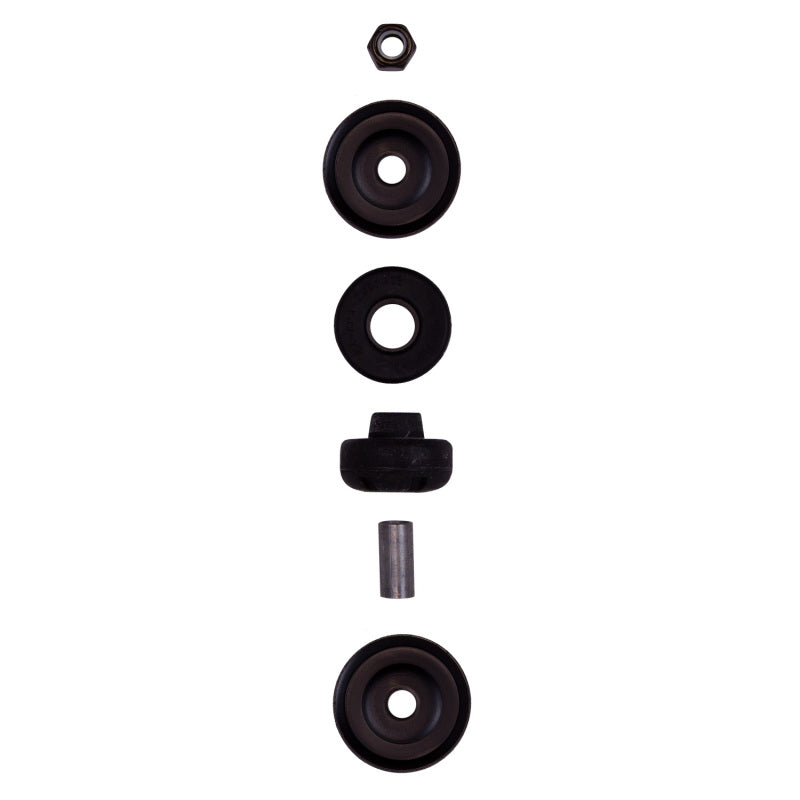

• Direct bolt-on installation using factory OE mounting hardware -- no modifications required.
• Backed by Bilstein's limited lifetime warranty for the original purchaser.

Specifications

• Part Number: 24-302043
• Series: B8 5100
• Position: Rear Axle
• Shock Absorber System: Monotube
• Shock Absorber Type: Gas Pressure
• Piston Diameter: 46mm
• Extended Length: 24.96 in.
• Collapsed Length: 16.48 in.
• Rear Lift Height: 0-1 inch
• Upper Mount Type: Stem
• Lower Mount Type: Eye 14.4mm
• Finish: Zinc Plated
• Boot Included: No

Included Components

• 1x Bilstein 24-302043 Rear B8 5100 Shock Absorber

Product Description

The Bilstein 24-302043 is a rear B8 5100 shock absorber built for 2019-2026 Ram 2500 4WD trucks running stock height or up to 1" of rear lift, without factory air leveling suspension. The B8 5100's off-road-oriented valve tuning delivers superior body control, reduced nose-dive during braking, and a more composed ride under towing and heavy-load conditions compared to the factory B6 4600-style street shock. The 46mm monotube gas-pressure design with nitrogen charge prevents oil foaming and ensures consistent damping performance even during extended heavy-duty use.

Installation is a direct bolt-on using factory mounting hardware with no modifications needed. For trucks at exactly stock height who prioritize on-road comfort, the Bilstein B6 4600 is the more appropriate choice; this B8 5100 is tuned for drivers who also off-road, tow heavy, or run slightly larger tires. For 2" of rear lift, Bilstein 24-285681 is the correct application. Always install in matched pairs for proper rear axle balance.
