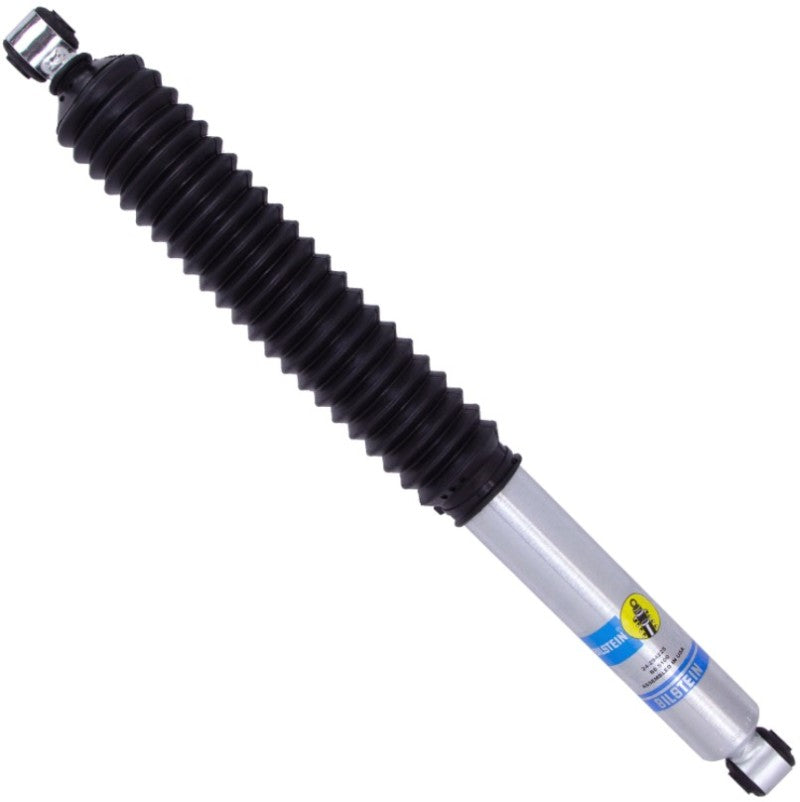

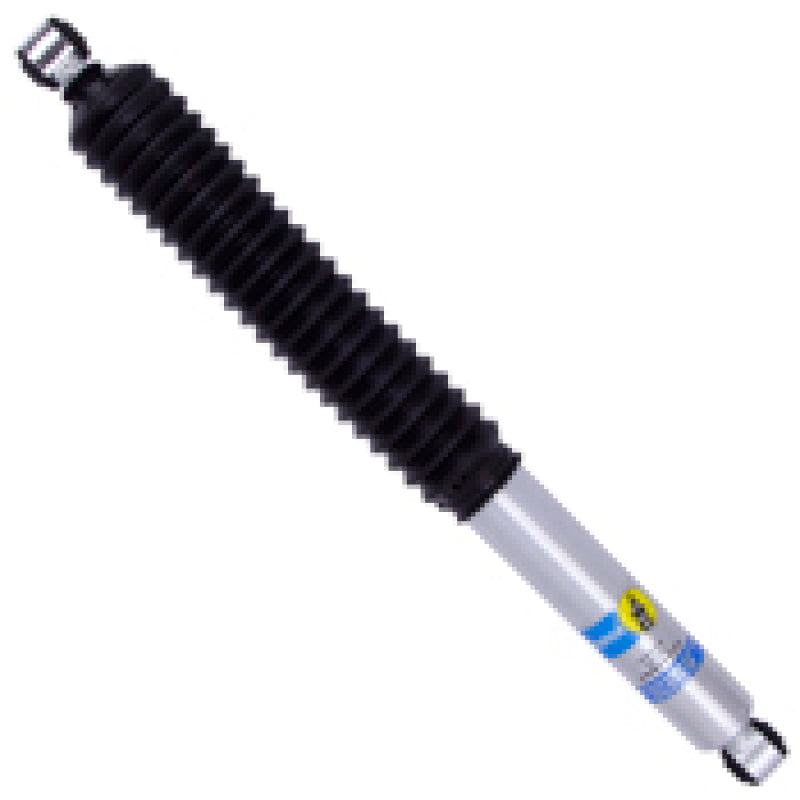

Bilstein 24-294225 B8 5100 Rear Shock for 2019-2023 Ford Ranger

Vehicle Fitment

• 2019-2023 Ford Ranger (All Trims, 2WD/4WD, Rear, Stock or ~0-1" Rear Lift)

Features

• Bilstein B8 5100 Series rear shock absorber with monotube gas-pressurized design
• Specifically valved for Ford Ranger rear suspension
• Velocity-sensitive digressive piston for responsive damping and control
• Improved ride quality and handling over factory rear shocks
• Durable corrosion-resistant zinc-plated finish
• Black bellows protective boot included
• Direct bolt-on replacement - no modifications required
• Enhanced performance on stock height or slight (~0-1") rear lift

Specifications

• Part Number: 24-294225
• Series: Bilstein B8 5100
• Position: Rear (Driver or Passenger Side)
• Internal Design: Monotube gas-pressurized
• Damping: Non-adjustable
• Body Diameter: ~46 mm
• Upper Mount Type: Eyelet (~12.1 mm)
• Lower Mount Type: Eyelet (~12.1 mm)
• Collapsed Length: ~15.55" (395 mm)
• Extended Length: ~24.71" (628 mm)
• Boot Included: Yes (Black bellows)
• Recommended Rear Lift: 0-1" tolerance

Included Components

• 1x Bilstein B8 5100 Rear Shock Absorber (24-294225)
• 1x Protective boot installed

Product Description

The Bilstein 24-294225 B8 5100 Rear Shock Absorber is engineered as a performance monotube gas-pressurized shock designed for the rear suspension of 2019 through 2023 Ford Ranger trucks. Tuned for both stock ride height and slight rear lift applications (about 0-1"), this shock features a velocity-sensitive digressive piston that responds quickly to changing road and load conditions. The monotube design offers improved heat dissipation and consistent damping, resulting in better handling, stability, and ride quality compared to standard factory rear shocks.

Installation is straightforward with direct bolt-on fitment to the original rear shock mounts, reusing factory hardware with no modifications required. The corrosion-resistant zinc finish and included black protective boot help extend service life. Sold individually, it's recommended to replace both rear shocks as a pair for balanced suspension performance. Ideal for daily driving, towing, and light off-road use, the 24-294225 enhances rear suspension control for Ford Ranger owners.
