Bilstein 24-268189 B8 5100 Adjustable Shock 0-2.2" Lift for 17-24 Nissan Titan

Vehicle Fitment

• 2017-2024 Nissan Titan 4WD
  2017-2024 Nissan Titan 2WD

Fitment Notes

• Fits Nissan Titan (non-XD) models only - does NOT fit Titan XD
• Compatible with all trim levels including S, SV, SL, Platinum Reserve, and Pro-4X
• Front position only - sold individually (pair required for complete front upgrade)
• Uses factory OE coil springs and upper mount for direct-fit installation
• Four adjustable ride height settings: Stock, +0.7", +1.2", +1.7", +2.2"
• Pro-4X models already have factory lift - additional lift may be reduced

Features

• Monotube design ensures consistent, fade-free performance in all conditions
• 46mm digressive piston with self-adjusting deflective disc valving
• High-pressure nitrogen gas charge for optimum damping performance
• Multiple snap-ring grooves allow adjustable spring seat positioning
• Split compression and rebound valving tuned specifically for Nissan Titan
• Practical alternative to coil spring spacers with superior ride quality
• Increased suspension travel compared to factory shocks
• Made in the USA at Bilstein's Hamilton, Ohio facility

Specifications

• Part Number: 24-268189
• Series: B8 5100 (Ride Height Adjustable)
• Position: Front
• Type: Monotube Gas Shock
• Lift Range: 0-2.2"
• Body Diameter: 46mm
• Body Material: 2" seamless extruded steel tube
• Body Finish: Zinc plated
• Piston Rod: 14mm centerless-ground, case-hardened, chromed, super-polished
• Extended Length: 15.31"
• Collapsed Length: 10.94"
• Travel: 4.37"
• Upper Mount: Stem
• Lower Mount: Eye (14mm)
• Reservoir: No
• Weight: 9.4 lbs
• UPC: 651860822969

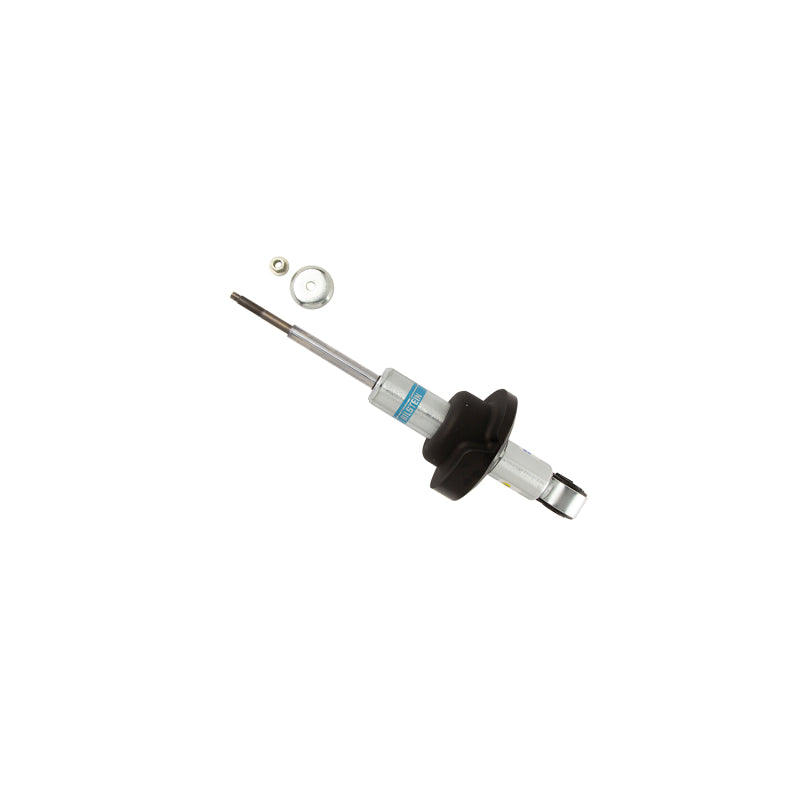

Included Components

• Bilstein B8 5100 ride height adjustable shock absorber
• Adjustable lower spring seat with snap ring
• Mounting hardware (washers, bushings, nuts)
• Installation instructions

Product Description

The Bilstein 24-268189 B8 5100 Ride Height Adjustable shock absorber is designed specifically for 2017-2024 Nissan Titan (non-XD) trucks. This front shock features Bilstein's innovative adjustable spring seat system with multiple snap-ring grooves, allowing you to level or lift the front of your Titan up to 2.2" over stock height using your factory coil springs. The 46mm monotube design with digressive piston and self-adjusting deflective disc valving delivers superior on-road handling and improved off-road capability compared to factory shocks. The high-pressure nitrogen gas charge ensures consistent performance without fade, while the zinc-plated finish provides excellent corrosion resistance. This updated part number includes a revised lower spring seat designed specifically for the 2017+ Titan platform. Made in the USA and backed by Bilstein's Limited Lif
