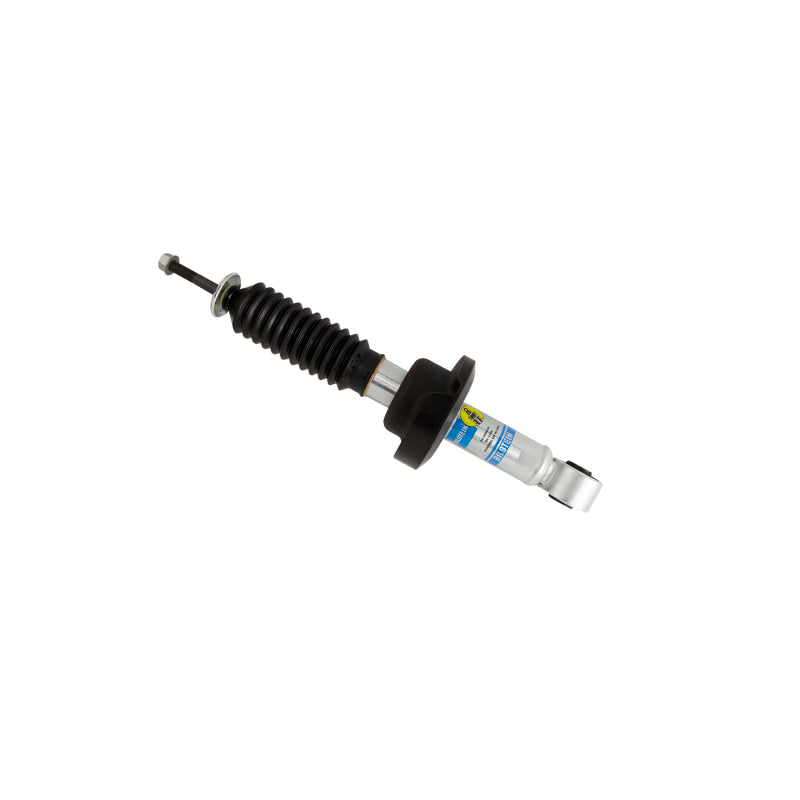

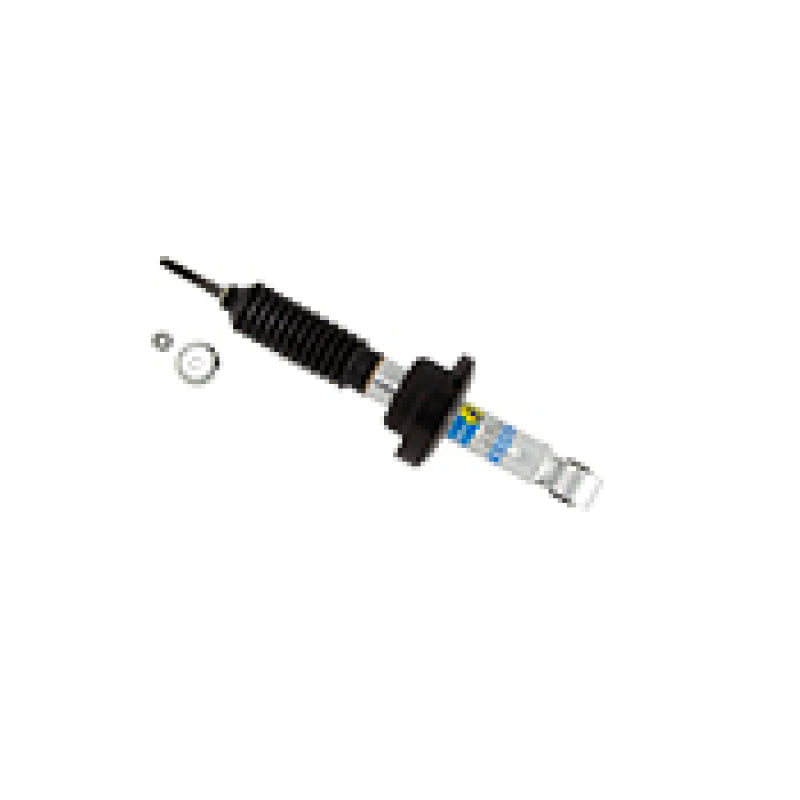

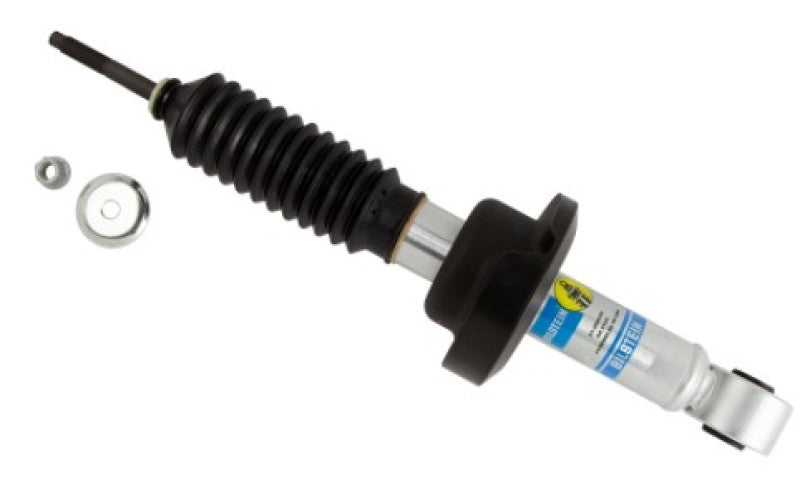

Bilstein 24-266659 B8 5100 Front Adjustable Shock for 16-24 Nissan Titan XD

Vehicle Fitment

• 2016-2024 Nissan Titan XD (Front, 2WD/4WD, Adjustable Height)

Features

• Bilstein B8 5100 Series front shock absorber with ride-height adjustment
• Multiple snap-ring grooves allow 0-2" front lift with OEM springs
• Monotube gas-pressurized design for consistent damping
• 46 mm digressive piston for improved handling and wheel control
• Increased wheel travel vs stock shocks
• Zinc plated finish for corrosion resistance
• Direct OE-style replacement - bolt-on fit
• Limited lifetime Bilstein warranty included

Specifications

• Part Number: 24-266659
• Series: Bilstein B8 5100 (Ride Height Adjustable)
• Position: Front (Driver or Passenger Side)
• Internal Design: Monotube gas pressurized
• Piston Diameter: 46 mm
• Extended Length: ~16.41" (416.9 mm)
• Collapsed Length: ~11.26" (286.1 mm)
• Upper Mount: Stem
• Lower Mount: Eye (16 mm)
• Spring Seat: Included - adjustable
• Adjustable Lift: 0 - 2" with OEM springs

Included Components

• 1x Bilstein B8 5100 Front Shock Absorber (24-266659)

Product Description

The Bilstein 24-266659 B8 5100 front shock absorber delivers both performance and ride-height flexibility for **2016-2024 Nissan Titan XD** trucks equipped with front coil-over style suspension. With multiple snap-ring grooves, this shock lets you achieve **0 - 2" of front lift** while retaining your OEM coil springs - making it a popular choice for leveling trucks or accommodating larger tires without using spacers.

Built with a robust **46 mm monotube design** and self-adjusting digressive piston, the 24-266659 offers improved handling, enhanced wheel travel, and more confident control compared to many stock shocks. Its corrosion-resistant finish and direct bolt-in design make installation straightforward. Sold **individually**, this shock is ideal for phased upgrades or matched pair installations for balanced suspension improvements.
