Bilstein 24-285674 B8 5100 Front Shock for 2013-2025 Ram 2500/3500 4WD 4" Lift

Vehicle Fitment

• 2013-2025 Ram 3500 (All Trims, 4WD, Front, ~4" Lift)
• 2014-2025 Ram 2500 (All Trims, 4WD, Front, ~4" Lift)

Features

• Bilstein B8 5100 Series monotube gas-pressurized shock absorber
• Designed for lifted 4WD heavy-duty trucks with ~4" front lift
• Velocity-sensitive digressive piston for dynamic damping response
• Smooth body monotube design for consistent performance and heat dissipation
• Durable zinc-plated finish for corrosion resistance
• Direct bolt-on replacement - no modification required
• Enhanced ride quality and control on lifted trucks
• Limited lifetime warranty from Bilstein

Specifications

• Part Number: 24-285674
• Series: Bilstein B8 5100
• Position: Front (Driver or Passenger Side)
• Internal Design: Monotube gas-pressurized
• Damping: Non-adjustable
• Body Diameter: 46 mm
• Upper Mount Type: Stem
• Lower Mount Type: Eyelet
• Collapsed Length: 16.57"
• Extended Length: 25.47"
• Boot Included: Yes (Black bellows)
• Recommended Ride Height: ~4" front lift

Included Components

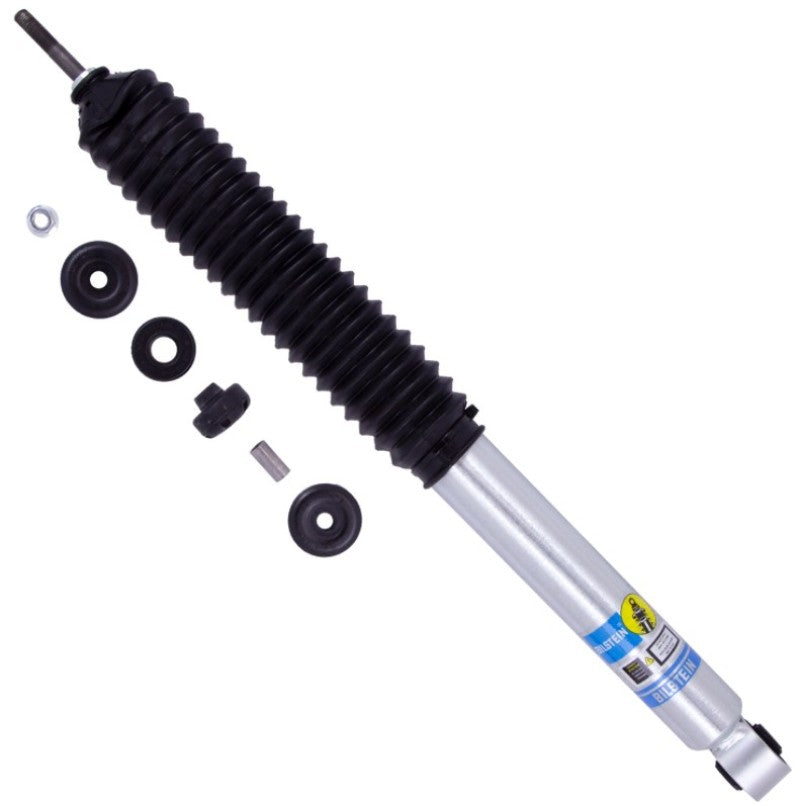

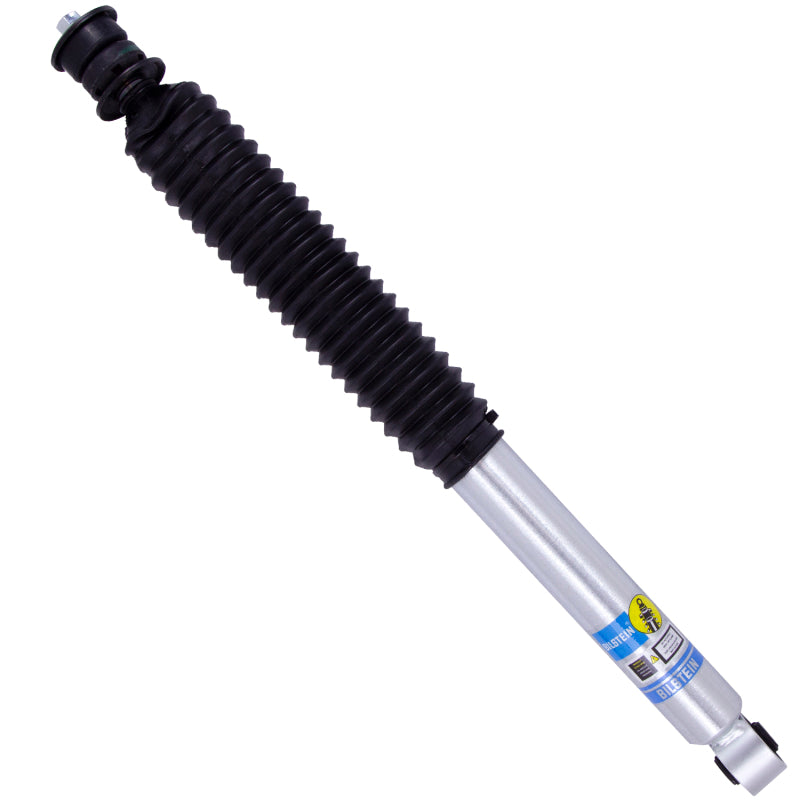

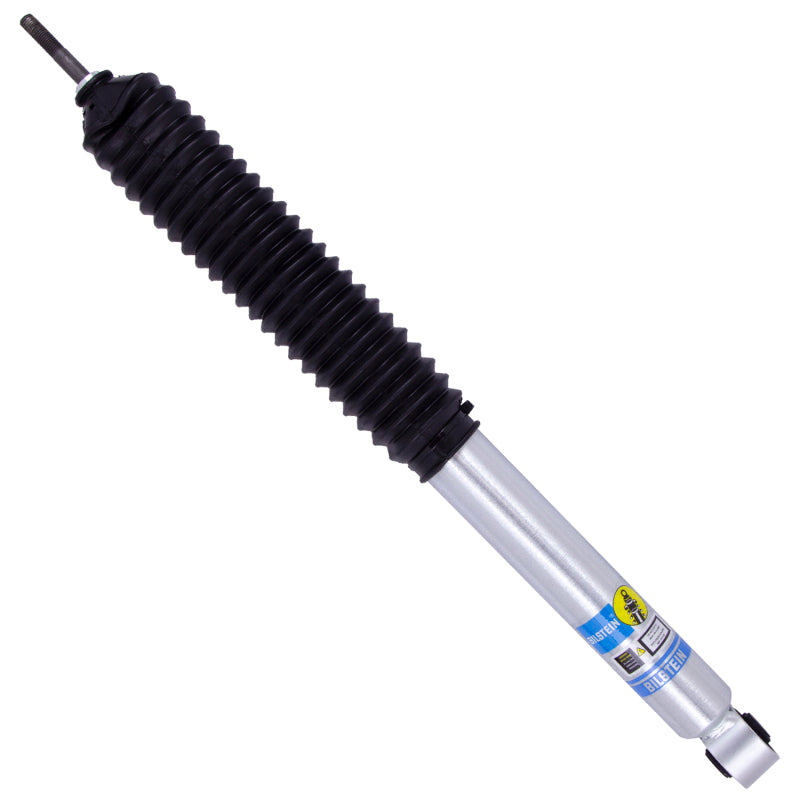

• 1x Bilstein B8 5100 Front Shock Absorber (24-285674)
• 1x Protective boot installed

Product Description

The Bilstein 24-285674 B8 5100 Front Shock is engineered as a performance monotube gas-pressurized shock for lifted 4WD Ram 2500 and 3500 heavy-duty trucks. Tuned for approximately a 4" front lift, this shock's velocity-sensitive digressive piston and 46 mm smooth body design deliver enhanced damping control, heat dissipation, and ride quality compared to standard factory shocks. The monotube design ensures consistent performance across diverse road conditions while resisting shock fade during demanding use.

Installation is straightforward with direct bolt-on fitment to the OE front mounting points - no trimming or modification required. The zinc-plated finish provides long-lasting corrosion resistance, and the included protective boot helps prolong service life in off-road and rough environments. Sold individually, it's recommended to install matching shocks on both front sides for balanced truck suspension performance.
