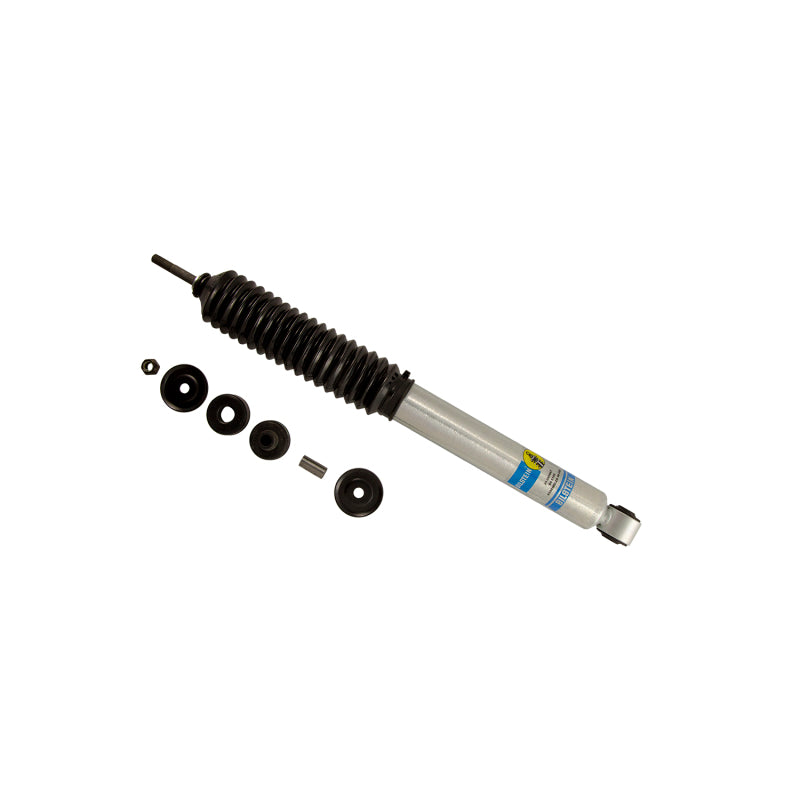

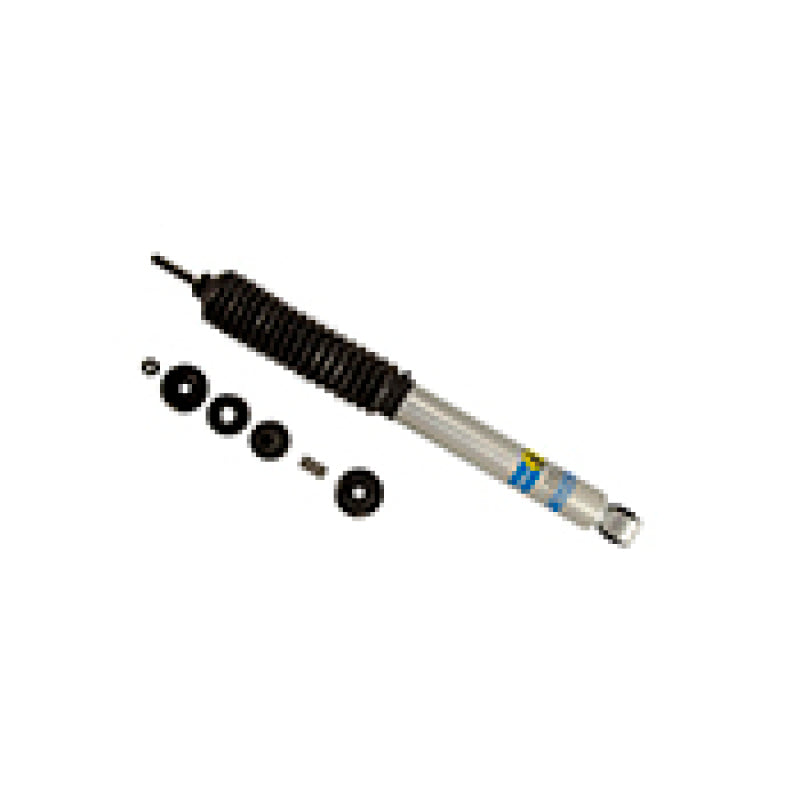

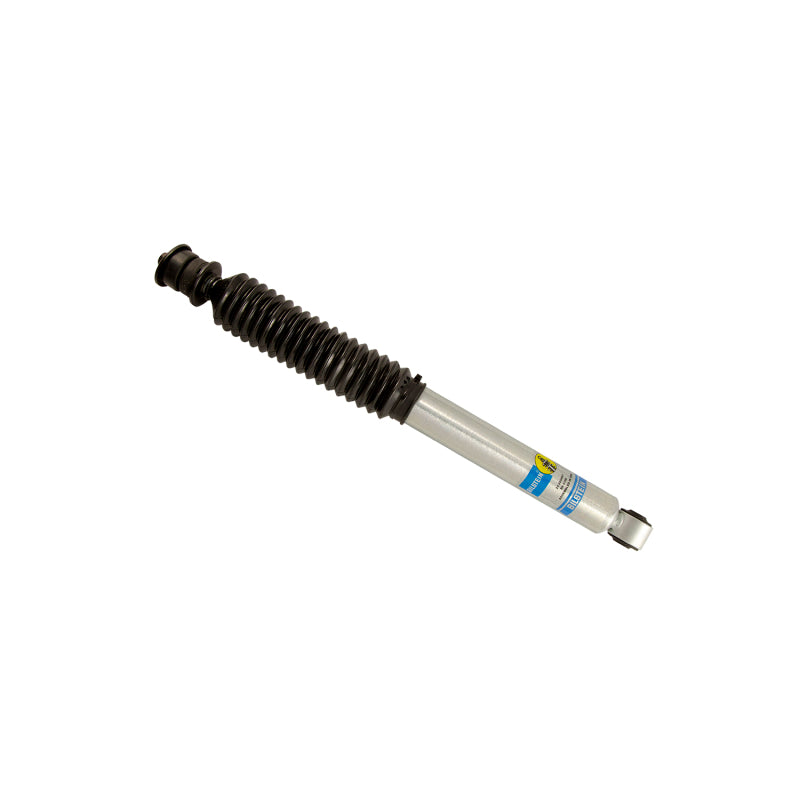

Bilstein 24-285667 B8 5100 Rear Shock for 2014-2018 Ram 2500 4WD Air Suspension

Vehicle Fitment

• 2014-2018 Ram 2500 Tradesman (4WD, 6.4L HEMI V8, With Factory Air Ride Suspension)
• 2014-2018 Ram 2500 Big Horn / Lone Star (4WD, 6.4L HEMI V8, With Factory Air Ride Suspension)
• 2014-2018 Ram 2500 Laramie (4WD, 6.4L HEMI V8, With Factory Air Ride Suspension)
• 2014-2018 Ram 2500 Laramie Longhorn (4WD, 6.4L HEMI V8, With Factory Air Ride Suspension)
• 2014-2018 Ram 2500 Limited (4WD, 6.4L HEMI V8, With Factory Air Ride Suspension)
• 2014-2018 Ram 2500 Tradesman (4WD, 6.7L Cummins Diesel I6, With Factory Air Ride Suspension)
• 2014-2018 Ram 2500 Big Horn / Lone Star (4WD, 6.7L Cummins Diesel I6, With Factory Air Ride Suspension)
• 2014-2018 Ram 2500 Laramie (4WD, 6.7L Cummins Diesel I6, With Factory Air Ride Suspension)
• 2014-2018 Ram 2500 Laramie Longhorn (4WD, 6.7L Cummins Diesel I6, With Factory Air Ride Suspension)
• 2014-2018 Ram 2500 Limited (4WD, 6.7L Cummins Diesel I6, With Factory Air Ride Suspension)

Fitment Notes

• Requires Factory Air Ride (Air Leveling) Suspension - does not fit Ram 2500 without factory air suspension (use Bilstein 24-239455 for non-air models).
• 4WD models only. Does not fit RWD Ram 2500.
• Does not fit Ram 2500 Power Wagon or Ram 3500.
• Valved for off-road and lifted applications - firmer than B6 4600 street-tuned shocks.
• Sold as a single unit. Install in pairs for balanced rear performance.

Features

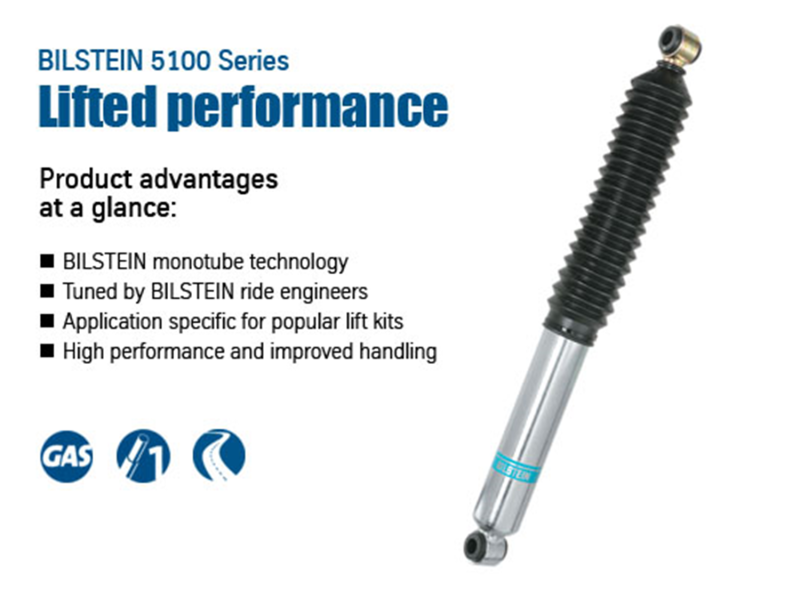

• Bilstein B8 5100 series - designed as a direct-fit solution for Ram 2500 4WD trucks equipped with factory air ride suspension.
• 46mm monotube high-pressure gas design provides consistent, fade-free damping under towing, hauling, and off-road conditions.
• Velocity-sensitive digressive piston instantly adapts to changing road surfaces for improved control and stability.
• Application-specific valve tuning ensures optimal performance for the Ram 2500's suspension geometry and load capacity.
• Zinc-plated finish for superior corrosion and rust resistance in harsh environments.
• Direct bolt-on fitment using OE mounting hardware - no modifications required.
• Backed by Bilstein's limited lifetime warranty for the original purchaser.

Specifications

• Part Number: 24-285667
• Series: B8 5100
• Position: Rear Axle
• Shock Absorber System: Monotube
• Shock Absorber Type: Gas Pressure
• Piston Diameter: 46mm
• Extended Length: 22.97 in.
• Collapsed Length: 16.56 in.
• Upper Mount Type: Stem
• Lower Mount Type: Eye 14.4mm
• Finish: Zinc Plated
• Boot Included: No

Included Components

• 1x Bilstein 24-285667 Rear B8 5100 Shock Absorber

Product Description

The Bilstein 24-285667 is a rear B8 5100 shock absorber engineered specifically for 2014-2018 Ram 2500 4WD trucks equipped with factory air ride (air leveling) suspension. Unlike standard OE replacement shocks, the B8 5100 features off-road-oriented valve tuning and extended piston travel, making it the ideal upgrade for trucks that tow, haul heavy loads, or tackle demanding terrain. The 46mm monotube design eliminates the risk of oil foaming and delivers consistent damping force even under sustained load - conditions where conventional twin-tube shocks can fade.

This shock is a direct bolt-on replacement using factory mounting hardware, requiring no fabrication or modifications. It is specifically built for the Ram 2500's air suspension chassis, and will not interchange with non-air suspension models. For a full rear upgrade, install as a matched pair. Drivers should expect a firmer, more controlled ride compared to the factory shock, particularly when loaded or off-road.
