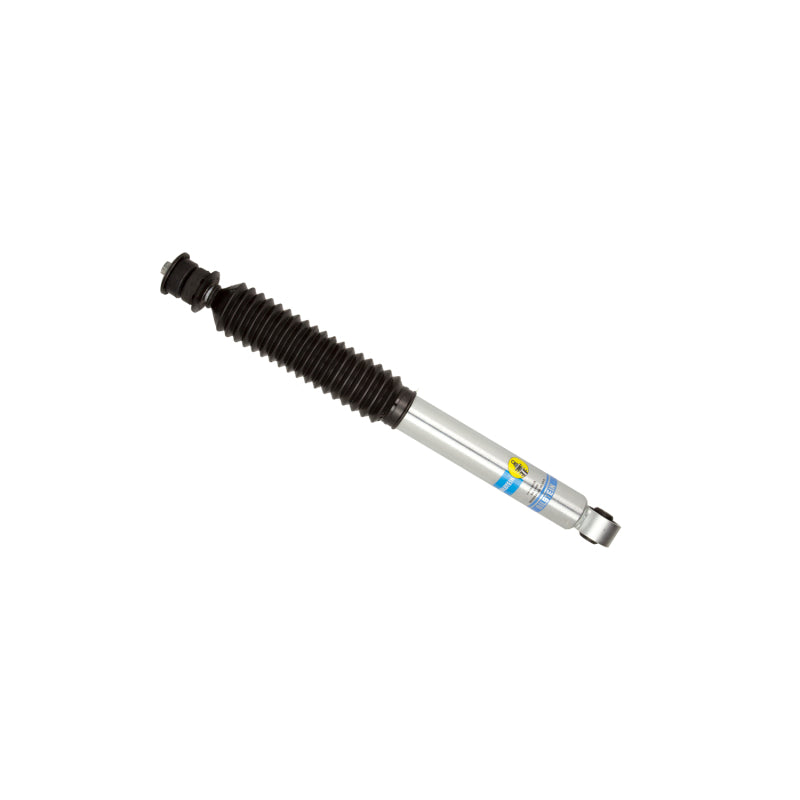

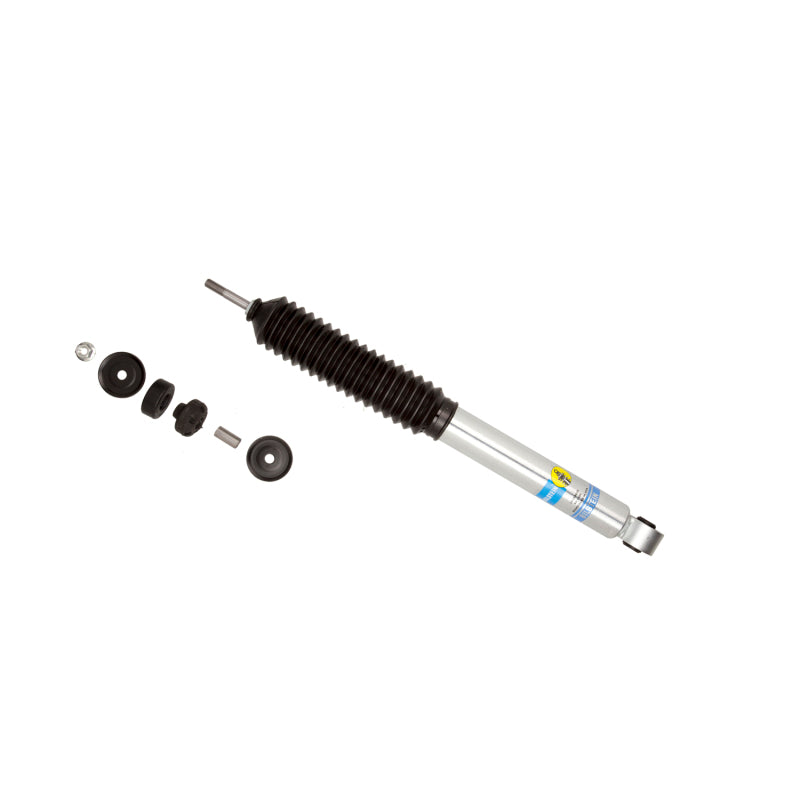

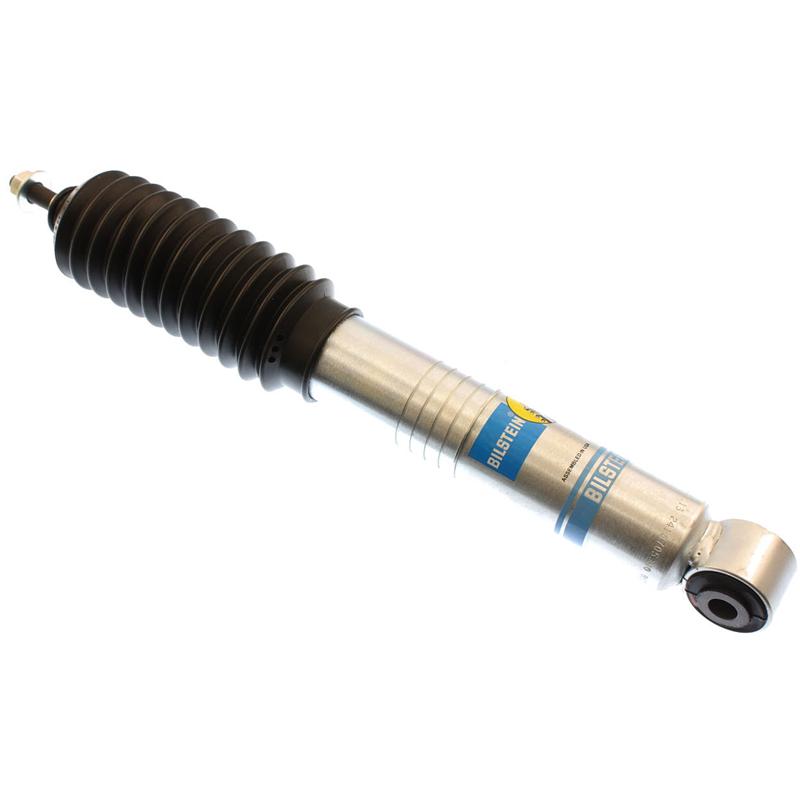

Bilstein 24-268639 B8 5100 Front Shock for 2014-2025 Ram 2500 4WD 2-2.5" Lift

Vehicle Fitment

• 2014-2025 Ram 2500 (4WD, All Trims, 5.7L V8 Gas / 6.4L V8 Gas / 6.7L I6 Diesel)

Fitment Notes

• Front axle only -- for vehicles with 2-2.5" front lift
• 4WD models only -- does not fit 2WD Ram 2500
• Sold individually -- order 2 for a complete front axle replacement
• For stock-height vehicles, use Bilstein 4600 series

Features

• Bilstein B8 5100 series -- purpose-built for lifted trucks and SUVs
• Monotube design -- consistent, fade-free performance under sustained use
• Velocity-sensitive digressive piston -- automatically adjusts to changing road conditions
• Split compression and rebound valving -- tuned specifically for Ram 2500 application
• 46mm Bilstein digressive piston -- largest available diameter for maximum control
• 14mm centerless-ground, case-hardened, chromed, and super-polished piston rod
• 2-inch seamless extruded body tube
• Self-adjusting deflective-disc independent rebound and compression
• Zinc-plated finish -- corrosion resistant
• Includes black bellows boot

Specifications

• Position: Front
• Series: B8 5100
• Design: Monotube, smooth body (non-coilover)
• Body diameter: 2.0 in. (OD)
• Piston diameter: 46mm
• Piston rod diameter: 14mm
• Collapsed length: 15.03 in. (382mm)
• Extended length: 22.63 in. (575mm)
• Stroke / travel: 7.60 in.
• Upper mount type: Stem
• Lower mount type: Eye (14.1mm)
• Reservoir: None
• Finish: Zinc plated
• Boot: Black bellows (included)
• Lift compatibility: 2-2.5 in. front lift
• Replacement mounting kit: B4-KT1-Z223A02 (sold separately)
• UPC: 651860795669

Included Components

• 1x Bilstein B8 5100 front shock absorber
• 1x Black bellows boot

Product Description

The Bilstein 24-268639 is a B8 5100 series monotube front shock absorber built specifically for 2014-2025 Ram 2500 4WD trucks running 2-2.5 inches of front lift. Unlike the OEM 4600-series replacement shocks designed for stock-height trucks, the 5100 series accounts for the increased suspension travel that comes with a leveling kit or mild lift, keeping the shock operating in its designed range rather than at the limits of its stroke. The monotube construction separates gas and oil into distinct chambers, eliminating aeration and maintaining consistent damping regardless of heat buildup from sustained off-road use or highway driving.

Bilstein's 46mm digressive piston and split compression/rebound valving are tuned per application -- not generic -- delivering improved ride quality, reduced body roll, and better handling response compared to both worn OEM shocks and generic aftermarket alternatives. Fits all 2014-2025 Ram 2500 4WD powertrains including the 5.7L V8 gas, 6.4L V8 gas, and 6.7L Cummins diesel. Sold individually.
