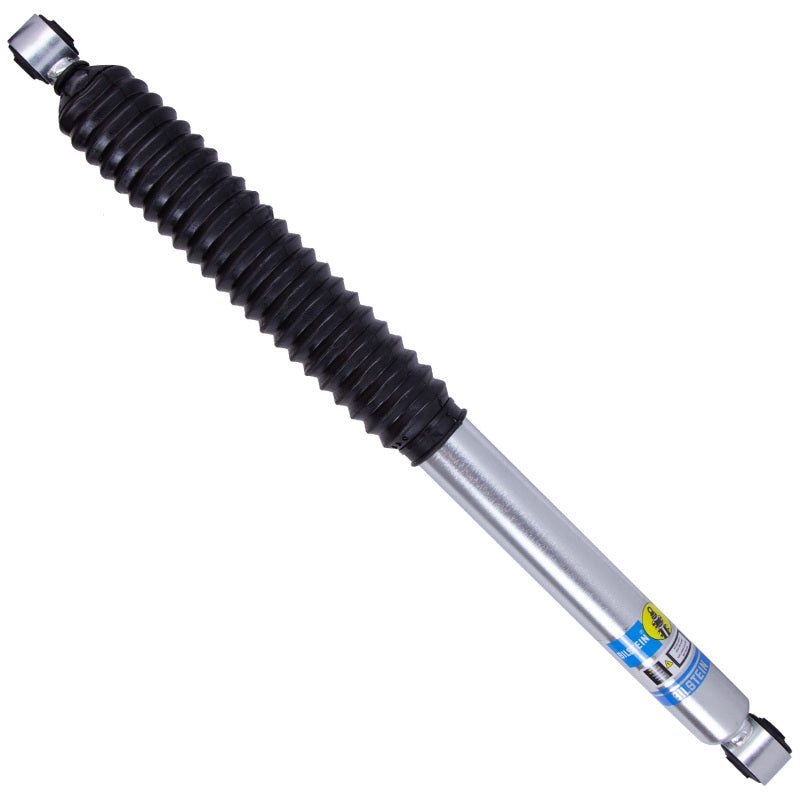

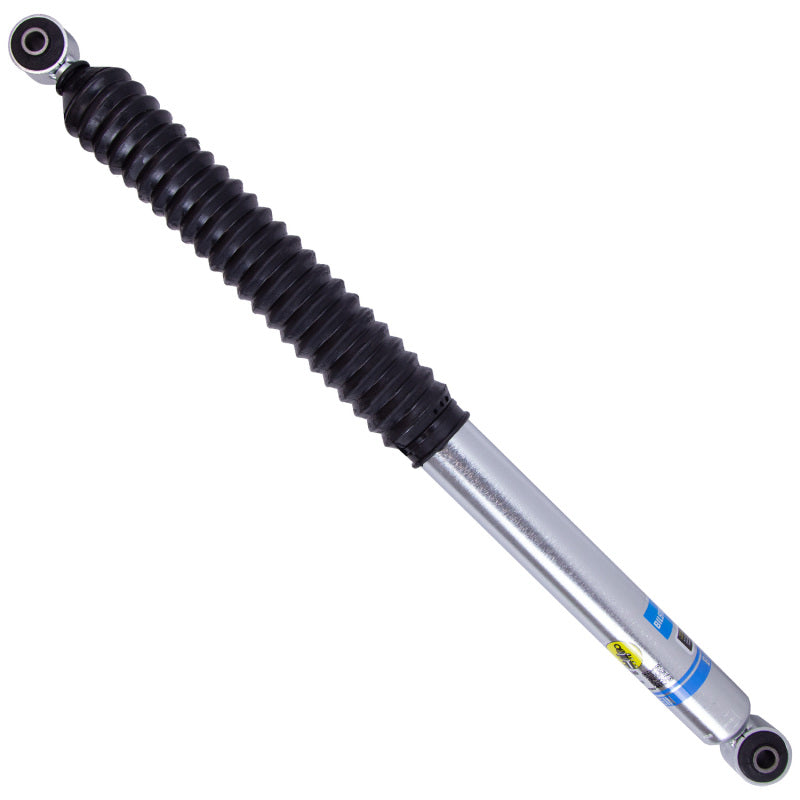

Bilstein 24-285780 B8 5100 Rear Shock for 2013-2025 Ram 3500 4WD/RWD 2-3in Lift

Vehicle Fitment

• 2013-2025 Ram 3500 Tradesman (4WD, 6.4L HEMI V8, Without Factory Air Leveling Suspension)
• 2013-2025 Ram 3500 Big Horn / Lone Star (4WD, 6.4L HEMI V8, Without Factory Air Leveling Suspension)
• 2013-2025 Ram 3500 Laramie (4WD, 6.4L HEMI V8, Without Factory Air Leveling Suspension)
• 2013-2025 Ram 3500 Laramie Longhorn / Longhorn (4WD, 6.4L HEMI V8, Without Factory Air Leveling Suspension)
• 2013-2025 Ram 3500 Limited (4WD, 6.4L HEMI V8, Without Factory Air Leveling Suspension)
• 2013-2025 Ram 3500 Tradesman (4WD, 6.7L Cummins Diesel I6, Without Factory Air Leveling Suspension)
• 2013-2025 Ram 3500 Big Horn / Lone Star (4WD, 6.7L Cummins Diesel I6, Without Factory Air Leveling Suspension)
• 2013-2025 Ram 3500 Laramie (4WD, 6.7L Cummins Diesel I6, Without Factory Air Leveling Suspension)
• 2013-2025 Ram 3500 Laramie Longhorn / Longhorn (4WD, 6.7L Cummins Diesel I6, Without Factory Air Leveling Suspension)
• 2013-2025 Ram 3500 Limited (4WD, 6.7L Cummins Diesel I6, Without Factory Air Leveling Suspension)
• 2013-2025 Ram 3500 Tradesman (RWD, 6.4L HEMI V8 / 6.7L Cummins Diesel I6, Without Factory Air Leveling Suspension)
• 2013-2025 Ram 3500 Big Horn / Lone Star (RWD, 6.4L HEMI V8 / 6.7L Cummins Diesel I6, Without Factory Air Leveling Suspension)
• 2013-2025 Ram 3500 Laramie / Laramie Longhorn / Limited (RWD, 6.4L HEMI V8 / 6.7L Cummins Diesel I6, Without Factory Air Leveling Suspension)

Fitment Notes

• Designed for 2-3" rear lift applications only. For 0-1" rear lift, use Bilstein 24-302326 instead.
• Does not fit models equipped with factory rear air leveling suspension.
• Does not fit Ram 3500 Cab & Chassis configurations.
• Fits both 4WD and RWD Ram 3500 standard cab body styles.
• Sold as a single unit. Install in pairs for balanced rear axle performance.

Features

• Bilstein B8 5100 series - engineered for Ram 3500 trucks running 2-3" rear lift kits, delivering improved handling and stability over factory shocks.
• 46mm monotube high-pressure gas design provides consistent, fade-free damping under heavy towing, hauling, and off-road conditions.
• Velocity-sensitive digressive piston instantly adapts to changing road surfaces for controlled ride quality at all speeds.
• Extended piston travel designed to accommodate 2-3" rear lift geometry for optimal suspension performance.
• Application-specific valve tuning accounts for the Ram 3500's load capacity, coil suspension, and lift height.
• Zinc-plated finish provides superior corrosion resistance for harsh environments and heavy-use conditions.
• Backed by Bilstein's limited lifetime warranty for the original purchaser.

Specifications

• Part Number: 24-285780
• Series: B8 5100
• Position: Rear Axle
• Shock Absorber System: Monotube
• Shock Absorber Type: Gas Pressure
• Piston Diameter: 46mm
• Extended Length: 29.88 in.
• Collapsed Length: 19.57 in.
• Rear Lift Height: 2-3 inches
• Upper Mount Type: Stem
• Lower Mount Type: Eye 14.4mm
• Finish: Zinc Plated
• Boot Included: No

Included Components

• 1x Bilstein 24-285780 Rear B8 5100 Shock Absorber

Product Description

The Bilstein 24-285780 is a rear B8 5100 shock absorber built specifically for 2013-2025 Ram 3500 4WD and RWD trucks running 2-3" rear lift setups without factory air leveling suspension. With extended piston travel matched to the altered suspension geometry of a lifted 3500, this shock delivers the handling confidence and body control that the stock damper simply cannot provide once the truck is raised. The 46mm monotube gas-pressure design eliminates oil foaming and maintains consistent damping force under the heavy loads and demanding conditions that Ram 3500 owners regularly encounter.

Installation uses OE mounting hardware with no modifications required, making this a straightforward upgrade for lifted trucks used for towing, off-road work, or daily hauling. For trucks at stock height or with only 0-1" of rear lift, Bilstein 24-302326 is the correct application. As with all B8 5100 shocks, this unit is valved on the firmer side compared to the street-oriented B6 4600, which is the intentional trade-off for improved off-road and load-carrying performance.
