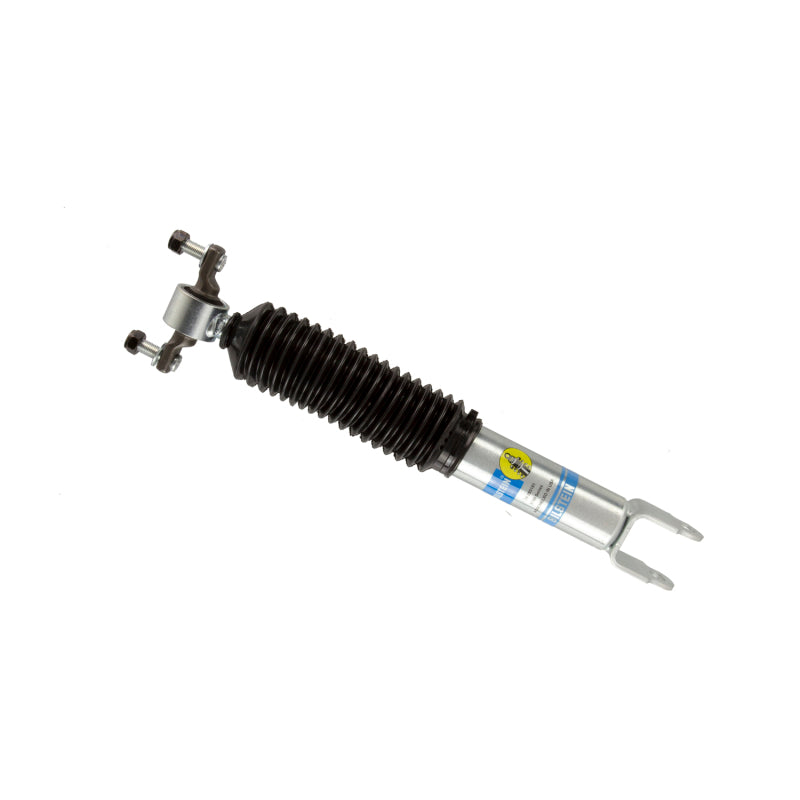

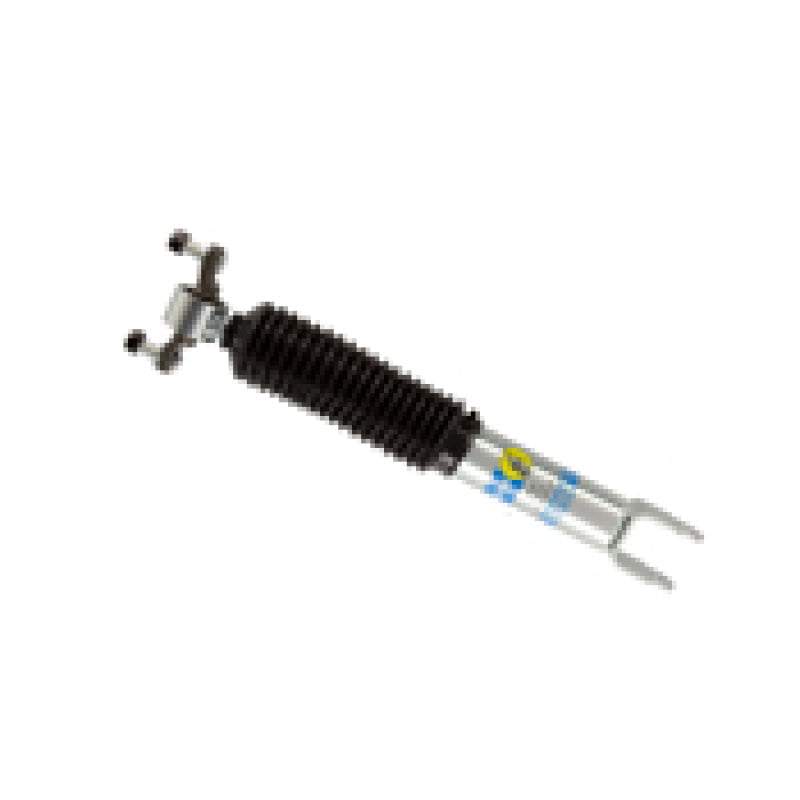

Bilstein 24-253161 B8 5100 Front Shock 0-1.5" Lift for 2011-25 Chevy/GMC 2500HD

Regular price: $123.00
Regular price: ~~$171.85~~
Sale price: $123.00

Shipping calculated at checkout.

In Stock: 1915

Orders by 1pm PST ship same business day

Free Shipping w/3-4 Day Delivery

Authorized Dealer

Fitment Guarantee

30-Day Hassle Free Returns

Product Specification:

SKU:BIL24-253161

MPN: 24-253161

UPC: 651860772776

Weight: 5.8 lb

Inventory: 1915

Type: Shocks and Struts

Vehicle Fitment

2011-2025 Chevrolet Silverado 2500HD/3500HD & GMC Sierra 2500HD/3500HD (Front, 2WD/4WD, 0-1.5" level lift, all trims)

Features

Ride-height adjustable (0-1.5") via snap-ring spring collar
46 mm high-pressure monotube design for fade resistance
Velocity-sensitive digressive piston improves control
Zinc-plated body with clear coat for corrosion protection
Black bellows boot shields piston rod
Specifically valved for lifted HD truck geometry
Includes factory-grade mounting hardware
Direct bolt-on replacement - no modifications needed

Specifications

Position: Front
Extended length: 18.43"; Compressed: 14.06"; Travel: 4.37" :contentReference[oaicite:3]{index=3}
Body diameter: 46 mm monotube :contentReference[oaicite:4]{index=4}
Mount type: Crossbar top, clevis bottom :contentReference[oaicite:5]{index=5}
Lift range: 0-1.5" front lift :contentReference[oaicite:6]{index=6}
Finish: Zinc-plated body, clear coat :contentReference[oaicite:7]{index=7}
Boot: Black bellows :contentReference[oaicite:8]{index=8}
Internal: Nitrogen-charged monotube with velocity-sensitive piston :contentReference[oaicite:9]{index=9}
Warranty: Limited lifetime (North America) :contentReference[oaicite:10]{index=10}
Origin: Made in MX (Mexico), not China :contentReference[oaicite:11]{index=11}

Included Components

1x Bilstein 24-253161 front B8 5100 monotube shock
1x Black bellows protective boot
1x Zinc snap-ring spring collar
1x Upper crossbar bushing
1x Lower clevis bushing
Factory-grade washers, nuts, reservoir clamps :contentReference[oaicite:12]{index=12}

Product Description

The Bilstein B8 5100 Front Shock (24-253161) is a premium, ride-height adjustable monotube absorber designed for 2011-2025 Chevy Silverado and GMC Sierra 2500/3500 HD trucks. It provides a front lift of up to 1.5" using a snap-ring collar while preserving OEM handling and on-road manners. The 46 mm monotube and velocity-sensitive valving reduce fade and improve ride control under towing, hauling, or off-road conditions.

Featuring a corrosion-resistant zinc-plated body and black bellows boot, this shock is built to endure rugged use. The monotube design, matched valving for lifted HD geometry, and full mounting hardware make installation straightforward with no modification. Manufactured in Mexico and backed by Bilstein's limited lifetime warranty, it offers durability, performance, and OEM-level reliability for lifted heavy-duty Silverado/Sierra owners.
