Bilstein 24-267014 B8 5100 Front Ride Height Adjustable Shock for02-09 Chevy/GMC

Vehicle Fitment

• 2002-2009 Chevrolet Trailblazer (All trims, 4WD)
• 2002-2006 Chevrolet Trailblazer EXT (All trims, 4WD)
• 2004-2007 Buick Rainier (All trims, 4WD)
• 2002-2009 GMC Envoy (All trims, 4WD)
• 2002-2006 GMC Envoy XL (All trims, 4WD)
• 2003-2008 Isuzu Ascender (All trims, 4WD)
• 2002-2004 Oldsmobile Bravada (All trims, 4WD)
• 2005-2009 Saab 9-7x (All trims, 4WD)

Features

• Ride height adjustable from 0" to 2.25" using factory coil springs
• Monotube design for consistent fade-free performance
• 46mm digressive piston with self-adjusting deflective disc valve
• High-pressure nitrogen gas charge for optimum shock performance
• Improves on-road comfort and off-road handling
• Direct replacement for factory front shocks
• Durable zinc-coated steel construction

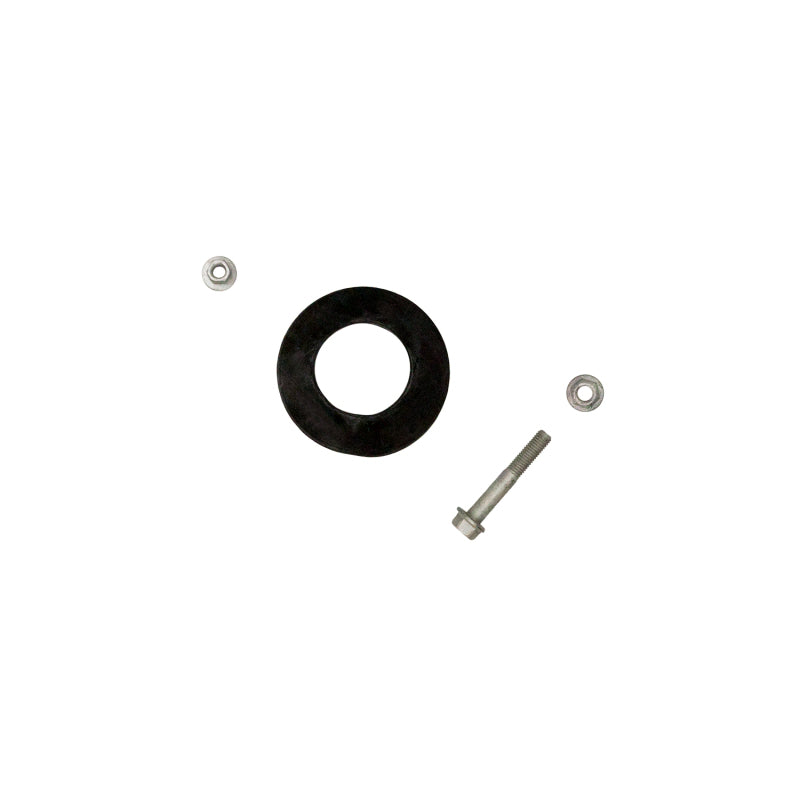

• Includes washers, bushings, and nuts for installation

Specifications

• Shock Type: Monotube
• Adjustable Lift: 0" to 2.25" front
• Body Diameter: 46mm
• Material: Zinc-coated steel
• Gas Charge: High-pressure nitrogen
• Position: Front
• Drivetrain Compatibility: 4WD only

Included Components

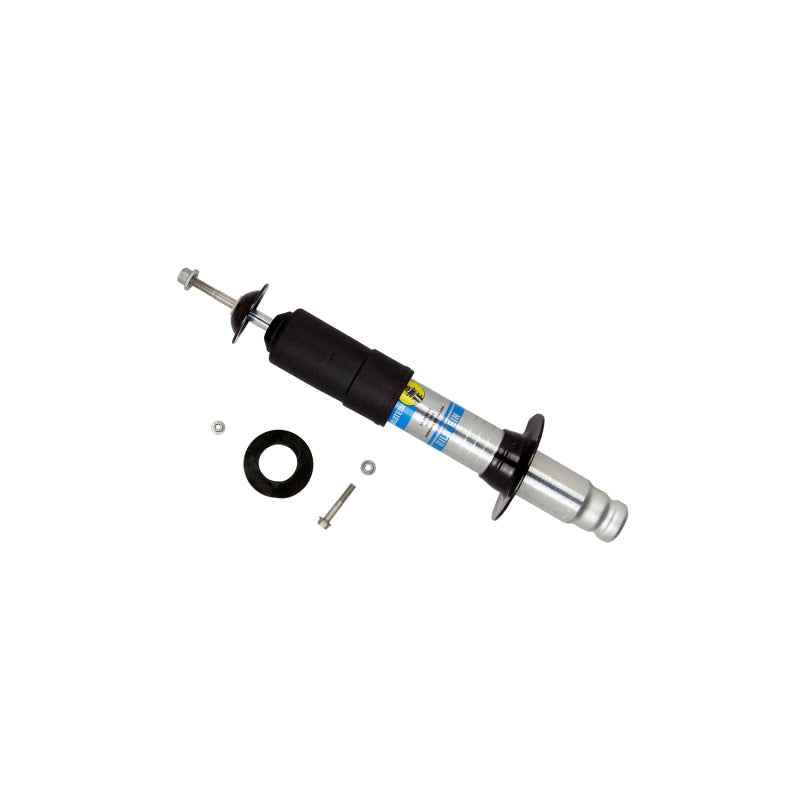

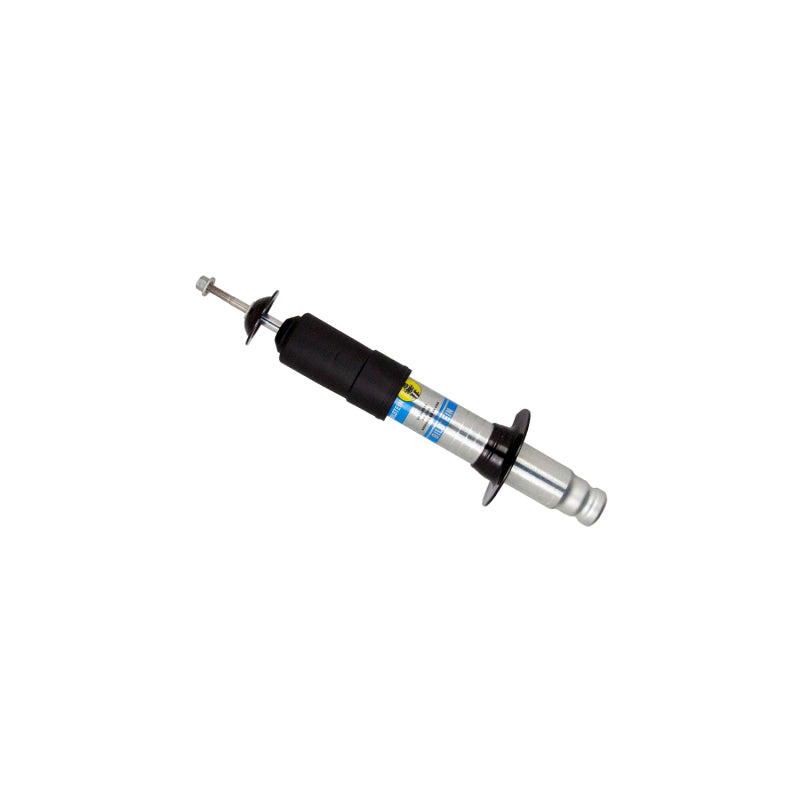

• 1x Bilstein 24-267014 Front B8 5100 Ride Height Adjustable Shock
• 1x Spring seat
• 1x Dust boot
• 1x Bump stop
• 1x Upper mounting hardware kit
• 1x Lower mounting hardware kit

Product Description

The Bilstein 24-267014 B8 5100 front shock absorber is designed for 2002-2009 Chevy, GMC, Isuzu, Oldsmobile, and Saab models with factory front coil springs. It provides an adjustable front ride height lift of up to 2.25", allowing you to improve ground clearance and maintain proper suspension geometry without the need for additional lift kits.

Built with Bilstein's proven monotube design and a 46mm digressive piston, this shock delivers reliable, fade-free damping performance both on- and off-road. The high-pressure nitrogen gas charge enhances handling precision and ride comfort, making it ideal for daily driving and light off-road use.

Installation is straightforward with reuse of factory mounting bolts and includes all necessary hardware, spring seats, and protective boots. This part is intended for 4WD models only and fits all trims within the listed years.
