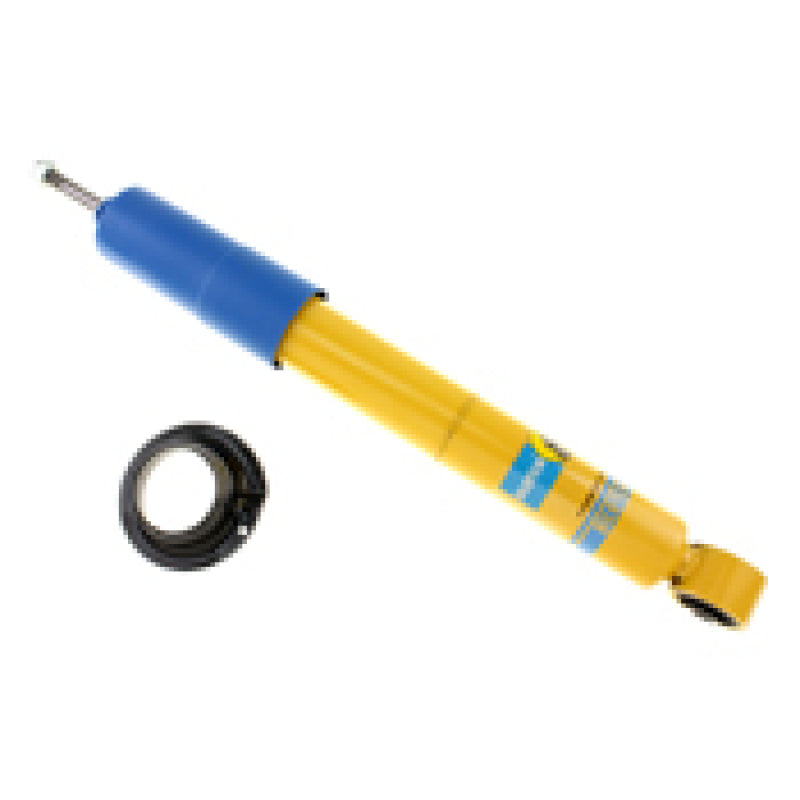

Bilstein 24-022842 B6 4600 Front Shock for 1995-2004 Toyota Tacoma 4WD 6-Lug

The Bilstein 24-022842 original monotube shock, engineered for stability and control for trucks, motorhomes and daily drivers on rough roads. The B6 Heavy Duty 4600 monotube design eliminates aeration and keeps your Toyota Tacoma tires glued to the road, and is the same shock used in NASCAR Super Trucks and SCORE and PRO-TRUCK competitions. Limited lifetime warranty against manufacturer defects.

Bilstein B6 4600 24-022842

Upper Mount Type - StemLower Mount Type - Eye 14.2mm

Vehicle

Position

Notes

Year

Toyota Tacoma Base 4WD 2.7L

Front

1996-2004

Toyota Tacoma Base 4WD 3.4L

Front

1996-2004

Toyota Tacoma Limited

Front

1998-2000

Toyota Tacoma Pre Runner

Front

1998-2004

Toyota Tacoma SR5

Front

1995-1997

Toyota Tacoma SR5 4WD 2.7L

Front

1998-2000

Toyota Tacoma SR5 4WD 3.4L

Front

1998-2000

Vehicle Fitment

1995-2004 Toyota Tacoma 4WD (6-Lug)
1995-2004 Toyota Tacoma 2WD PreRunner (6-Lug)

Fitment Notes

• Front position only--sold individually
• Fits 6-lug models only--does NOT fit 5-lug 2WD base models
• For stock height vehicles only
• Upper bushings NOT included--reuse OE bushings or purchase separately

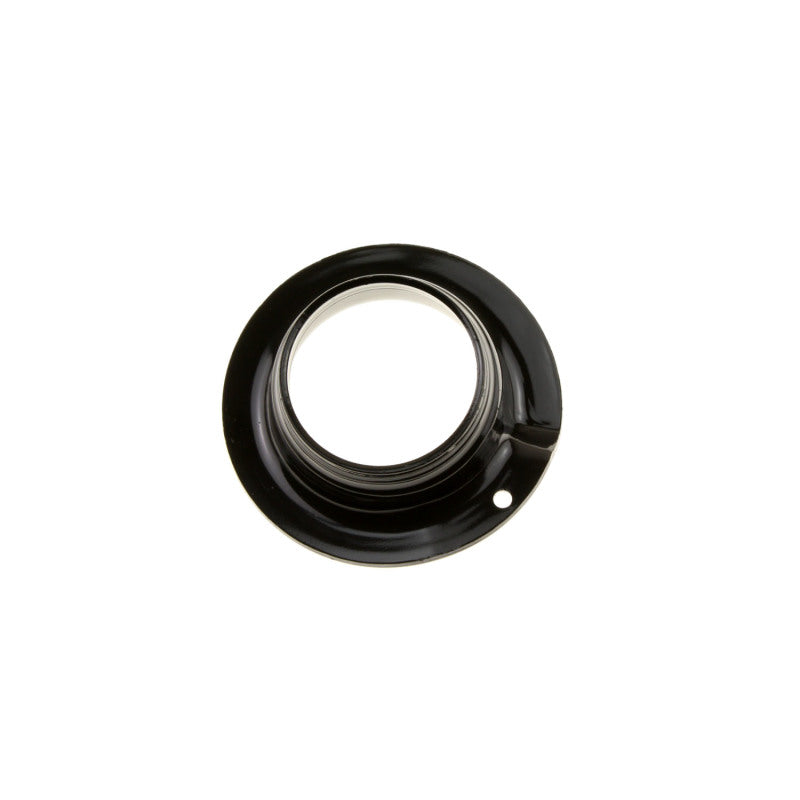

• Lower spring seat included
• Same shock fits driver and passenger side
• Replaces OE part numbers 48510-A9050, 48510-09270

Features

• 46mm monotube design provides consistent fade-free performance
• Velocity-sensitive digressive piston reacts to changing road conditions
• Monotube gas pressure technology prevents oil foaming under high temperatures and loads
• Application-specific valving tuned for optimal Tacoma performance
• Direct-fit OE upgrade requires no modifications
• Improved ride quality, handling, and comfort over stock shocks
• Larger working piston area for increased damping power
• Superior heat dissipation compared to twin-tube designs
• Corrosion-resistant yellow zinc finish
• Protective black dust boot included

Specifications

• Series: B6 4600
• Position: Front
• Internal Design: Monotube
• Body Diameter: 46mm
• Extended Length: 18.41"
• Compressed Length: 13.7"
• Rod Diameter: 1.81"
• Upper Mount Type: Stem
• Lower Mount Type: Eye (14.2mm)
• Damping Adjustment: Non-adjustable
• Finish: Yellow paint
• Boot: Black straight boot included
• Spring Seat: Included

Included Components

• Bilstein 24-022842 front shock absorber (1)
• Lower spring seat
• Dust boot

Product Description

The Bilstein 24-022842 is a B6 4600 Series front shock absorber engineered as a direct-fit upgrade for 1995-2004 Toyota Tacoma 4WD and PreRunner models with 6-lug wheels. Bilstein's patented monotube gas pressure technology delivers superior damping performance that remains consistent even under extreme temperatures and heavy loads. The 46mm body diameter provides a larger working piston area than OE twin-tube designs, resulting in increased damping power and better heat dissipation. The velocity-sensitive digressive piston automatically adjusts damping force based on road conditions, providing a smooth ride on highways while maintaining firm control over rough terrain. Each B6 4600 shock is specifically valved for the Tacoma platform to optimize the balance between ride comfort and vehicle control. The monotube construction allows the shock to be mounted in any position without performance degradation, and the pressurized gas charge prevents oil cavitation during rapid suspension movements. Over 40% of Bilstein's production personnel are dedicated to quality control, ensuring every shock meets exacting standards. Backed by Bilstein's Lifetime Limited Warranty for the original purchaser. Made in Germany.
