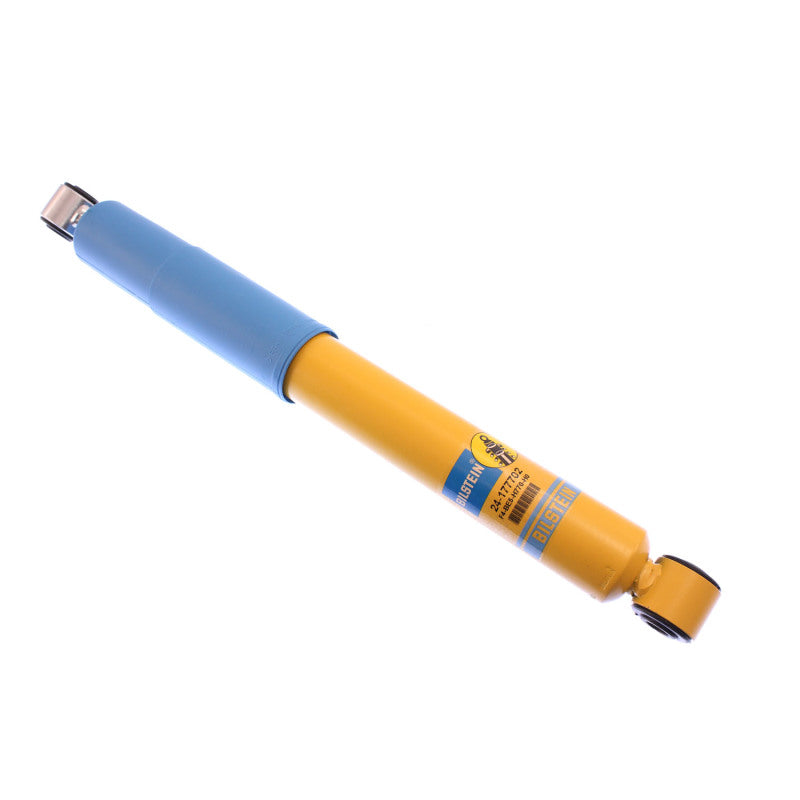

Bilstein 24-177702 B6 Rear Shock for 2002-2018 Sprinter 3500 Dual Rear Wheels

Vehicle Fitment

• 2002-2006 Dodge Sprinter 3500 (Rear, Dual Rear Wheels)
• 2002-2006 Dodge Sprinter 2500 (Rear, Dual Rear Wheels)
• 2002-2006 Freightliner Sprinter 3500 (Rear, Dual Rear Wheels)
• 2002-2006 Freightliner Sprinter 2500 (Rear, Dual Rear Wheels)
• 2010-2018 Mercedes-Benz Sprinter 3500 (Rear, Dual Rear Wheels)

Features

• B6 Performance monotube rear shock for trucks and vans
• Gas-pressure design delivers consistent damping and control
• Responsive digressive valving adapts to changing road conditions
• Designed for use with dual rear wheel Sprinter chassis
• Optimized for stock suspension height and load-carrying duty
• Yellow painted steel body resists corrosion and wear
• Blue straight protective boot included
• Direct OE-style replacement - installs with factory mounting points

Specifications

• Position: Rear (driver or passenger side)
• Series: Bilstein B6 Performance monotube shock
• Internal Design: Monotube gas pressure with digressive piston
• Upper Mount: Eyelet (~14.1 mm)
• Lower Mount: Eyelet (~14.1 mm)
• Extended Length: Approx. 20.24" (514 mm)
• Compressed Length: Approx. 12.99" (330 mm)
• Boot Included: Yes (blue straight protective boot)
• Spring Seat Included: No
• Finish: Yellow painted steel

Included Components

• 1x Bilstein 24-177702 Rear Shock Absorber
• 1x Blue Protective Boot

Product Description

The Bilstein 24-177702 B6 Rear Shock is a heavy-duty performance replacement engineered for rear suspension applications on **Sprinter 2500 and 3500 vans and chassis with dual rear wheels** built from **2002 through 2018**. Designed around a monotube gas-pressure internal structure with a digressive piston, this shock provides consistent damping response for enhanced control, stability, and comfort even under load. It's ideal for cargo, passenger, or motorhome interpretations of the Sprinter platform with dual rear wheels.

Set up to maintain stock ride height while supporting the weight and duty cycle of dual rear wheel configurations, this B6 shock installs easily using factory mounting points. Its durable yellow painted body resists corrosion while the included protective boot guards the shock body from debris and contaminants. Sold individually, shocks should be replaced in matched pairs on the rear axle for balanced suspension performance and optimal handling on Sprinter models equipped with heavy loads or towing duties.
