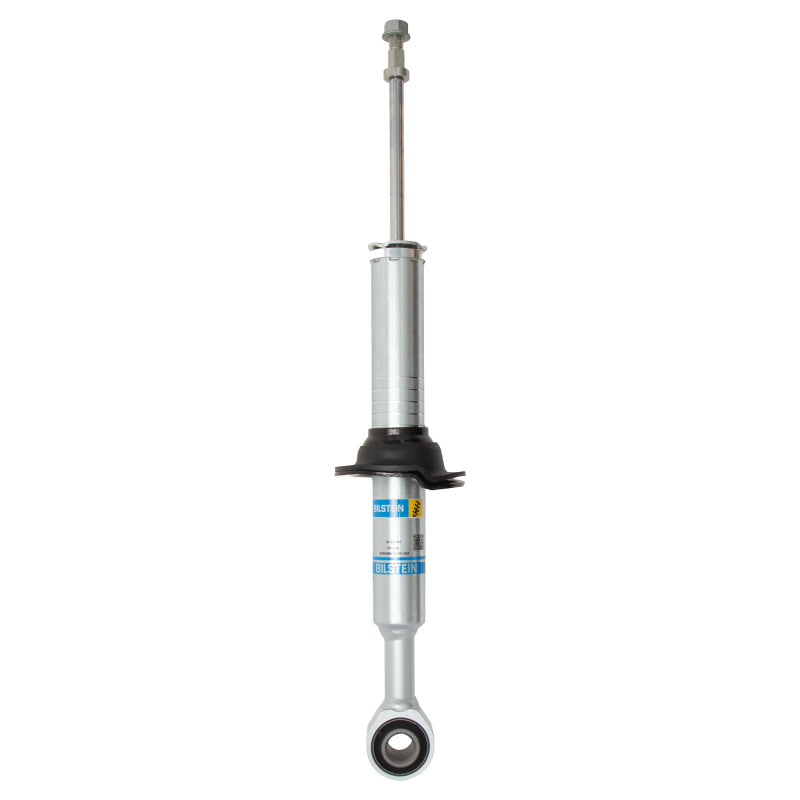

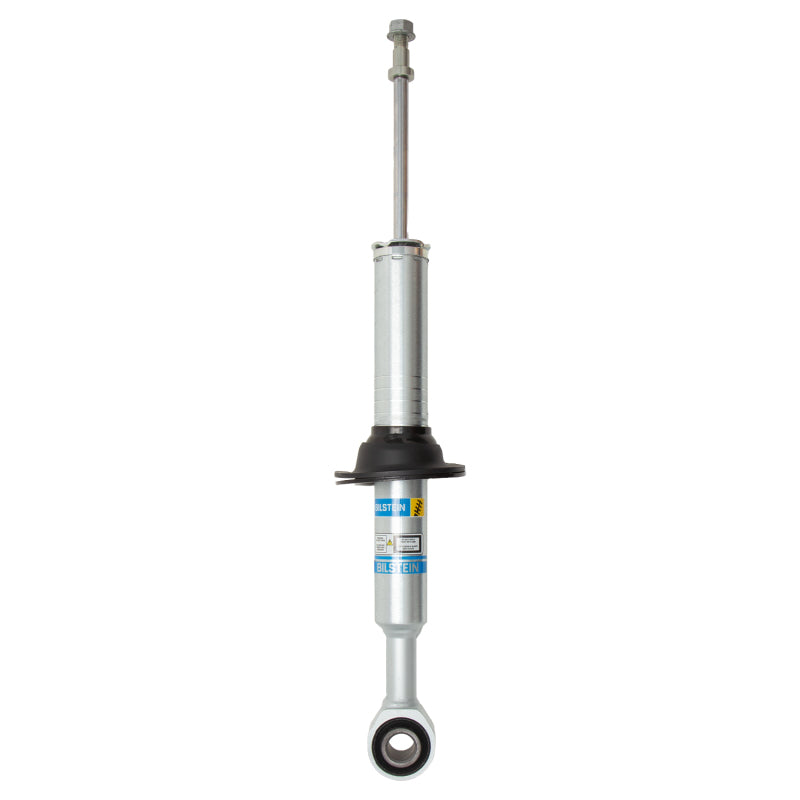

Bilstein 24-347464 B8 5100 RHA Front Shock Toyota 4Runner Land Cruiser 2025 0-2.

Vehicle Fitment

• 2025-2026 Toyota 4Runner SR5 (4WD, 2.4L i-Force) - Front
• 2025-2026 Toyota 4Runner TRD Sport (4WD, 2.4L i-Force) - Front
• 2025-2026 Toyota 4Runner TRD Sport Premium (4WD, 2.4L i-Force) - Front
• 2025-2026 Toyota 4Runner TRD Off-Road (4WD, 2.4L i-Force / i-Force MAX) - Front
• 2025-2026 Toyota 4Runner TRD Off-Road Premium (4WD, 2.4L i-Force / i-Force MAX) - Front
• 2025-2026 Toyota 4Runner Platinum (4WD, 2.4L i-Force MAX) - Front
• 2024-2025 Toyota Land Cruiser Base (4WD, 2.4L i-Force MAX) - Front
• 2024-2025 Toyota Land Cruiser 1958 (4WD, 2.4L i-Force MAX) - Front
• 2024 Toyota Land Cruiser First Edition (4WD, 2.4L i-Force MAX) - Front

Fitment Notes

• 6th-generation Toyota 4Runner (2025+) only - not compatible with 5th-generation 4Runner (2010-2024), which uses a different part number.
• The TRD Pro and Trailhunter use more advanced factory Bilstein OEM remote reservoir and ESCV setups - the B8 5100 RHA is best suited for SR5, TRD Sport, TRD Off-Road, and Platinum trims.
• 4WD models.
• Front position, left or right - sold as a single strut. Order 2 for a complete front axle replacement.
• Ride Height Adjustable - multiple snap-ring grooves in the body allow the spring seat position to be set prior to installation, providing 0-2.75 inches of front lift using OE factory coil springs.
• OE factory coil springs, top mounts, and bump stops are reused - no spring replacement required.
• Factory strut mounting hardware is reused for installation.
• Companion rear shock: Bilstein 24-347433 (B8 5100, 0-1.75" rear lift).

Features

• Bilstein B8 5100 Ride Height Adjustable - delivers both a front leveling/lift capability and a meaningful monotube performance upgrade using the OE coil springs, eliminating the need for coil spacers or a separate lift kit. Adjustable spring perch position set before installation to the desired lift height within the 0-2.75" range.
• 46mm monotube gas pressure design with patented digressive valving instantly reacts to changing road and surface conditions - providing consistent, fade-free front damping performance whether on pavement, trail, or loaded with gear.
• Application-specific valve settings tuned by Bilstein for the sixth-generation 4Runner and Land Cruiser front suspension geometry.
• Increased wheel travel and improved handling versus stock - particularly beneficial for owners running larger aftermarket tires or frequenting off-road terrain.
• Eliminates the need for coil spring spacers while providing superior ride quality and damping performance versus spacer-based lift solutions.
• Zinc-plated finish for corrosion resistance.

Specifications

• Part Number: 24-347464
• Series: Bilstein B8 5100 (Ride Height Adjustable)
• Position: Front (Left or Right)
• Internal Design: 46mm Monotube Gas Pressure
• Piston: 46mm Digressive, Self-Adjusting Deflective Disc Valving
• Front Lift Range: 0-2.75" (adjustable via snap-ring grooves)
• Body Design: Snap-Ring Grooved (Coilover-Style)
• Finish: Zinc Plated
• Reservoir: None
• Weight: 8.45 lbs
• Package Dimensions: 27.0" L x 3.0" W x 3.0" H
• UPC: 651860961767
• Companion Rear Part: 24-347433
• Warranty: Limited Lifetime (against manufacturer defects)

Included Components

• 1x Bilstein B8 5100 Ride Height Adjustable Front Monotube Strut (24-347464)

Product Description

The Bilstein 24-347464 is a B8 5100 Ride Height Adjustable front strut for the 2025-2026 Toyota 4Runner (6th generation, SR5 / TRD Sport / TRD Sport Premium / TRD Off-Road / TRD Off-Road Premium / Platinum - 4WD) and the 2024-2025 Toyota Land Cruiser. It provides up to 2.75 inches of adjustable front lift using the factory coil springs, OE top mount, and bump stop - no separate springs, spacers, or lift kit required. The adjustable snap-ring spring perch is set to the desired lift height before installation, then the unit bolts directly into the factory strut location.

Beyond the lift capability, the B8 5100's 46mm monotube gas pressure design with velocity-sensitive digressive valving delivers substantially improved front damping performance over the factory struts - with consistent, fade-free response across all driving conditions and better wheel articulation under off-road use. For owners of the new sixth-generation 4Runner or current Land Cruiser who want to level or mildly lift the front, run larger tires, and improve handling composure without buying a full lift kit, the 24-347464 is the most practical and highest-quality single-part solution available. Pair with the rear Bilstein 24-347433 for a complete four-corner suspension upgrade. Sold individually - order two for a complete front axle replacement. Backed by Bilstein's Limited Lifetime Warranty against manufacturer defects.
