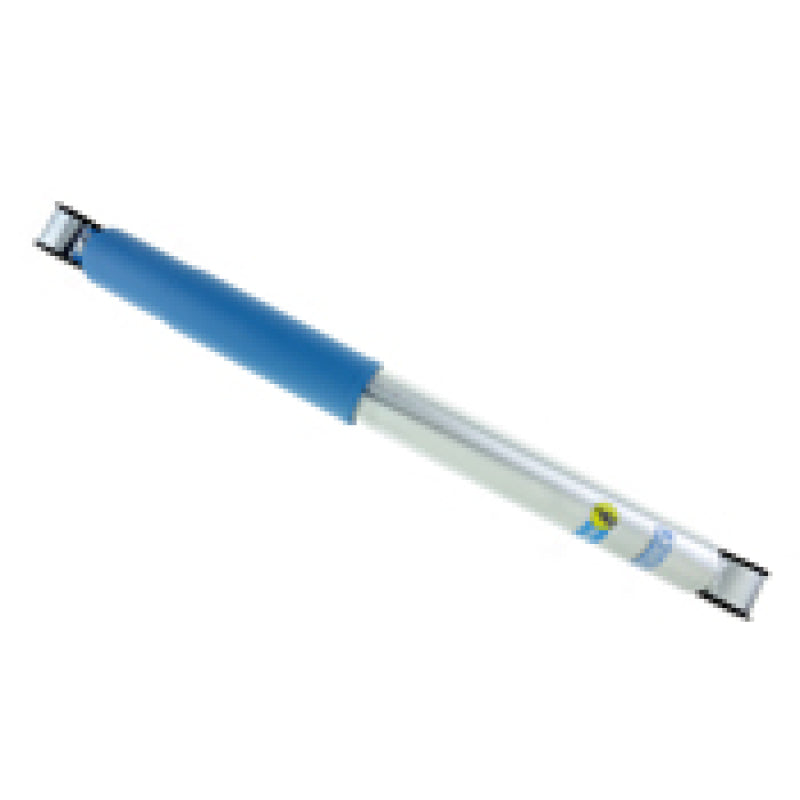

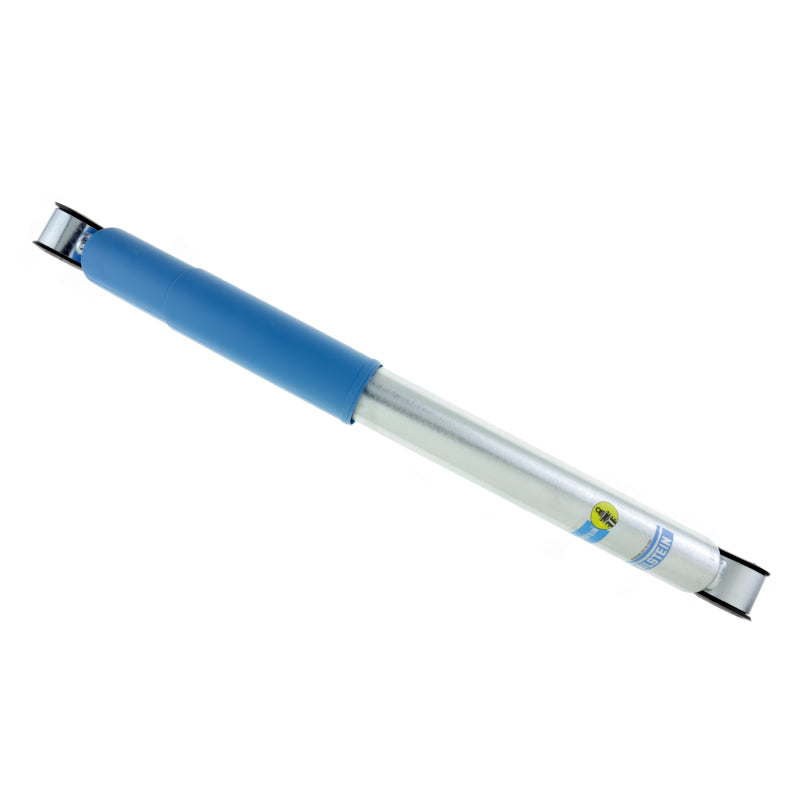

Bilstein 24-234528 B6 Heavy Duty Rear Shock for Ford F-53 Motorhome

Vehicle Fitment

• 1999-2022 Ford F-53 Motorhome Chassis (Rear, V10/GAS/Various Engines)
• 2011-2019 Ford F-59 Commercial Stripped Chassis (Rear)
• 1998 Ford F-550 Super Duty (Rear)

Features

• B6 Heavy Duty monotube gas-pressurized shock engineered for improved damping
• Velocity-sensitive digressive piston design for consistent road response
• Direct bolt-in replacement - no cutting or modification required
• Designed to support heavy loads and frequent highway travel
• Zinc-plated finish with blue protective boot for corrosion resistance
• Improves ride comfort and rear stability under load
• Enhanced traction and control over OEM shocks
• Backed by Bilstein limited lifetime warranty

Specifications

• Part Number: 24-234528
• Series: B6 Heavy Duty
• Position: Rear (Driver or Passenger Side)
• Damping Type: Gas-pressurized, monotube
• Lower Mount Type: Eyelet ~19.1 mm
• Upper Mount Type: Eyelet ~19.1 mm
• Collapsed Length: 15.66 in (397.7 mm)
• Extended Length: 25.09 in (637.2 mm)
• Shaft Diameter: 14 mm
• Boot Included: Blue straight protective boot
• Sold Individually - 1 shock per unit

Included Components

• 1x Bilstein B6 Heavy Duty Rear Shock Absorber (24-234528)

Product Description

The Bilstein 24-234528 B6 Heavy Duty Rear Shock is engineered for Ford motorhome and heavy-duty chassis applications, offering a significant upgrade in ride quality, handling, and control over worn, stock shocks. Its gas-pressurized monotube construction and velocity-sensitive digressive piston design rapidly adapt to changing road conditions, helping maintain stability and comfort even under heavy loads. This shock is calibrated for rear suspension duty on F-53 and similar commercial chassis, delivering consistent damping performance and improved traction on highways and long-distance drives.

Fitment is confirmed for 1999-2022 Ford F-53 motorhome chassis, select Ford F-59 commercial stripped chassis years, and certain 1998 Ford F-550 rear suspension applications. This unit installs directly into factory mounting points without modification and supports stock ride height geometry. The corrosion-resistant finish and protective boot help ensure lasting performance in varied conditions. Coverage through the 2022 model year is verified; fitment for later model years beyond this is unconfirmed at the time of listing.
