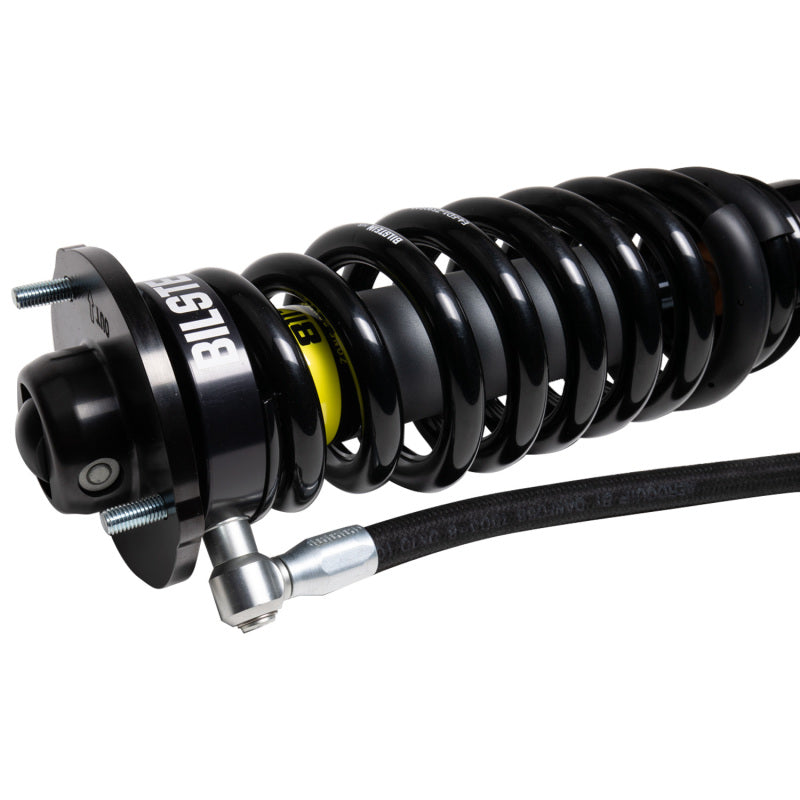

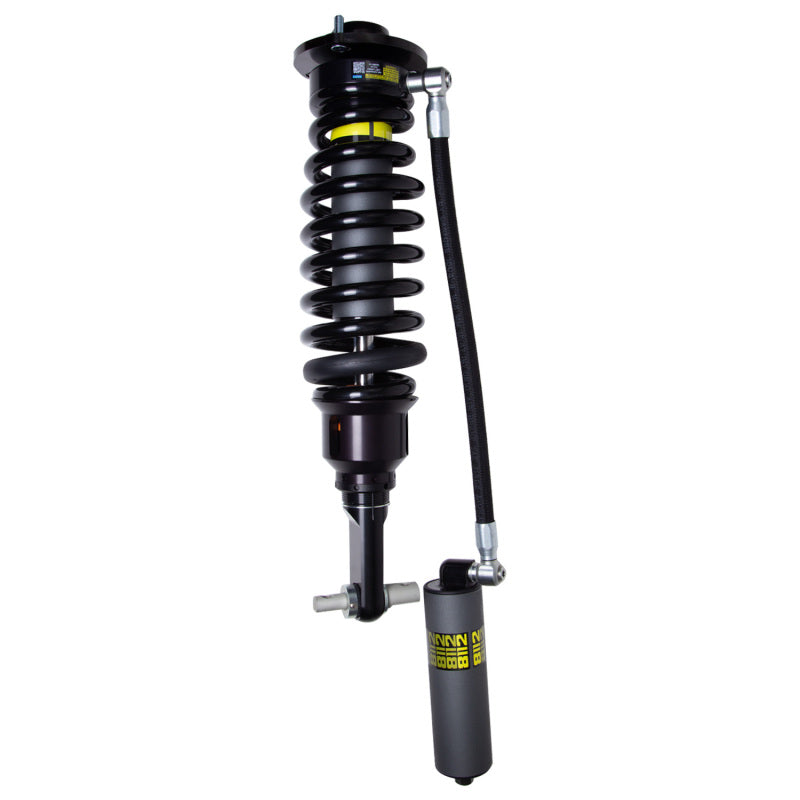

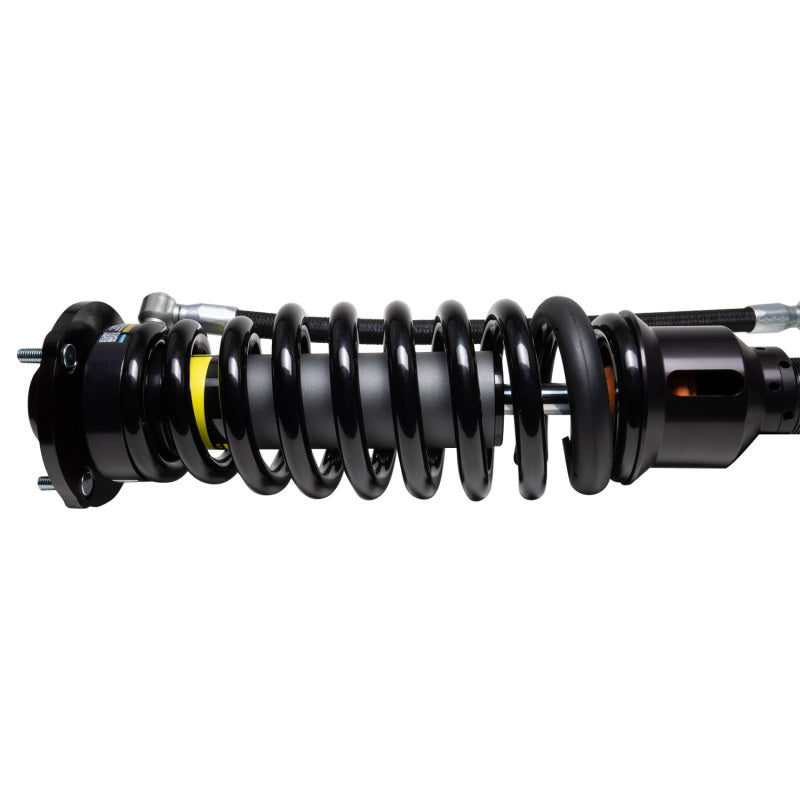

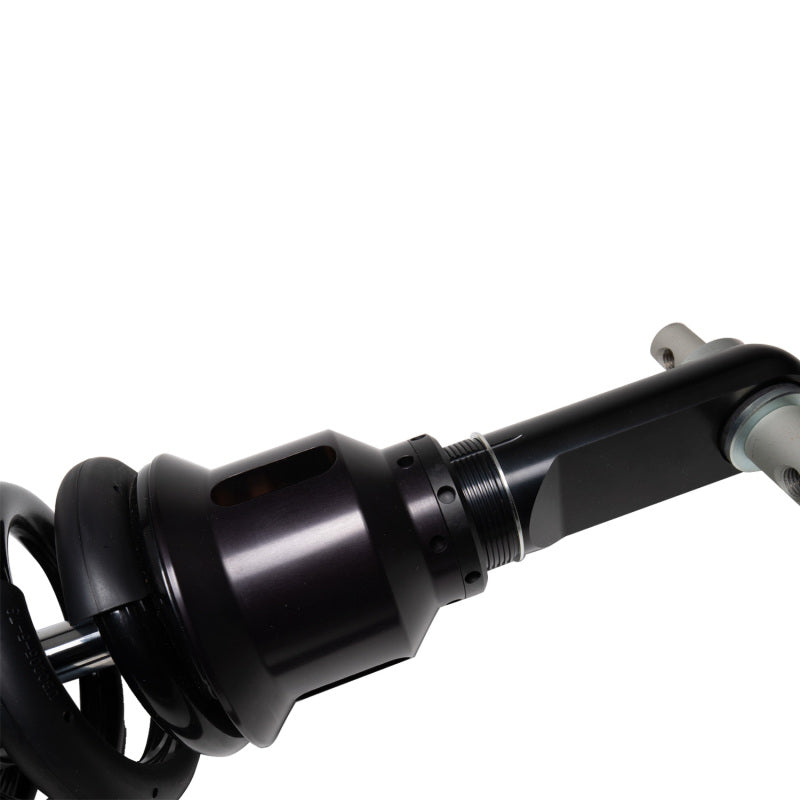

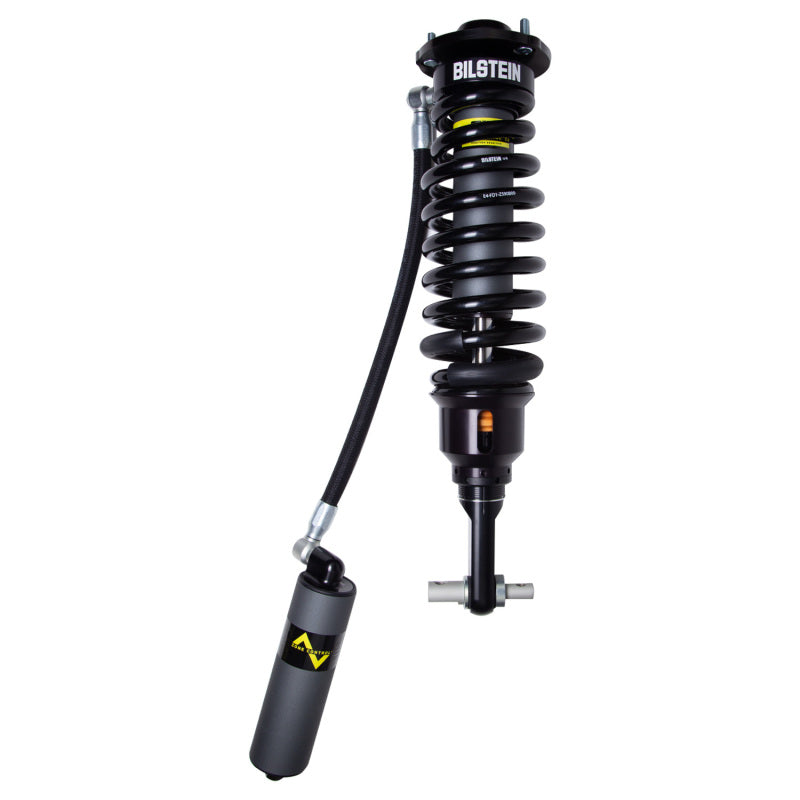

Bilstein 41-326701 B8 8112 Front Left Coilover for 2015-2026 Ford F-150 4WD

Vehicle Fitment

• 2015-2026 Ford F-150, 4WD (excluding Raptor), Front Left

Fitment Notes

• Does not fit F-150 Raptor
• For 4WD models only
• Requires aftermarket upper control arms, sold separately
• Designed for vehicles without Continuously Controlled Damping (excludes electronic/adaptive suspension)
• Front left position only - right side sold separately

Features

• Position-sensitive ZoneControl CR damping with triple-piston design
• 3 stages of compression valving and 2 stages of rebound valving
• Internal bumpstop control eliminates need for external hydraulic stops
• Threaded spring seat allows 0.7"-2.7" of front lift

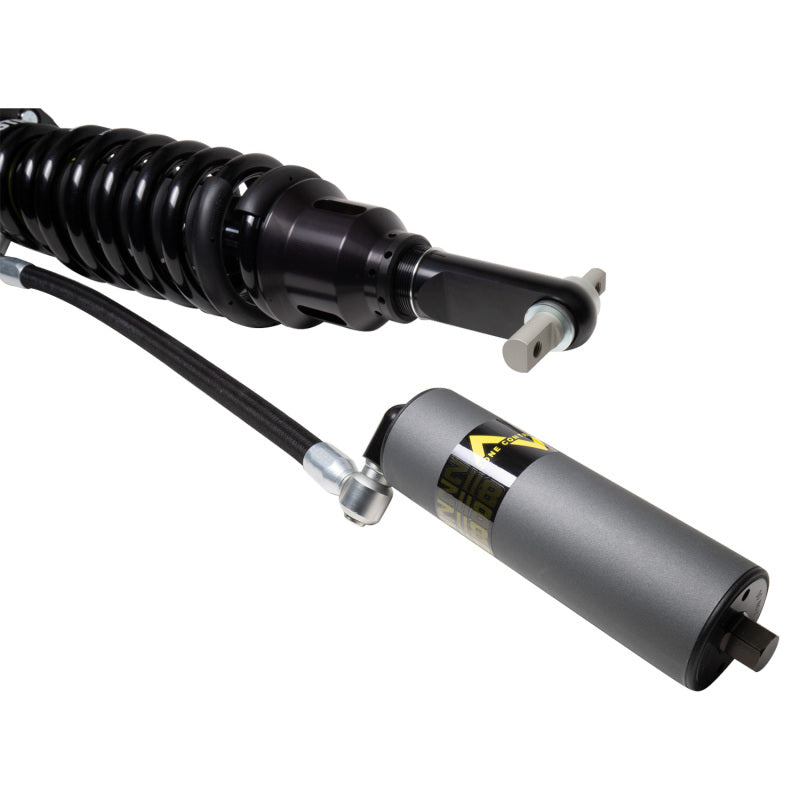

• External fluid reservoir improves cooling on extended off-road outings
• Comfortable on-road ride with adaptive off-road control

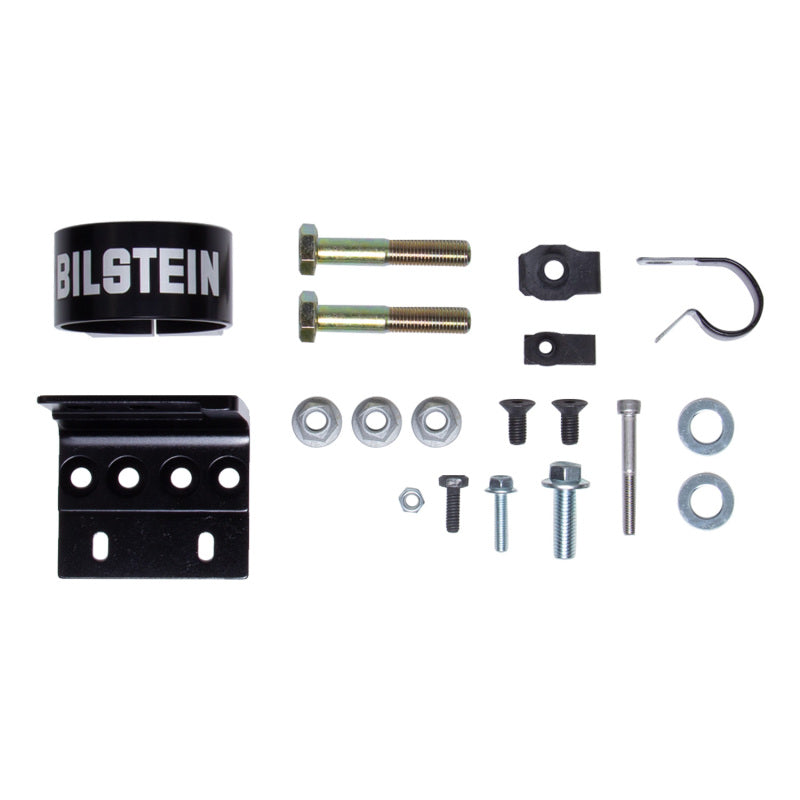

• All necessary mounting hardware included for installation
• Backed by Bilstein's 2-year warranty

Specifications

• Position: Front, Left
• Internal design: ZoneControl CR, triple-piston monotube
• Lower mount type: Crossbar
• Upper mount type: Special
• Spring seat included: Yes
• Collapsed / extended length: 18.45 in / 23.22 in

Included Components

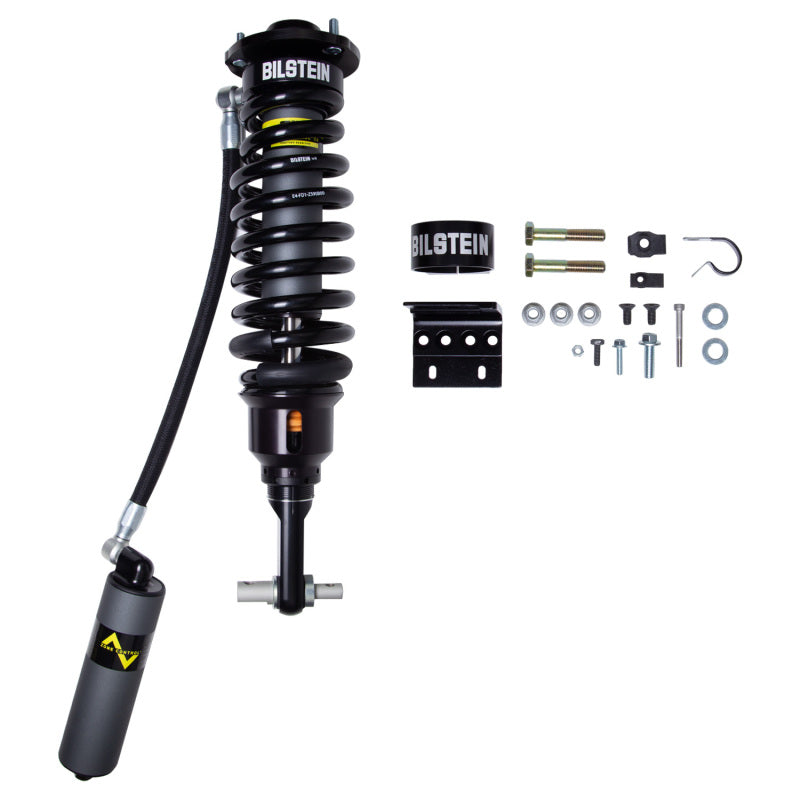

• 1x Bilstein B8 8112 ZoneControl CR Front Left Coilover (shock, coil spring, bushing, boot, mounting bolt, and reservoir mount included)

Product Description

The Bilstein 41-326701 is a B8 8112 ZoneControl CR front left coilover built for 4WD Ford F-150 models (excluding Raptor) running 0.7"-2.7" of front lift. Its position-sensitive triple-piston design delivers three stages of compression and two of rebound valving, giving comfortable on-road manners while adapting in real time to large off-road inputs.

It comes as a complete corner module with coil spring, remote reservoir, and mounting hardware included, but requires aftermarket upper control arms to achieve its full lift range. This is the front left side only - order the companion right-side part separately. Bilstein backs it with a 2-year warranty against manufacturing defects.
