Bilstein 24-337007 B8 5100 Adjustable Front Shock for 2015-2020 Chevy Suburban

Vehicle Fitment

• 2015-2020 Chevrolet Suburban (2WD / 4WD)
• 2015-2020 GMC Yukon XL (2WD / 4WD)

Features

• Ride-height adjustable via multiple snap-ring grooves
• 46 mm monotube gas-charged design for consistent damping
• Self-adjusting deflective-disc valving for changing terrain
• Front lift capability: approximately 0-1.6" (application dependent)
• Zinc-plated body for maximum corrosion protection
• Snap-ring grooved design for perch adjustment without spacers
• Increased suspension travel compared to OEM shocks
• Limited lifetime warranty for the original purchaser

Specifications

• Collapsed Length: 15.00 in
• Extended Length: 18.89 in
• Stroke / Travel: ~3.89 in
• Piston Diameter: 46 mm
• Upper Mount: Stem
• Lower Mount: Bar Pin
• Shaft Diameter: 14 mm
• Body Design: Snap-ring grooved coil-over style
• Finish: Zinc plated
• Adjustable Damping: No

Included Components

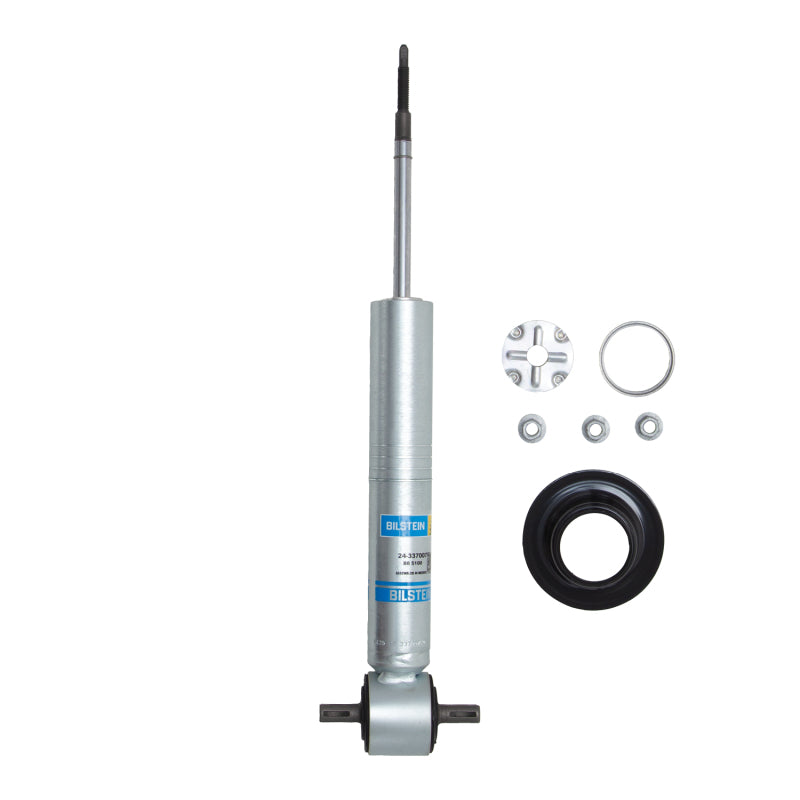

• 1x Bilstein B8 5100 Ride-Height Adjustable front shock (24-337007)
• Spring seat (built-in)
• Installation instructions and warranty documentation

Product Description

The Bilstein 24-337007 B8 5100 front shock is engineered for the front suspension of 2015-2020 Chevrolet Suburban and GMC Yukon XL models. Its ride-height adjustable design, enabled by snap-ring grooves, provides flexibility for achieving up to ~1.6" of lift (depending on your spring setup), making it an excellent choice for mild leveling or light-duty lift without changing your factory springs.

This shock uses a 46 mm monotube gas-charged piston and digressive, self-adjusting deflective-disc valving to deliver consistent performance and control over a variety of driving conditions. The monotube design helps resist fade under load, and the zinc-plated finish protects against corrosion.

Installation is straightforward: this is a direct-fit upgrade, reusing your OEM coil springs. Once installed, it improves ride quality, handling, and suspension travel. Bilstein supports the 24-337007 with a limited lifetime warranty, giving you confidence in long-term durability.
