Bilstein 25-331905 B8 5160 Rear Shock w/ Reservoir for 2014-2025 Ram 2500 4WD

Vehicle Fitment

• 2014-2025 Ram 2500 (4WD, All Trims, Gas and Diesel)

Fitment Notes

• Rear position only -- sold individually (one shock per listing)
• 4WD only -- does not fit 2WD/RWD models
• Without Air Level Suspension only -- not compatible with factory air suspension equipped models
• Compatible with both 6.4L V8 Gas and 6.7L Cummins Diesel engines
• Designed for stock height to moderate lift applications
• Matching B8 5160 front shocks available separately -- part number varies by lift height (25-311907 for 2-2.5" lift, 25-293432 for Power Wagon/0-2" lift)
• Reservoir mount hardware included

Features

• Bilstein B8 5160 series -- remote reservoir design
• 46mm monotube construction
• Velocity-sensitive digressive valving
• Application-specific valving tune
• Increased cooling capacity vs. standard monotube
• Increased wheel travel vs. standard monotube
• 360-degree swivel banjo hose fitting
• Billet reservoir mount included
• Zinc plated body finish
• Fade-free performance under sustained off-road use
• Direct bolt-on -- no drilling required
• Made in USA
• 1-year warranty

Specifications

• Part Number: 25-331905
• Series: B8 5160
• Position: Rear
• Body Diameter: 46mm
• Body Design: Smooth Monotube
• Reservoir: Yes -- remote
• Valving: Velocity-sensitive digressive
• Finish: Zinc plated
• Drivetrain: 4WD only
• Air Suspension Compatibility: Without air suspension only
• Warranty: 1-Year Limited
• Proposition 65: Yes

Included Components

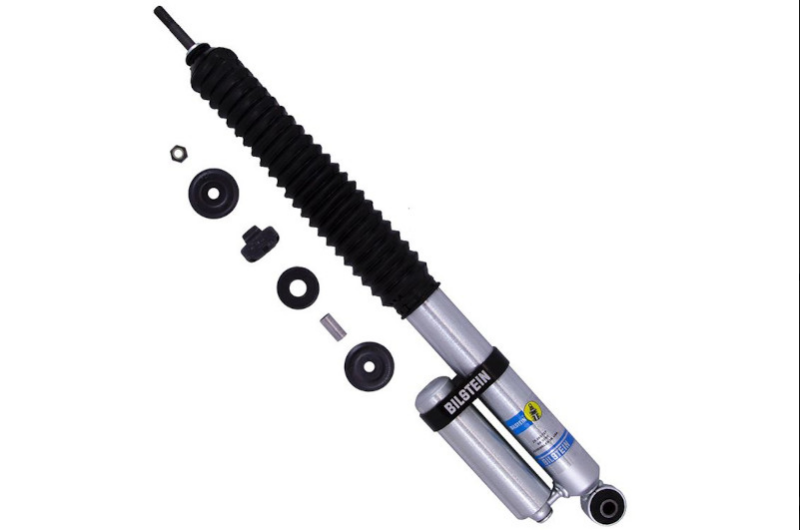

• 1x Bilstein B8 5160 rear shock absorber (25-331905)
• Reservoir mount hardware (washers, bushings, nuts)

Product Description

The Bilstein 25-331905 is a B8 5160 series rear shock absorber for the 2014-2025 Ram 2500 4WD -- compatible with both 6.4L V8 gas and 6.7L Cummins diesel engines across all trims, excluding vehicles equipped with factory air level suspension. The B8 5160 builds on Bilstein's core 46mm monotube platform by adding a remote reservoir that provides increased oil capacity and heat dissipation compared to a standard monotube design. This translates to more consistent damping performance during sustained off-road use -- particularly under repeated large impacts that would cause a conventional shock's oil to overheat and fade.

Valving is velocity-sensitive and digressive, tuned specifically for the Ram 2500 rear application to balance off-road compliance with on-road control. A 360-degree swivel banjo hose fitting allows flexible reservoir positioning during installation, and all reservoir mount hardware is included in the box. The body is zinc plated for corrosion resistance. Sold individually -- two are required per vehicle for a complete rear replacement. Matching B8 5160 front shocks are available separately; part number varies by lift height. Direct bolt-on installation with no drilling required. Made in the USA, backed by a 1-year warranty.
