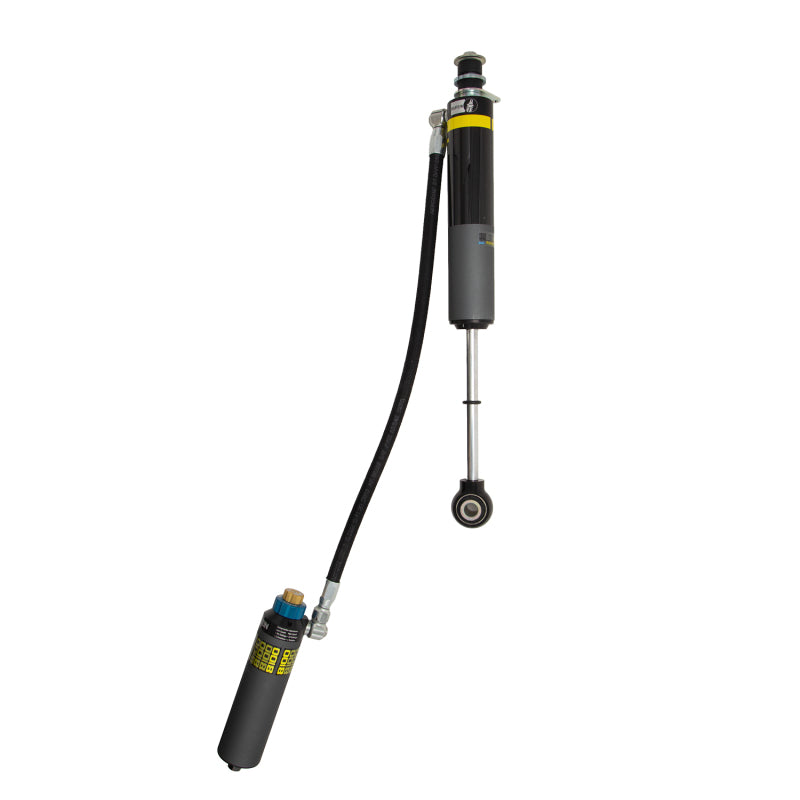

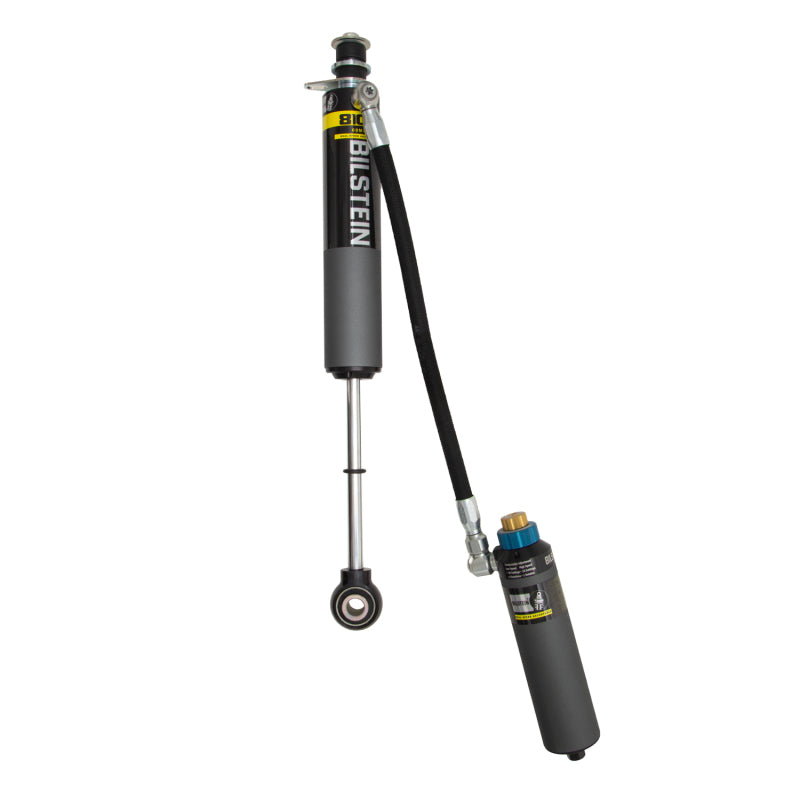

Bilstein 25-294101 B8 8100 DSA Rear Shock 0-2.5in for 2003-2024 Toyota 4Runner

Vehicle Fitment

• 2003-2009 Toyota 4Runner (SR5, Sport Edition, Limited - 4WD/4x4, 4.0L V6)
• 2003-2004 Toyota 4Runner (Sport Edition, Limited - 4WD/4x4, 4.7L V8)
• 2010-2024 Toyota 4Runner (SR5, SR5 Premium, TRD Off-Road, TRD Off-Road Premium, TRD Pro - 4WD/4x4, 4.0L V6)
• 2010-2024 Toyota 4Runner (SR5, SR5 Premium - RWD/2WD, 4.0L V6)
• 2010-2023 Lexus GX460 (Base, Luxury, Premium, Black Line Special Edition - 4WD/4x4, 4.6L V8)

Fitment Notes

• Does NOT fit Toyota 4Runner TRD Sport or Limited (2010-2024) models equipped with factory X-REAS (Cross-Linked Relative Absorber System) suspension - X-REAS must be deleted/removed prior to installation for these trims.
• Does NOT fit vehicles equipped with Adaptive Variable Suspension or factory rear air suspension systems.
• Compatible with KDSS (Kinetic Dynamic Suspension System) equipped 4Runner models - no KDSS modification required.
• Rear position only - sold as a single unit (one shock per purchase).
• Designed for vehicles with 0-2.5 inches of rear lift; not intended for stock-height replacement (see B8 5100 or B8 4600 for stock-height applications).

Features

• Dual Speed Adjustment (DSA): External click adjuster knobs allow independent tuning of both low-speed and high-speed compression to match any terrain or driving condition.
• Massive 60mm (2.65" OD) digressive piston delivers superior damping force control, improved comfort, and dramatically reduced fade compared to smaller-bore shocks.
• Remote or piggyback reservoir design significantly increases oil volume capacity for superior heat management during extended off-road use, washboard roads, and high-speed trail running.
• Monotube gas-pressure design ensures consistent, fade-free damping performance at all speeds and under all load conditions.
• Velocity-sensitive digressive valve settings are tuned specifically for the Toyota 4Runner and Lexus GX460 platform for application-optimized compression and rebound.
• Constructed from aerospace-quality billet components for maximum durability, precision fitment, and long-term performance in demanding environments.
• 360-degree swivel banjo reservoir hose fitting allows clean, low-profile installation without reservoir routing conflicts.
• Provides 0-2.5 inches of rear lift compatibility with OE-style mounting for easy direct-fit installation.
• Delivers improved wheel travel and body control over factory shocks, enhancing both on-road composure and off-road capability.
• Backed by Bilstein's lifetime limited warranty for the original purchaser against defects in materials and workmanship.

Specifications

• Part Number: 25-294101
• Series: B8 8100 Dual Speed Adjustable (DSA) - Reservoir
• Position: Rear (sold individually - one shock per unit)
• Piston Diameter: 60mm digressive
• Shock Body OD: 2.65 inches (60mm)
• Adjustment: Dual Speed Compression (low-speed and high-speed, external click adjuster knobs)
• Reservoir Style: Remote or piggyback (application-dependent)
• Rear Lift Range: 0-2.5 inches
• Upper Mount Type: Stem
• Lower Mount Type: Eye (19.2mm)
• Gas Charge: High-pressure nitrogen monotube
• Finish: Billet / corrosion-resistant aerospace-grade components
• Warranty: Lifetime limited (original purchaser)

Included Components

• 1x Bilstein B8 8100 DSA Rear Reservoir Shock (25-294101)

Product Description

The Bilstein 25-294101 B8 8100 DSA rear reservoir shock is Bilstein's flagship rear damper solution for the 2003-2024 Toyota 4Runner and 2010-2023 Lexus GX460, engineered for enthusiasts who demand race-proven damping performance without sacrificing daily drivability. Built around an oversized 60mm (2.65" OD) monotube body constructed from aerospace-quality billet components, this shock absorber delivers significantly higher oil volume capacity than conventional dampers, enabling exceptional heat management during sustained off-road driving, desert running, or heavily loaded overland expeditions. Where lesser shocks begin to fade under repeated hard use, the 8100's large bore body and remote or piggyback reservoir keep damping forces consistent from the first mile to the last.

The defining feature of the B8 8100 DSA is its externally adjustable Dual Speed Compression system. Two click-adjuster knobs allow the driver to independently tune low-speed and high-speed compression damping - dialing in a plush, comfortable setting for highway cruising or a firm, controlled setup for high-speed trail work - all without removing the shocks or lifting the vehicle. The velocity-sensitive digressive piston is application-tuned specifically for the 4Runner and GX460 suspension geometry, ensuring optimal response across the full range of suspension travel. The result is a damper that feels compliant and refined on pavement while remaining composed and controlled when things get rough.

This shock fits 4th-generation 4Runner models (2003-2009) in SR5, Sport Edition, and Limited trims, as well as all 5th-generation 4Runner models (2010-2024) in SR5, SR5 Premium, TRD Off-Road, TRD Off-Road Premium, and TRD Pro configurations. It is also a direct fit for the 2010-2023 Lexus GX460 across all trim levels. Important: this shock is not compatible with factory X-REAS suspension (found on TRD Sport and Limited 4Runner trims) unless the X-REAS system is first deleted. It is, however, fully compatible with KDSS-equipped models. Sold as a single unit - two are required for a complete rear installation. For those building a full performance suspension system, this shock pairs ideally with Bilstein's B8 8112 front coilovers for a matched, tunable setup.
