Bilstein 41-326343 Front Left Coilover for 2003-2009 4Runner/GX470 4WD

Vehicle Fitment

• 2003-2009 Toyota 4Runner (SR5, Sport, Limited, 4WD, 4.0L V6 / 4.7L V8)
• 2003-2009 Lexus GX470 (Base, 4WD, 4.7L V8)
• 2007-2009 Toyota FJ Cruiser (Base, Trail Teams, TRD SE, 4WD, 4.0L V6)

Fitment Notes

• Fits front left (driver side) position only
• Excludes vehicles equipped with X-REAS or KDSS suspension systems
• Designed for 4WD models only
• Supports front lift range of approximately 1.3-4.0 inches

Features

• Bilstein B8 8112 ZoneControl CR DSA+ technology for position-sensitive damping
• Triple piston design with 3 compression zones and 2 rebound zones
• Dual Speed Adjustability for independent high- and low-speed compression tuning
• Remote reservoir improves cooling and prevents damping fade
• Threaded spring seat allows precise ride height adjustment
• Internal hydraulic bump stop (JCO) reduces harsh bottom-out impacts
• Monotube gas pressure design ensures consistent performance
• Application-specific tuning for improved on-road comfort and off-road control

Specifications

• Position: Front Left (Driver Side)
• Type: Coilover Shock Absorber with Spring Assembly
• Collapsed Length: 17.43 in (442.6 mm)
• Extended Length: 22.24 in (564.8 mm)
• Shock Body Diameter: 60mm (2.65 in)
• Spring Rate: 600 lb/in
• Shaft Diameter: 22mm
• Lower Mount: Eyelet (14.1mm)
• Upper Mount: Proprietary design
• Reservoir: Remote aluminum reservoir
• Adjustability: External high/low-speed compression + internal rebound control

Included Components

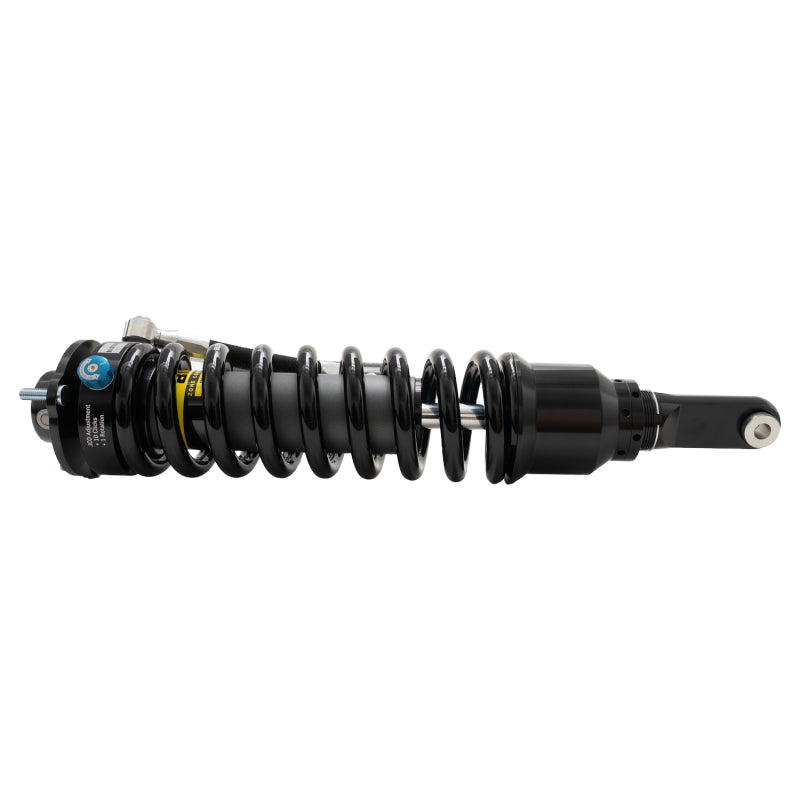

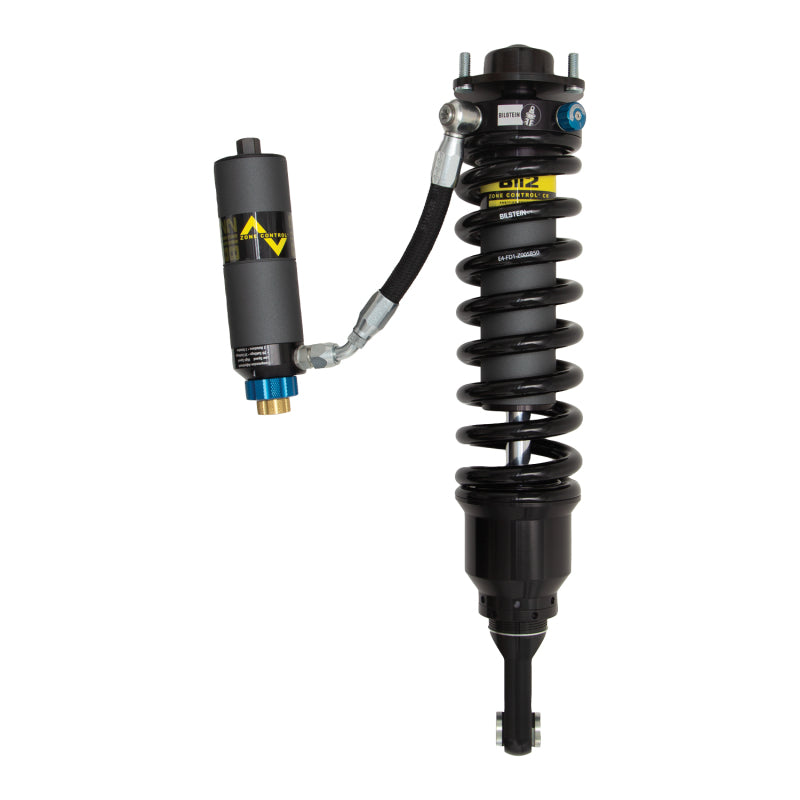

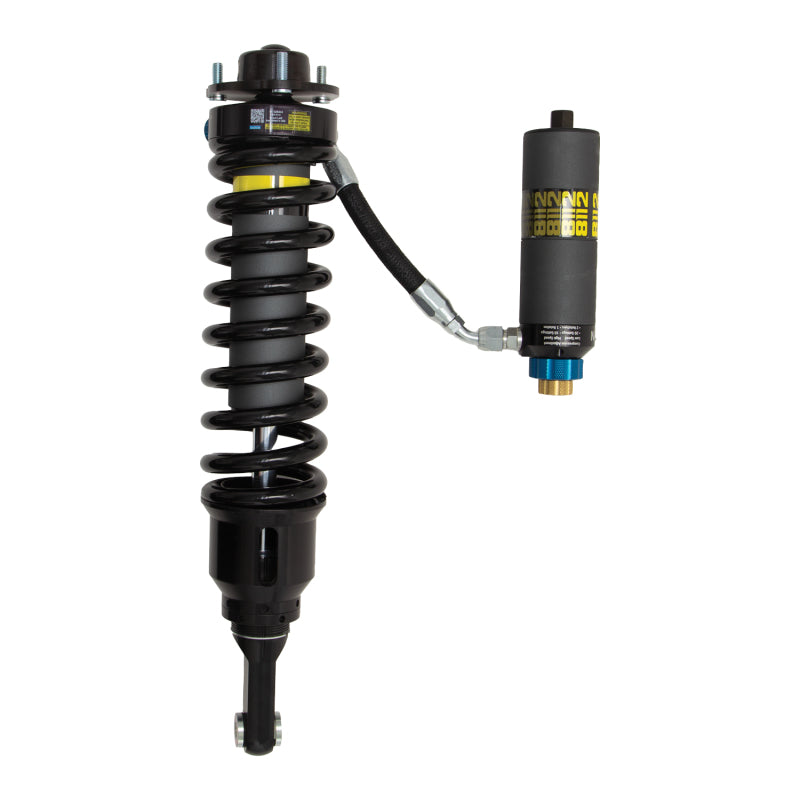

• 1x Front Left Coilover Shock Assembly
• 1x Pre-installed Coil Spring
• 1x Remote Reservoir Assembly

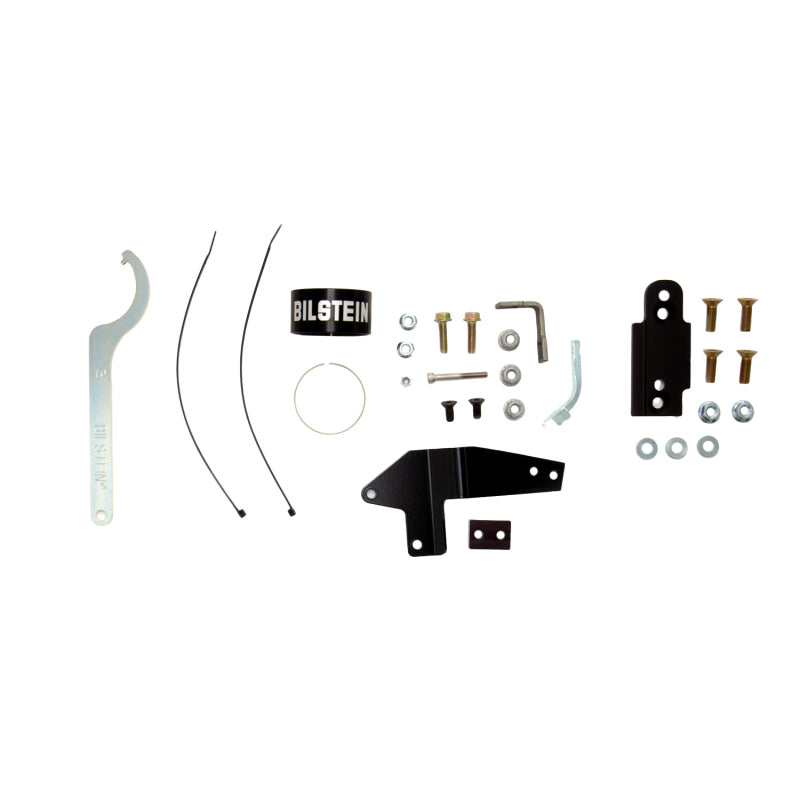

• 1x Reservoir Mounting Bracket

Product Description

The Bilstein 41-326343 B8 8112 ZoneControl CR DSA+ coilover is a premium front left suspension module designed for the 2003-2009 Toyota 4Runner, Lexus GX470, and Toyota FJ Cruiser platforms. Engineered for serious off-road capability and daily driving comfort, this system features Bilstein's advanced triple piston ZoneControl technology, delivering position-sensitive damping that adapts to both small road imperfections and large suspension impacts.

Equipped with Dual Speed Adjustability, this coilover allows independent tuning of high- and low-speed compression, giving drivers precise control over ride characteristics. The remote reservoir increases oil capacity for improved thermal performance, while the integrated hydraulic bump stop helps manage extreme compression events. With adjustable ride height ranging up to approximately 4 inches of lift, this system is ideal for lifted builds seeking enhanced stability, durability, and all-terrain performance. :contentReference[oaicite:0]{index=0}
