BD Diesel 1030705 2Low UnLoc Front Differential Disconnect Kit for Ram 1500/2500

Vehicle Fitment

• 2009-2024 Ram 1500 (4WD, All Engines)
• 2014-2024 Ram 2500 (4WD, All Engines)
• 2013-2024 Ram 3500 (4WD, All Engines)
• 2019-2024 Ram 4500 / 5500 (4WD, All Engines)

Fitment Notes

• 4WD models only - does not apply to 2WD trucks
• Compatible with vacuum-actuated front differential systems used on these Ram platforms (CAD - Central Axle Disconnect type)
• For older Dodge Ram trucks with a CAD front axle (1994-2002 2500/3500, 1994-2001 1500), see a separate BD application-specific kit
• For GM 4WD trucks, see BD Diesel 1030710 (2001-2014) or 1030711 (2015-2018)

Features

• Manually disables the vacuum-actuated front differential while the transfer case remains in 4WD low range - delivering full torque to the rear axle only with 2WD-style maneuverability

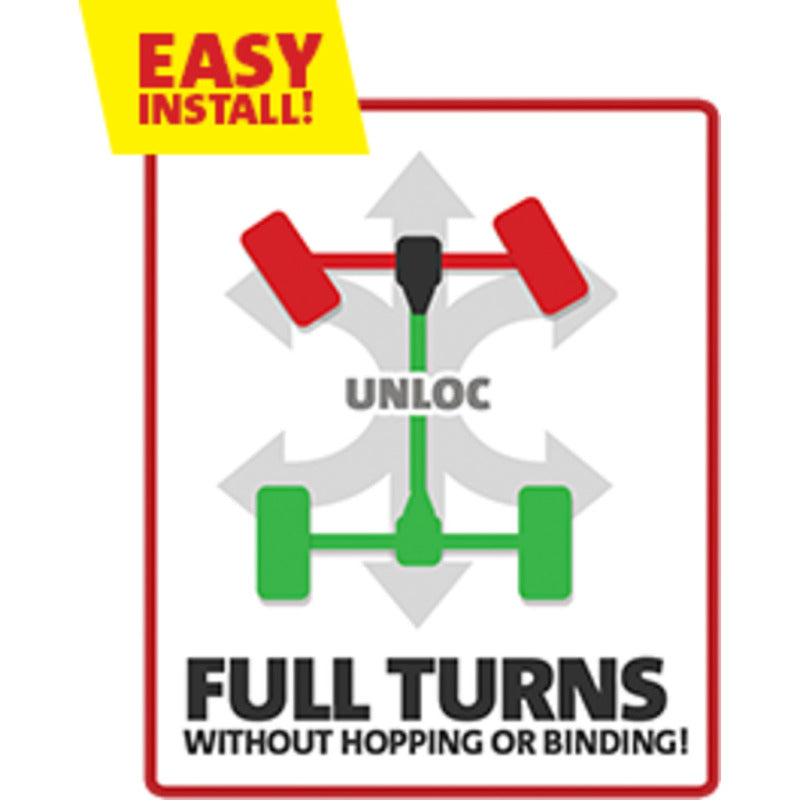

• Eliminates front axle u-joint binding and hopping during sharp full-lock turns in 4WD low
• Greatly improves backing maneuvers with heavy trailers in tight spaces while keeping the engine in low-range gear reduction
• Plug-and-play installation below the glove box - no wire cutting, splicing, or routing through the firewall
• Included illuminated rocker switch provides driver-controlled on/off override and visual indication of front axle status
• Precision-machined components built from high-quality materials for durable, reliable performance
• Legal for sale and use in all 50 states

Specifications

• Part Number: 1030705
• Product Line: BD Diesel 2Low UnLoc
• Part Type: Front Axle Disconnect / Differential Engagement Override Kit
• Actuation Type: Vacuum (overrides factory vacuum-actuated CAD system)
• Switch Type: Illuminated Rocker Switch (included)
• Installation Time: Approximately 1 Hour
• Warranty: 12 Months

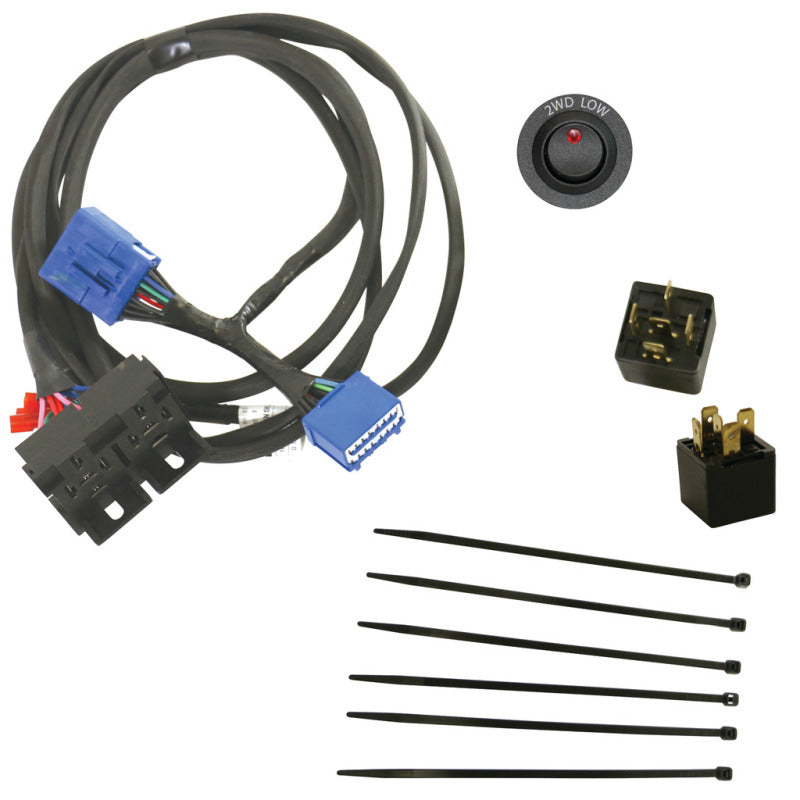

Included Components

• 1x 2Low UnLoc Control Module / Wiring Harness Adapter
• 1x Illuminated Rocker Switch
• 1x Mounting Hardware Kit

Product Description

The BD Diesel 1030705 2Low UnLoc is a front differential disconnect controller for 2009-2024 Ram 1500, 2013-2024 Ram 3500, 2014-2024 Ram 2500, and 2019-2024 Ram 4500/5500 4WD trucks. In standard 4WD low range, the front and rear axles are locked together through the transfer case, which creates severe binding and u-joint hop during tight turns - making precise maneuvers like backing trailers, sharp off-road turns, or slow-speed crawling much harder. The 2Low UnLoc solves this by overriding the factory vacuum-actuated front differential, holding the front hubs in the free (2WD) position while the transfer case stays in low range. The result is full rear-axle torque with the low-range gear reduction, but with normal 2WD steering feel and turning radius.

Installation is plug-and-play under the glove box - no cutting, splicing, or firewall penetration needed. The included illuminated rocker switch mounts within the cab and gives the driver clear on/off control and a visual indicator of when the front axle override is active. Whether you're backing a heavy gooseneck into a tight alley, crawling a rocky trail, or maneuvering in a congested yard, the 2Low UnLoc gives you a capability that should have come from the factory.
