BBK 8002 76mm Cold Air Mass Air Meter for 1986-1993 Ford Mustang 5.0 GT/LX

Vehicle Fitment

• 1986-1993 Ford Mustang GT (Fox Body, 5.0L V8 EFI)
• 1986-1993 Ford Mustang LX (Fox Body, 5.0L V8 EFI)

Fitment Notes

• Does not fit Cobra
• Cold Air Calibration (CAC) -- optimized for fenderwell-style cold air intake, not factory airbox
• For factory airbox use, see BBK FAB-calibrated variants
• MAF uses 6-pin rectangular connector; includes 6-pin to 4-pin adapter for 1986-1993 4-pin harness
• 1986-1988 speed density Mustangs require MAF conversion -- confirm EFI setup before ordering
• Not CARB legal -- not for sale or use in California

Features

• 76mm bore diameter -- vs. 55mm OEM
• Electronically calibrated for 19 lb/hr injectors
• 356 aluminum casting
• Powder coated finish
• CNC machined to exact tolerances
• Plug-and-play installation with included adapter
• Up to 15 RWHP gain (dyno tested)
• Made in USA

Specifications

• Bore diameter: 76mm
• Stock MAF diameter: 55mm
• Calibration: Cold Air Calibration (CAC)
• Injector calibration: 19 lb/hr
• Airflow capacity: 700+ CFM
• Housing material: 356 aluminum, powder coated
• Connector: 6-pin rectangular (adapter to 4-pin oval included)

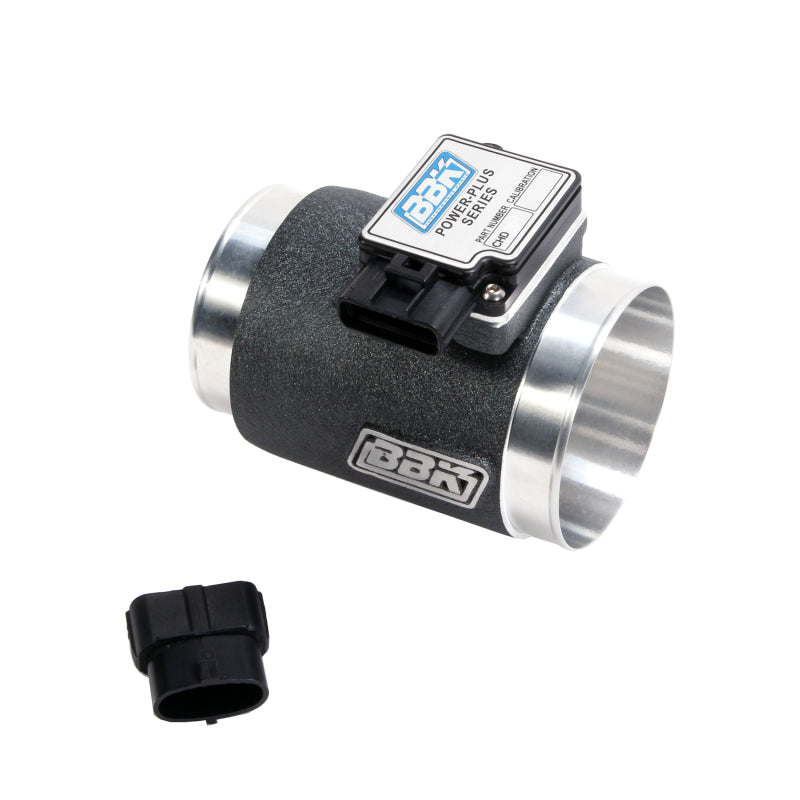

Included Components

• 1x 76mm BBK mass air meter housing
• 1x Pre-calibrated electronic mass air sensor module

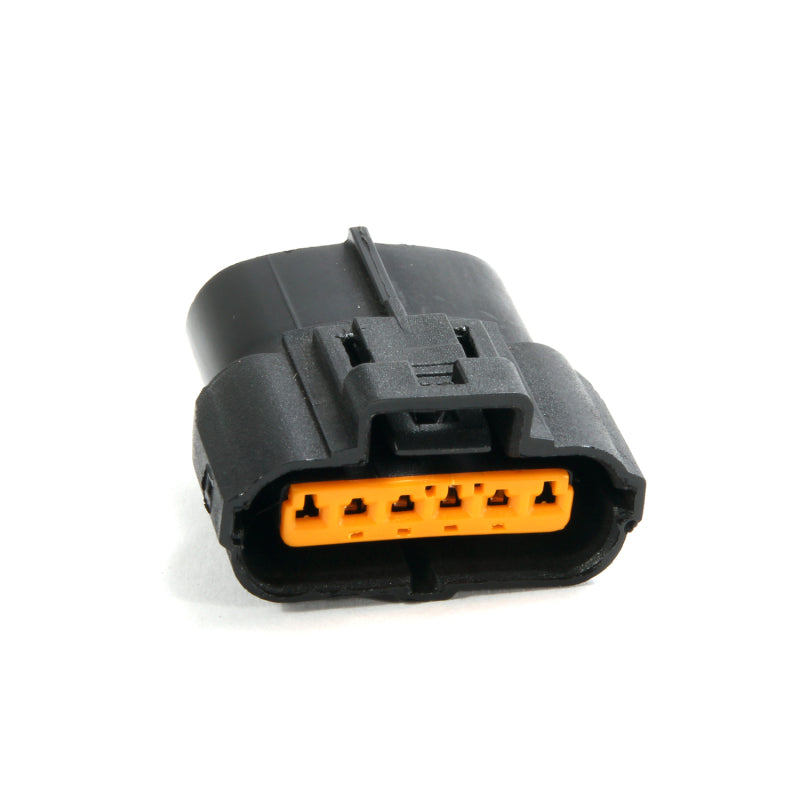

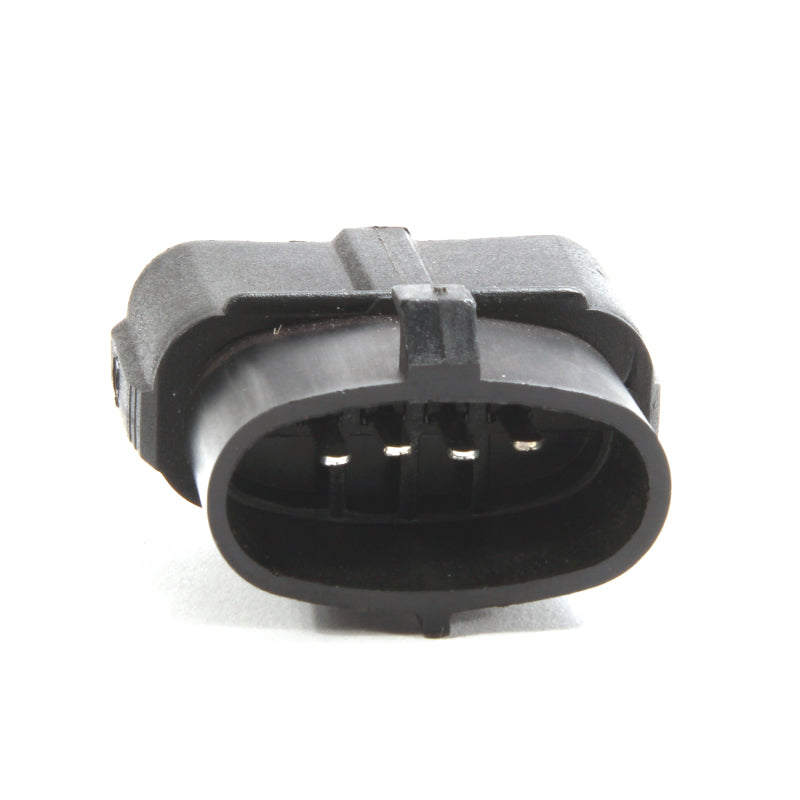

• 1x 6-pin to 4-pin wiring adapter

Product Description

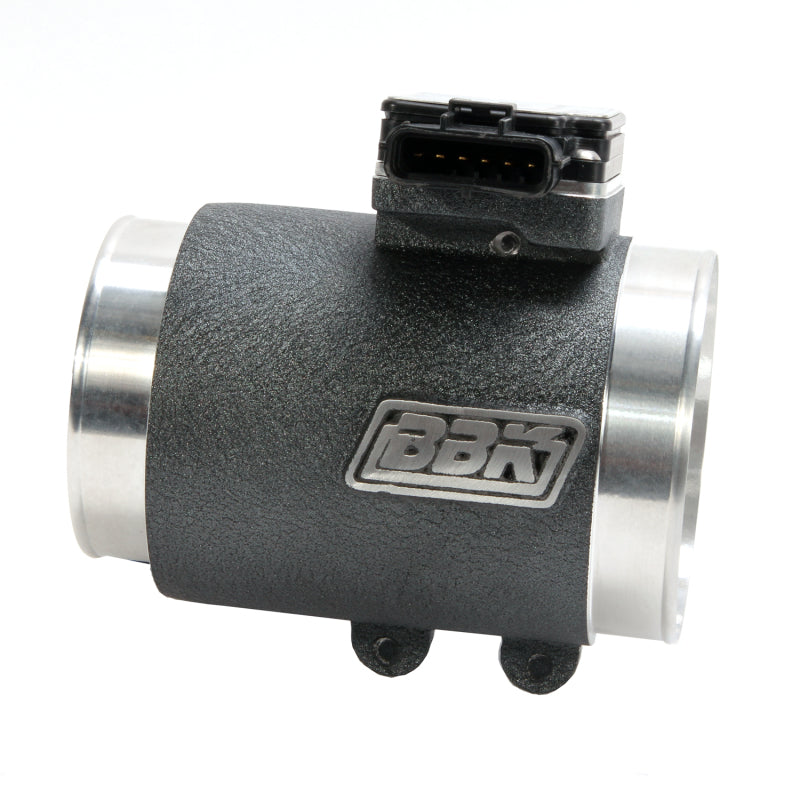

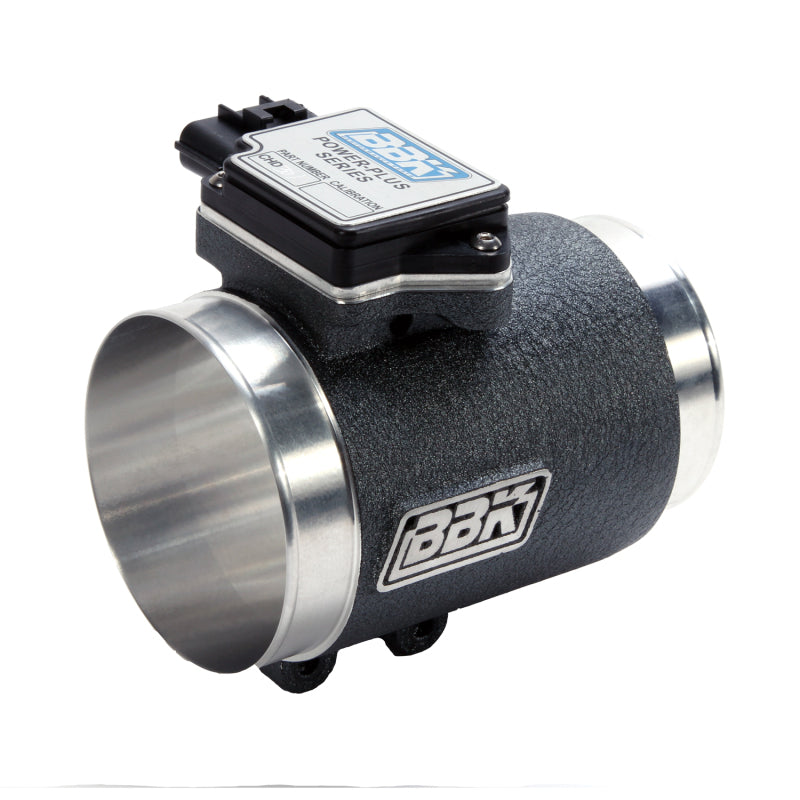

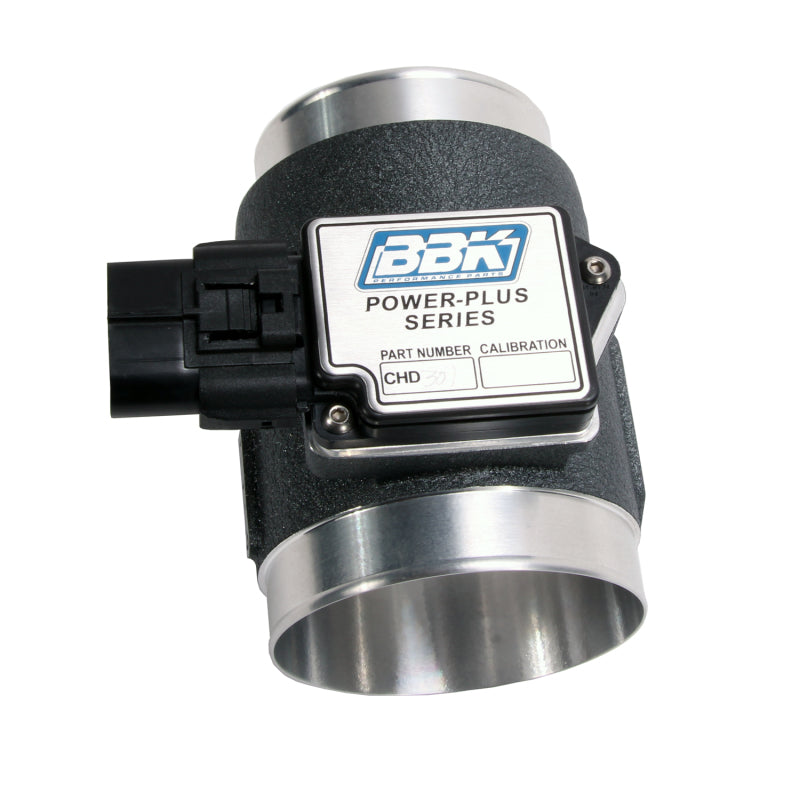

The BBK 8002 is a 76mm mass air meter (MAF) designed for 1986-1993 Fox Body Ford Mustang GT and LX models equipped with the 5.0L EFI engine and a fenderwell-style cold air intake. The stock 55mm mass air meter limits airflow to approximately 550 CFM -- the BBK unit opens that up to over 700 CFM, allowing the engine to accurately meter the increased airflow delivered by an upgraded cold air intake. Each unit starts as a 356 aluminum casting that is powder coated and then CNC machined to tight tolerances before being fitted with BBK's electronically pre-calibrated sensor module, set specifically for 19 lb/hr injectors. Dyno testing has shown gains of up to 15 RWHP over stock.

Installation is plug-and-play -- the 8002 uses the same 6-pin rectangular connector found on 1996-2004 Mustang MAFs, and BBK includes a 6-to-4-pin adapter for direct compatibility with the 1986-1993 4-pin oval harness. No special tools or ECU calibration are required. Note this is the Cold Air Calibration version, optimized for fenderwell cold air intake kits; it is not compatible with the Cobra ECM and is not CARB legal. Backed by BBK's 1-year warranty.
