BBK 18563 1-7/8" Long-Tube Headers + Catted Mid-Pipe for 2015-23 Mustang GT 5.0L

Vehicle Fitment

• 2015-2023 Ford Mustang GT (5.0 L Coyote V8)

Features

• Mandrel-bent 1-7/8" primary tubing for optimized flow
• Titanium-ceramic coating for heat resistance and durability
• High-flow catted mid-pipe (X-style) with catalytic converters
• Gasket-less ball-and-socket collector joints for precise alignment
• Patented scavenging collector design to enhance torque and efficiency
• 3/8" thick laser-cut flanges for strength and a reliable seal
• Direct bolt-on design to replace factory shorty headers and mid-pipe
• Engineered and manufactured in the USA
• 1-year limited warranty

Specifications

• Part Number: 18563
• Primary Tube Diameter: ~1.875" (1-7/8")
• Material: Steel with titanium-ceramic finish
• Mid-Pipe: X-pipe with high-flow catalytic converters
• Flange Thickness: ~0.375"
• Emissions: Not CARB-legal in some regions (check local laws)

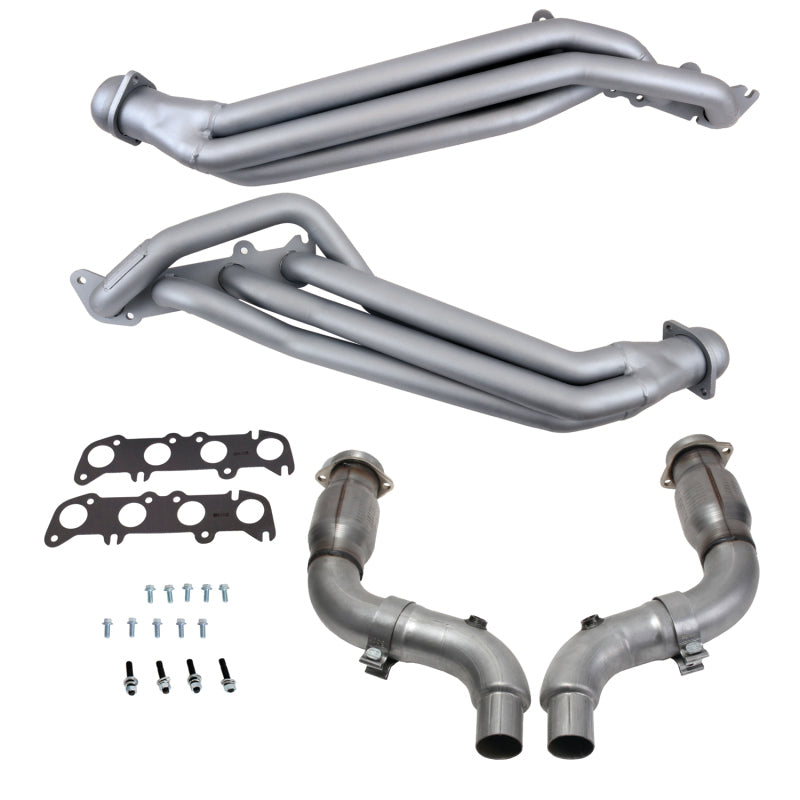

Included Components

• 1x Left long-tube header
• 1x Right long-tube header
• 1x High-flow catted mid-pipe
• Gaskets and mounting hardware
• Collector ball-and-socket connector pieces
• Installation guide

Product Description

The **BBK 18563** is a high-performance long-tube header system designed specifically for the 5.0L Coyote engine in 2015-2023 Mustang GTs. With large 1-7/8" mandrel-bent tubes and a titanium-ceramic coating, this kit offers excellent exhaust flow, heat management, and durability.

Included in the kit is a high-flow catalytic X-pipe, which helps retain emissions compliance while improving performance. The ball-and-socket collector design makes for easier installation and better alignment, while the thick flanges ensure a robust, leak-free connection. This is a bolt-on solution that works with the factory cat-back, making it ideal for those who want serious gains in power and sound without major fabrication work.
