BBK 18564 1-7/8" Long-Tube Headers + High-Flow Catted Mid-Pipe for 15,

Vehicle Fitment

• 2015-2023 Ford Mustang GT (5.0 L Coyote V8)

Features

• CNC-mandrel bent 1-7/8" primary tubing for superior exhaust flow
• Silver-ceramic finish for heat resistance and long-term durability
• Integrated high-flow catalytic converters in the mid-pipe for optimal performance and emissions
• Ball-and-socket collector design for easier installation and tight sealing
• Patented scavenging collector geometry to increase torque and efficiency
• Thick 3/8" laser-cut flanges for strong, leak-free mounting
• Gasket-less connectors between headers and mid-pipe for better alignment
• Designed to bolt directly to the factory cat-back exhaust system
• Made in the USA
• 1-year limited warranty

Specifications

• Part Number: 18564
• Primary Tube OD: 1.875" (1-7/8")
• Material: Steel with silver-ceramic coating
• Mid-Pipe: X-style with high-flow catalytic converters
• Flange Thickness: 0.375" (3/8")
• Emissions: Not CARB-legal (check local regulations)

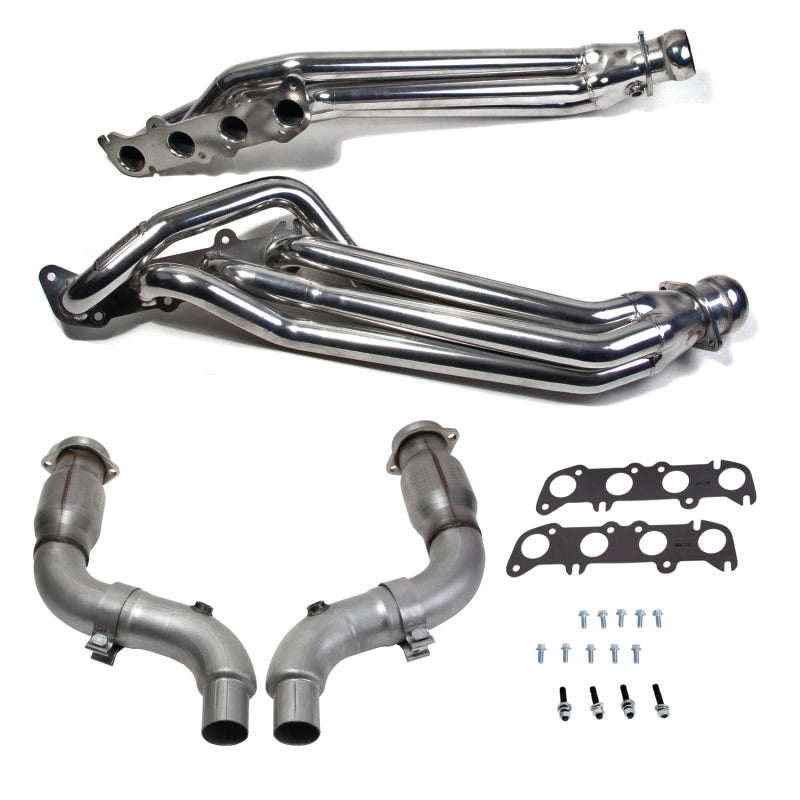

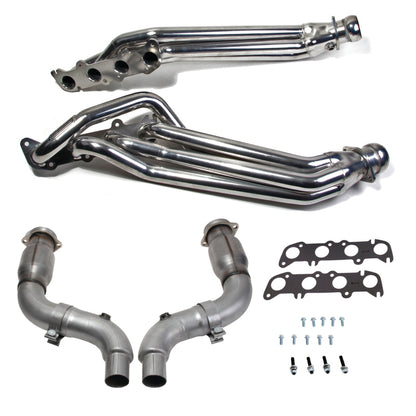

Included Components

• 1x Left long-tube header
• 1x Right long-tube header
• 1x High-flow catted mid-pipe (X-pipe)
• Gaskets and mounting hardware
• Collector ball-and-socket connector pieces
• Installation manual

Product Description

The **BBK 18564** header kit is a high-performance upgrade for 2015-2023 Mustang GTs with the 5.0L engine. Built with CNC-mandrel bent 1-7/8" tubing and a silver-ceramic finish, it's designed to dramatically improve exhaust flow while keeping under-hood temperatures in check.

Thanks to its integrated high-flow catted mid-pipe, this kit offers a refined yet aggressive sound, along with better throttle response and power gains. The ball-and-socket collectors make alignment easy, while the thick flanges provide a reliable seal. Installation is straightforward with its bolt-on design, making this a great choice for street or performance builds.
