BBK 5019 High-Flow Billet Aluminum Fuel Rail Kit for 2005-14 Dodge Hemi 5.7/6.1L

Vehicle Fitment

• 2008-2014 Dodge Challenger (5.7L Hemi V8 & 6.1L Hemi SRT8 V8, All Trims)
• 2006-2014 Dodge Charger (5.7L Hemi V8 & 6.1L Hemi SRT8 V8, All Trims)
• 2005-2008 Dodge Magnum (5.7L Hemi V8 & 6.1L Hemi SRT8 V8, All Trims)
• 2005-2014 Chrysler 300 / 300C (5.7L Hemi V8 & 6.1L Hemi SRT8 V8, All Trims)

Fitment Notes

• Passenger car applications ONLY - Does NOT fit Dodge RAM trucks (1500/2500/3500) or any truck-based platform, even if equipped with the 5.7L Hemi engine.
• Designed for factory OE-style fuel injectors - fuel injectors are NOT included in this kit. Compatible with larger aftermarket injectors commonly used in higher horsepower builds.
• Compatible with both factory stock intake manifolds and most aftermarket intake manifold replacements - no intake manifold modification required for installation.
• Recommended for higher horsepower naturally aspirated, turbocharged, supercharged, and nitrous oxide applications where larger fuel injectors are required to prevent lean conditions.
• NOT CARB Approved - cannot be sold, installed, or shipped to California residents or any state that has adopted California CARB emissions standards.

Features

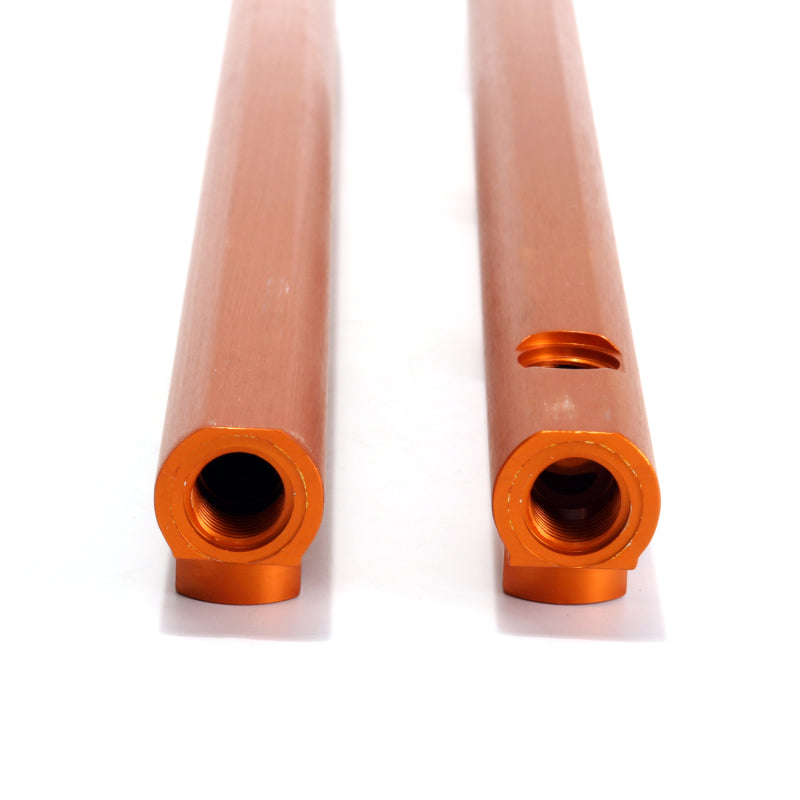

• High-flow extruded billet aluminum construction - features a larger-than-stock 1/2" internal bore diameter that significantly reduces fuel pressure drop across the rail, ensuring consistent and adequate fuel delivery to all eight injectors simultaneously at elevated power levels.

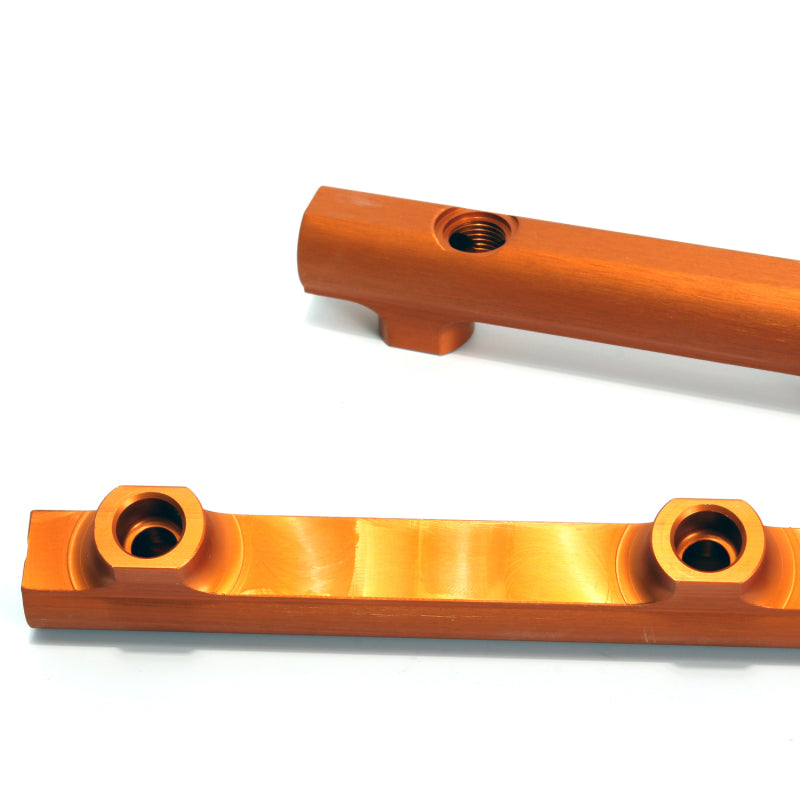

• CNC machined from aircraft-grade billet aluminum to precise tolerances - providing dimensional accuracy and surface finish that exceeds OEM steel rail quality for a guaranteed leak-free fit at factory injector O-ring interfaces.
• Hemi Orange anodized finish - both visually distinctive and functionally protective, the hard anodize coating resists corrosion, fuel degradation, and heat-related discoloration for long-term durability under engine bay conditions.
• Direct bolt-on replacement for factory steel fuel rails - installs in the exact OEM locations using the factory mounting hardware and brackets included in the kit, with no drilling, tapping, or modification to the intake manifold required.
• -6 AN O-ring inlet fittings - higher-flow inlet connections that accept aftermarket braided fuel line fittings for builds that have upgraded the fuel delivery system beyond the factory rubber line configuration.
• Full-size ports at each injector position - ensures uniform fuel pressure is maintained at all eight injector cups for even distribution across the entire engine firing order.
• Eliminates factory fuel pressure loss - the restrictive cross-section of the OEM steel rails can starve injectors under high-demand conditions; the BBK aluminum rails remove this bottleneck for naturally aspirated, forced induction, and power adder applications.
• Compatible with stock and aftermarket intake manifolds - designed to work as a drop-in replacement regardless of whether the engine uses the factory intake or an aftermarket performance manifold replacement.
• Lightweight construction - billet aluminum is significantly lighter than the factory steel fuel rails, reducing overall engine bay weight in high-performance and race-oriented builds.
• Made in the USA - designed and built domestically by BBK at their in-house manufacturing facility since 1988.

Specifications

• Part Number: 5019
• Product: High-Flow Billet Aluminum Fuel Rail Kit
• Application: 2005-2014 Dodge/Chrysler Passenger Cars - 5.7L & 6.1L Hemi V8 (Car Only - NOT for Trucks)
• Material: CNC Machined Extruded Aircraft Billet Aluminum
• Internal Bore Diameter: 1/2 inch (larger than OEM steel rail)
• Inlet Fitting Size: -6 AN O-ring
• Finish: Orange Anodized (Hemi Orange)
• Injector Compatibility: Factory OE-style injectors (injectors not included); also compatible with larger aftermarket injectors
• Intake Manifold Compatibility: Factory stock and most aftermarket intake manifolds
• Fuel Injectors Included: No
• Mounting Hardware Included: Yes
• High-Pressure Hose and Fittings: Included
• Emissions: NOT CARB Approved (not legal in California)
• Country of Origin: USA
• Warranty: 1-year manufacturer's warranty from date of purchase

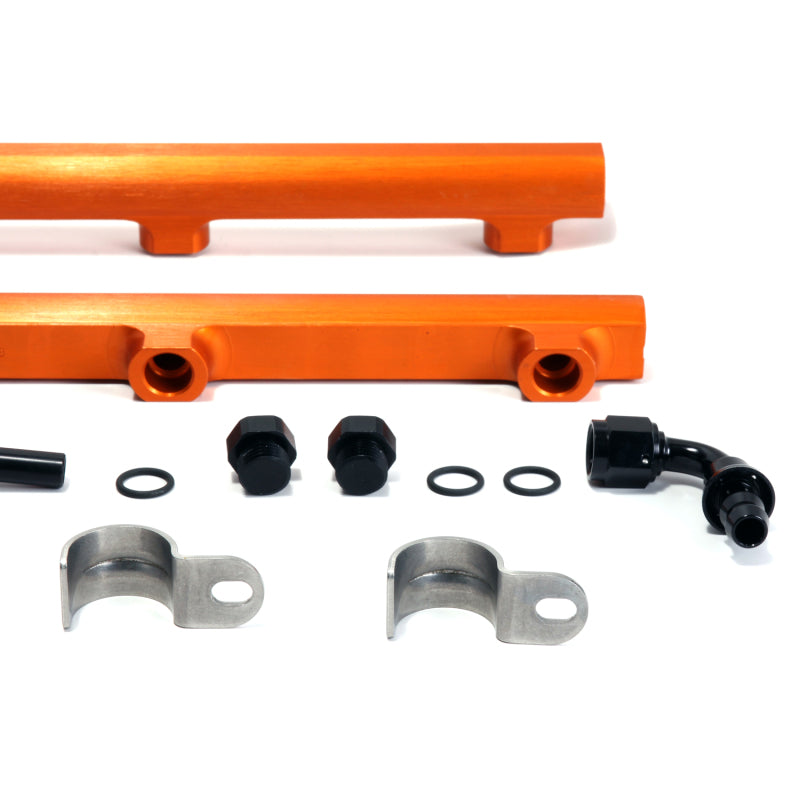

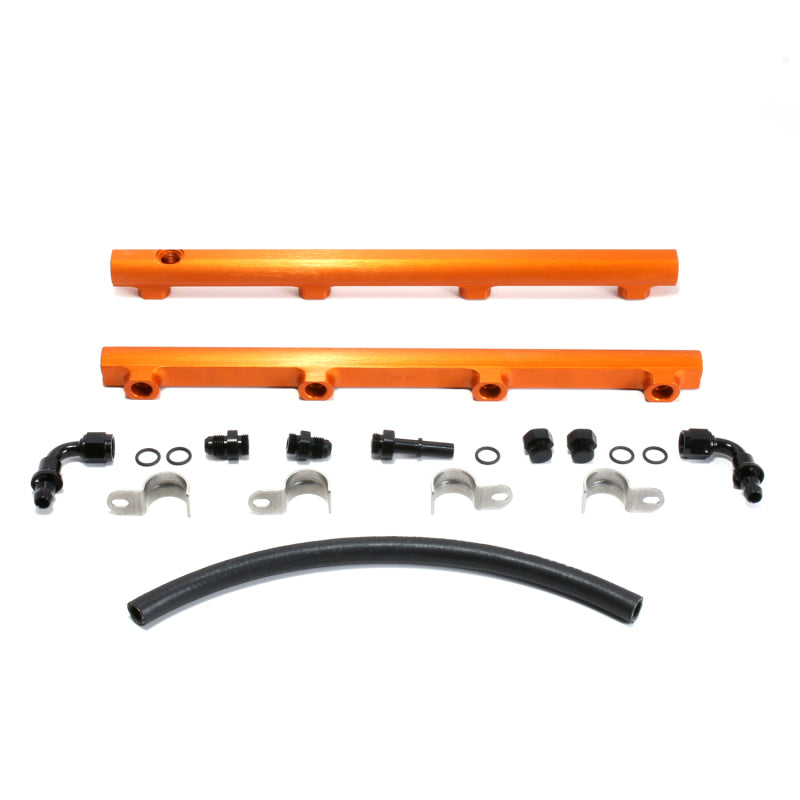

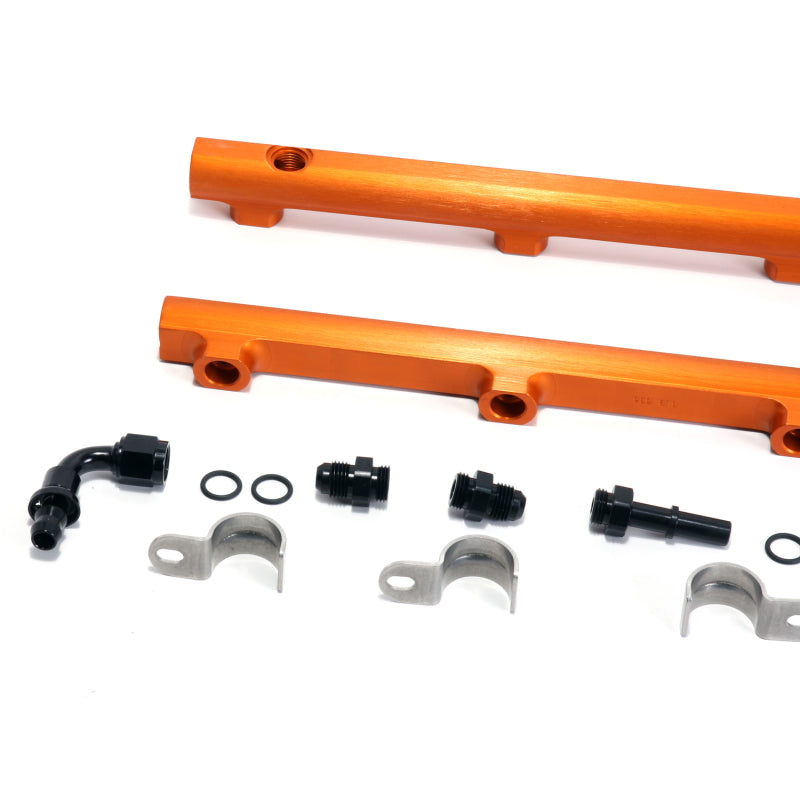

Included Components

• 2x CNC Machined Billet Aluminum Fuel Rails (Left and Right, Orange Anodized)
• 1x Set of Mounting Brackets and Hardware
• 1x High-Pressure Crossover Hose with Precision Fittings

Product Description

The BBK 5019 High-Flow Billet Aluminum Fuel Rail Kit is a direct-fit replacement for the factory steel fuel rails on 2005-2014 Dodge and Chrysler passenger cars equipped with the 5.7L or 6.1L Hemi V8 - covering the Challenger (2008-2014), Charger (2006-2014), Magnum (2005-2008), and Chrysler 300/300C (2005-2014). Where the factory steel rails restrict flow due to their smaller cross-section, the BBK billet aluminum rails feature a 1/2" internal bore diameter that eliminates this bottleneck, maintaining consistent fuel pressure across all eight injector cups simultaneously under high-demand conditions. This makes the 5019 particularly valuable in higher horsepower builds - including naturally aspirated performance engines with larger injectors, and forced induction or nitrous oxide applications - where fuel starvation can cause dangerous lean conditions and engine damage.

Each rail is CNC machined from aircraft-grade billet aluminum to precise tolerances, delivering dimensional accuracy that exceeds OEM quality and ensuring a leak-free O-ring seal at every injector cup. The Hemi Orange hard anodized finish provides corrosion resistance, heat resistance, and the distinctive appearance expected from a premium performance part in the engine bay. Installation is a direct bolt-on to the factory manifold mounting locations using the original brackets, and the kit is designed to work with both factory stock intake manifolds and most aftermarket replacement manifolds. -6 AN O-ring inlet fittings are included for compatibility with upgraded braided fuel line systems, and the high-pressure crossover hose and all required hardware are included in the box.

Important: this fuel rail kit is engineered specifically for passenger car Hemi applications and does NOT fit Dodge RAM trucks (1500/2500/3500) - even those equipped with the 5.7L Hemi. Fuel injectors are not included. This product is not CARB certified and cannot be shipped to California. Made in the USA and backed by BBK's 1-year manufacturer's warranty, the 5019 is a proven fuel system upgrade for the LX/LC platform Hemi V8 builds requiring improved fuel delivery capacity.
