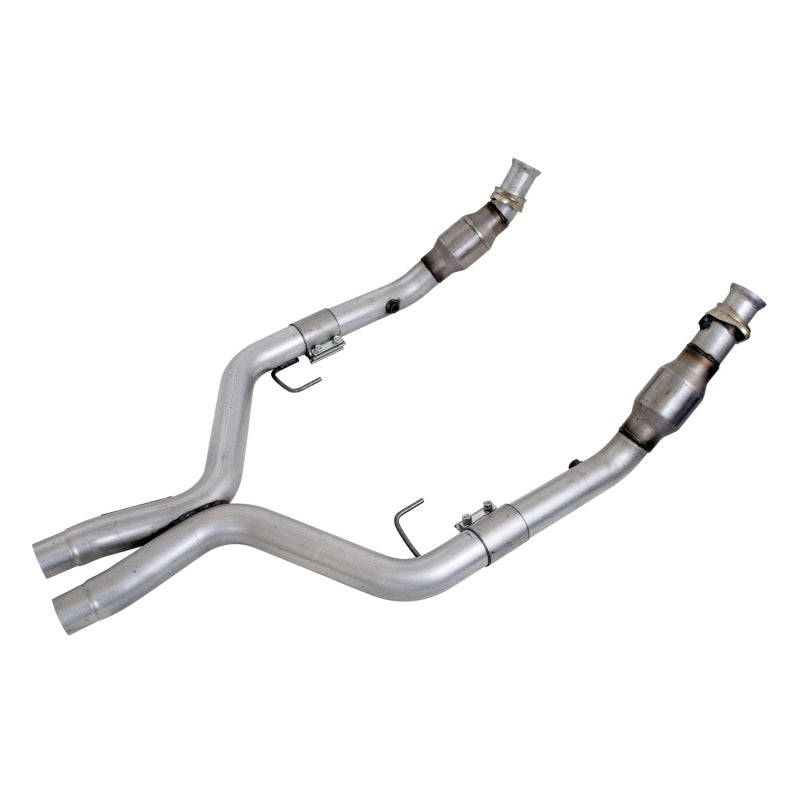

BBK 1770 Xtracter X-Pipe w/Cats 2.75 in. for 2005-2010 Ford Mustang GT 4.6L 3V

Vehicle Fitment

• 2005-2010 Ford Mustang GT (S197, 4.6L 3V SOHC V8, Coupe & Convertible, All Trims, Automatic & Manual)

Fitment Notes

• Designed for use with factory shorty exhaust manifolds or any aftermarket shorty headers - this X-pipe is NOT intended for long tube header applications. For long tube header use, see BBK part #1637.
• Factory O2 sensor bung locations are maintained - all four sensors plug in directly at the stock positions with no cutting, relocation, or extension required.
• A handheld tuner is recommended (but not always required) to disable the rear oxygen sensors and prevent catalyst under-temperature check engine light codes. The sensitive emissions monitoring on 2005-2010 models can trigger a CEL even with high-flow cats if rear O2 sensors remain active.
• 49-state legal - Federal EPA compliant (N/CE - new aftermarket converter). NOT CARB approved and not legal for sale, installation, or use in California or any state that has adopted California CARB emissions standards. These catalytic converters do not carry a CARB EO number.
• Direct replacement for the factory mid-pipe - bolts directly to factory or aftermarket shorty headers at the front and the cat-back system at the rear with no cutting or fabrication required.
• Sold as a complete kit with catalytic converters pre-installed.

Features

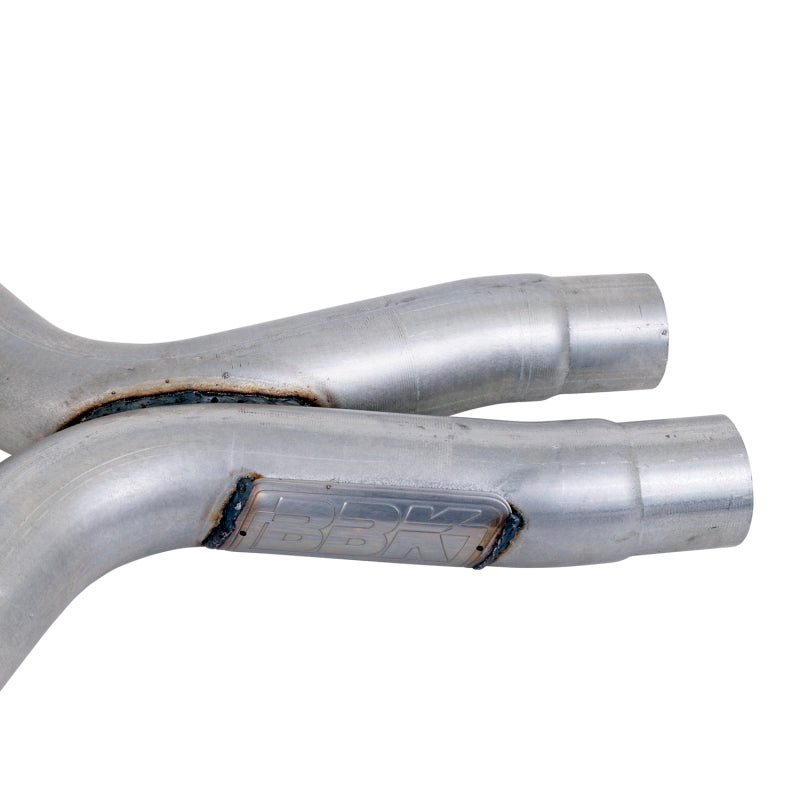

• BBK proprietary die-stamped Xtracter merged-X crossover design - the X-chamber merges exhaust pulses from both cylinder banks at the mid-pipe centerpoint, creating a balanced scavenging effect that pulls spent gases from the engine more efficiently than an H-pipe or factory mid-pipe, boosting power across the RPM range.
• Dyno-verified gains of 12-20 rear wheel horsepower and torque depending on the application and supporting modifications - tested at BBK's own in-house dynamometer facility with no reliance on theoretical projections.
• 2-3/4" (2.75") primary diameter tubing - substantially larger than the restrictive factory mid-pipe - providing increased exhaust flow volume tailored specifically to the 4.6L 3V engine's output requirements.
• 16-gauge CNC mandrel-bent aluminized mild steel construction - maintains a consistent round tube cross-section through every bend, maximizing internal flow area and minimizing turbulence across the entire system.

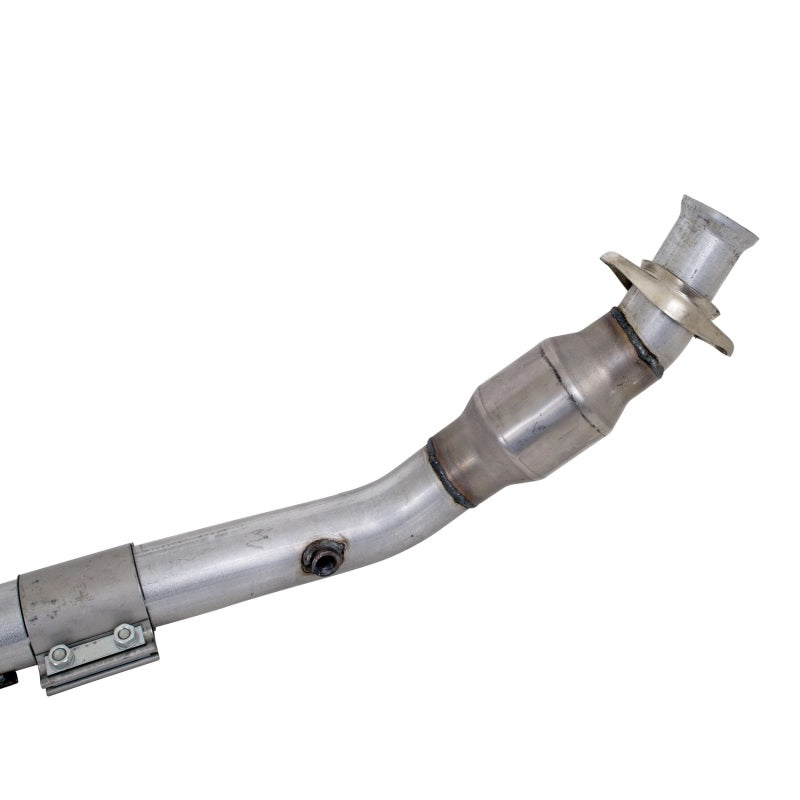

• High-flow steel substrate catalytic converters pre-installed - improve exhaust flow over the restrictive OEM cats while retaining catalytic emissions equipment, meeting Federal EPA requirements for 49-state use.
• Factory-style die-stamped flanges at both the header inlet and cat-back outlet connections - ensure a precision, leak-free seal without special gaskets or adapters on either end.

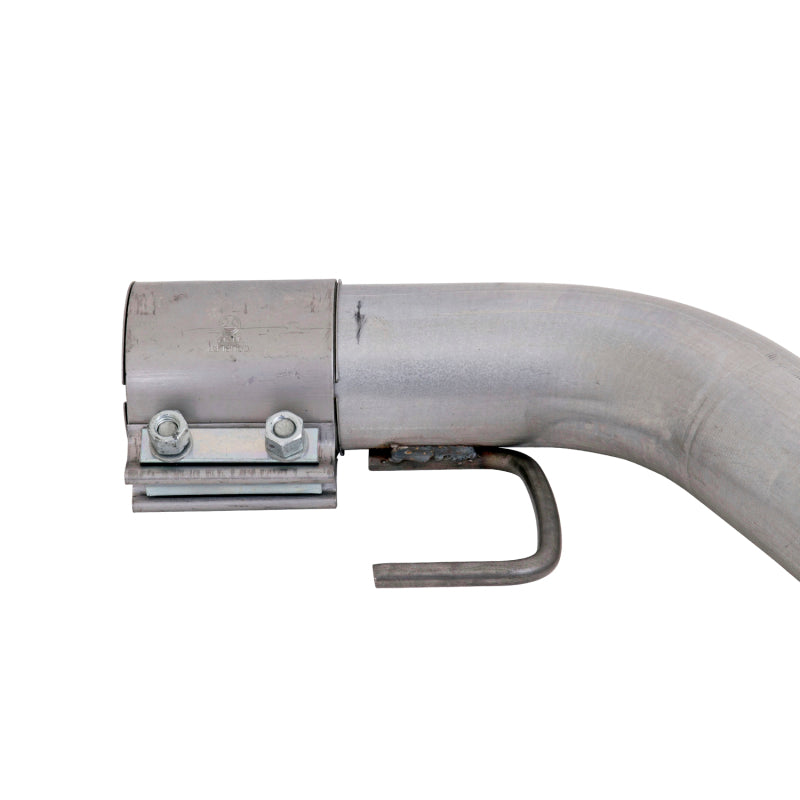

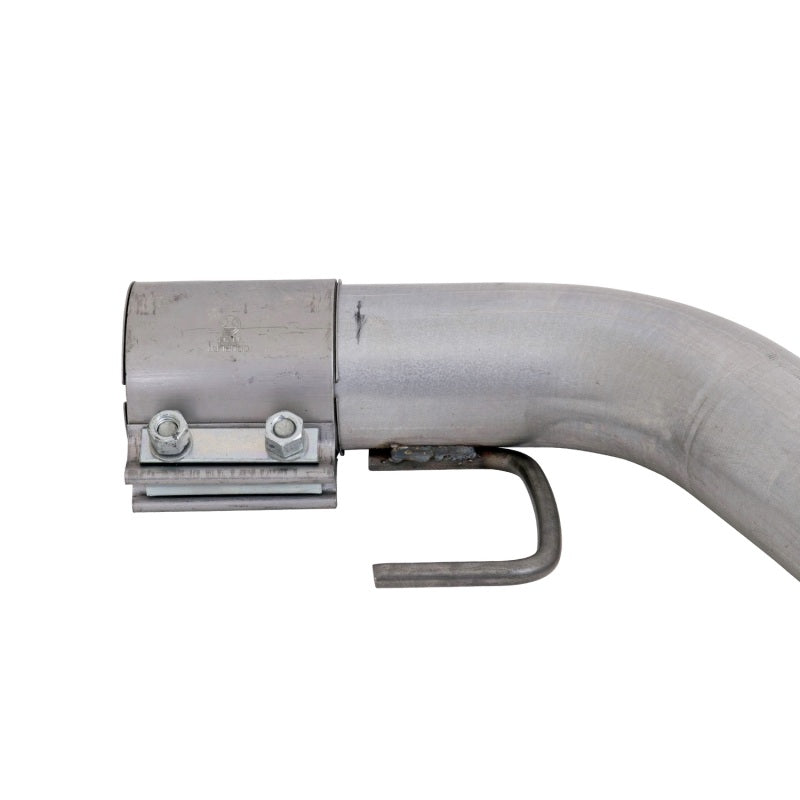

• Welded exhaust hangers pre-installed - direct bolt-on to the factory hanger locations for a clean, secure fit with no additional hardware required.
• Distinctive V8 muscle car exhaust note - the merged X crossover design delivers a deeper, more aggressive tone over the factory mid-pipe, adding character to the exhaust sound alongside the performance gains.
• Made in the USA - designed and manufactured domestically by BBK since 1988.

Specifications

• Part Number: 1770
• Product: Xtracter Series Full-Length X-Pipe with High-Flow Catalytic Converters
• Application: 2005-2010 Ford Mustang GT - 4.6L 3V SOHC V8 (S197 Platform)
• Pipe Style: Full-Length X-Pipe (Xtracter merged-X crossover design)
• Pipe Diameter: 2-3/4 inches (2.750 in.)
• Tubing Material: 16-gauge Aluminized Mild Steel
• Tubing Fabrication: CNC Mandrel-Bent
• Crossover Design: BBK Proprietary Die-Stamped Xtracter Merged-X Chamber
• Catalytic Converters: Yes - 2x High-Flow Steel Substrate Catalytic Converters (pre-installed)
• O2 Sensor Bungs: Yes - Factory Location (direct plug-in, no relocation needed)
• Exhaust Hangers: Pre-welded (factory location)
• Flange Style: Die-Stamped (factory-fit header and cat-back connection)
• Header Compatibility: Factory Shorty Headers or Any Aftermarket Shorty Headers
• Estimated Power Gain: +12-20 rear wheel horsepower and torque (dyno-verified)
• Emissions: 49-State Legal (Federal EPA N/CE compliant) - NOT CARB Approved (not legal in California)
• Package Weight: Approx. 29-35 lbs.
• Country of Origin: USA
• Warranty: 1-year manufacturer's warranty from date of purchase

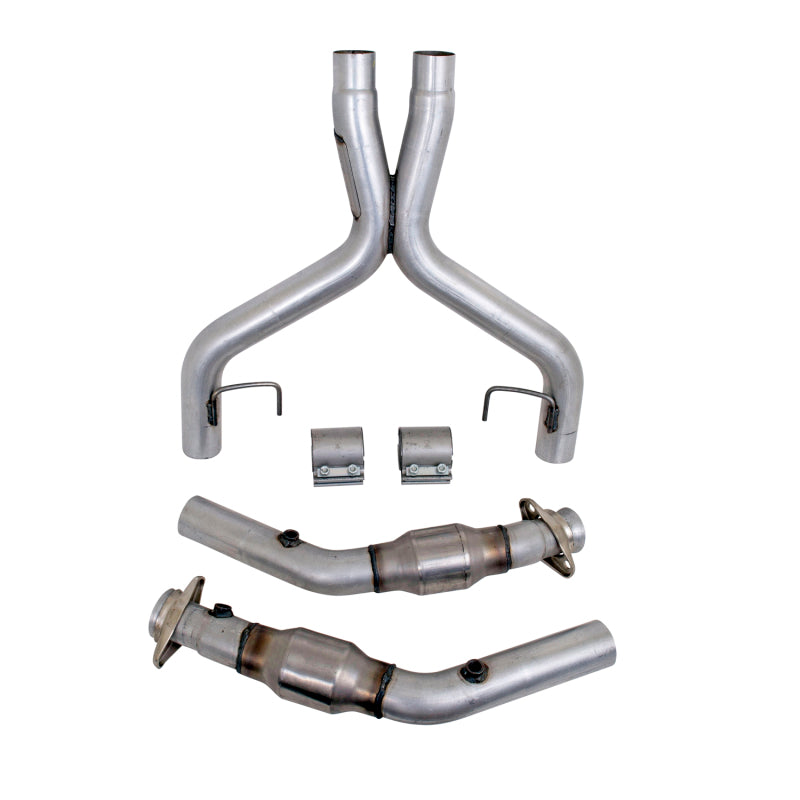

Included Components

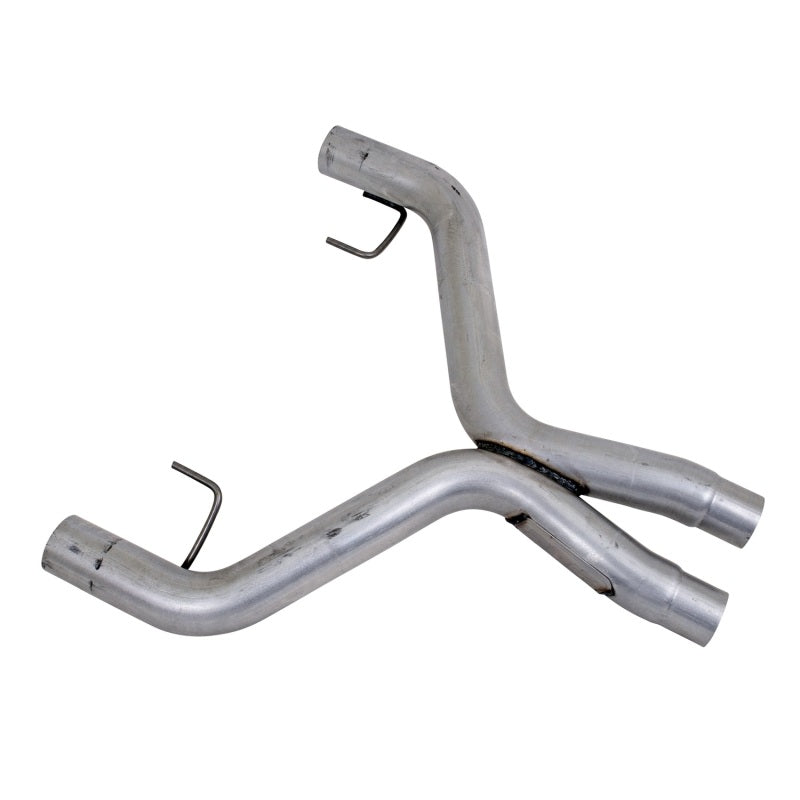

• 1x BBK Xtracter Series Full-Length X-Pipe Assembly (2-3/4" aluminized steel, complete with merged-X crossover)
• 2x High-Flow Steel Substrate Catalytic Converters (pre-installed on mid-pipe)

Product Description

The BBK 1770 Xtracter Series Full-Length X-Pipe is a direct-fit, catted mid-pipe replacement engineered specifically for the 2005-2010 Ford Mustang GT with the 4.6L 3-valve SOHC V8. It serves as a direct bolt-in replacement for the factory mid-pipe, connecting to factory shorty manifolds or any aftermarket shorty headers at the front and the existing cat-back system at the rear - with no cutting, welding, or fabrication required for standard installations. At the center of the system is BBK's proprietary die-stamped Xtracter merged-X crossover, which balances exhaust pulses from both cylinder banks and creates a scavenging effect that extracts spent gases more efficiently than the factory pipe or a standard H-pipe design. BBK's in-house dyno testing has validated gains of 12-20 rear wheel horsepower and torque depending on the application and supporting modifications.

The 1770 is constructed from 16-gauge, 2-3/4" CNC mandrel-bent aluminized mild steel - larger in diameter than the factory pipe - ensuring a consistent internal diameter through every bend for maximum exhaust gas velocity and minimal turbulence. Factory-style die-stamped flanges at both ends and factory O2 sensor bung locations make installation straightforward, with all four oxygen sensors plugging in at their original positions. Two high-flow steel substrate catalytic converters are pre-installed, meeting Federal EPA requirements for new aftermarket converters and qualifying the system as 49-state legal. Pre-welded exhaust hangers align directly with the factory mount points for a secure, rattle-free fit.

One important installation note for 2005-2010 Mustang GT owners: due to the sensitive emissions monitoring architecture on the S197 platform, a handheld tuner is recommended (though not always required) to disable the rear oxygen sensors and prevent catalyst under-temperature check engine light codes, even when using high-flow catalytic converters. This product is not CARB certified and cannot be sold, installed, or used in California or any state following California emissions standards. Made in the USA and backed by BBK's 1-year manufacturer's warranty, the 1770 is one of the most popular shorty-header mid-pipe upgrades for the S197 4.6L 3V GT platform.
