Banks 66420 AirMouse Ambient Air Density Sensor Module for Banks iDash

Vehicle Fitment

• Universal - compatible with any vehicle running the Banks iDash 1.8 Super Gauge/DataMonster; not vehicle-specific

Fitment Notes

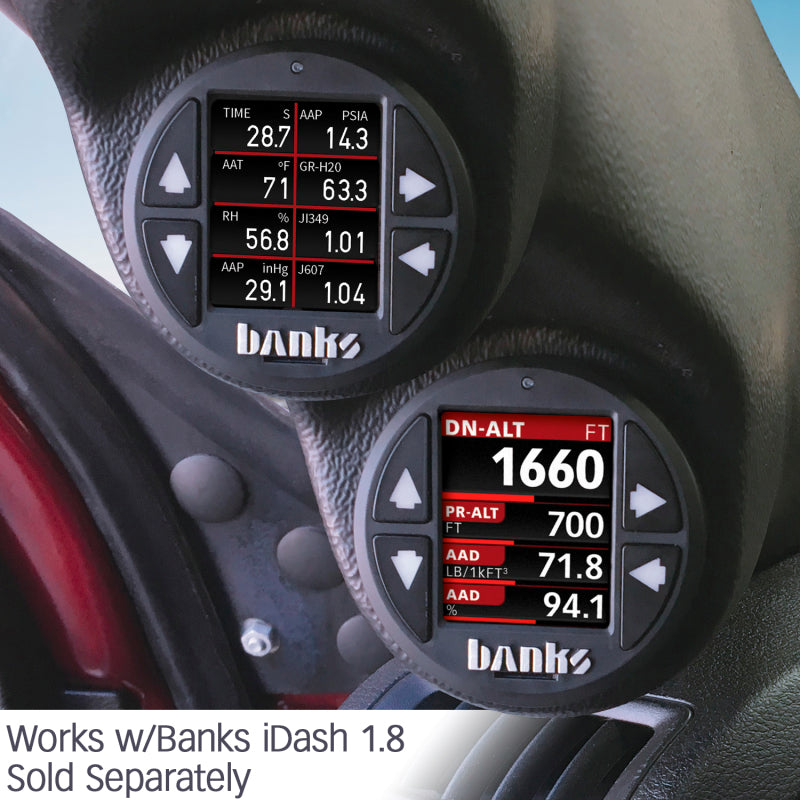

• iDash sold separately
• Requires Banks Starter Cable PN 61301-20, unless a Derringer or other B-Bus module is already installed
• Install time approximately 0.5 hour

Features

• Measures ambient temperature, pressure, and humidity for true air density calculation
• Rugged, waterproof, military-grade construction with a Gor-Tex vent
• Sends data over the Banks Bus Network to the iDash for real-time monitoring and data logging
• Adds 15 new parameters to iDash, including AAD, BAD, and MAD calculations

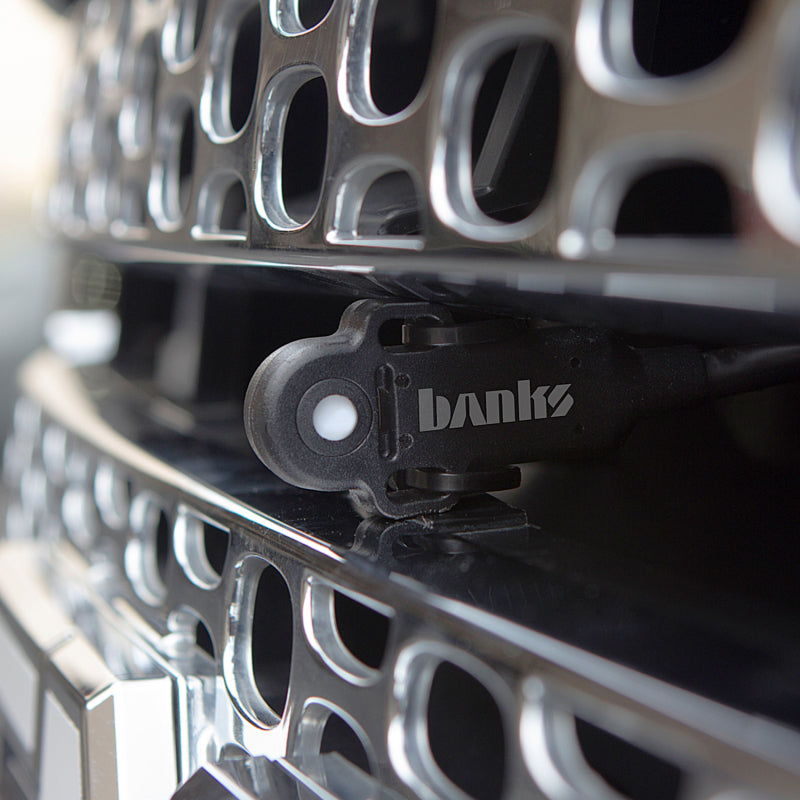

• Mounts in the grille or directly in the air intake system

Specifications

• Measured Parameters: Ambient Temperature, Pressure, Humidity
• Construction: Waterproof, Gor-Tex Vented
• Connectivity: Banks Bus Network

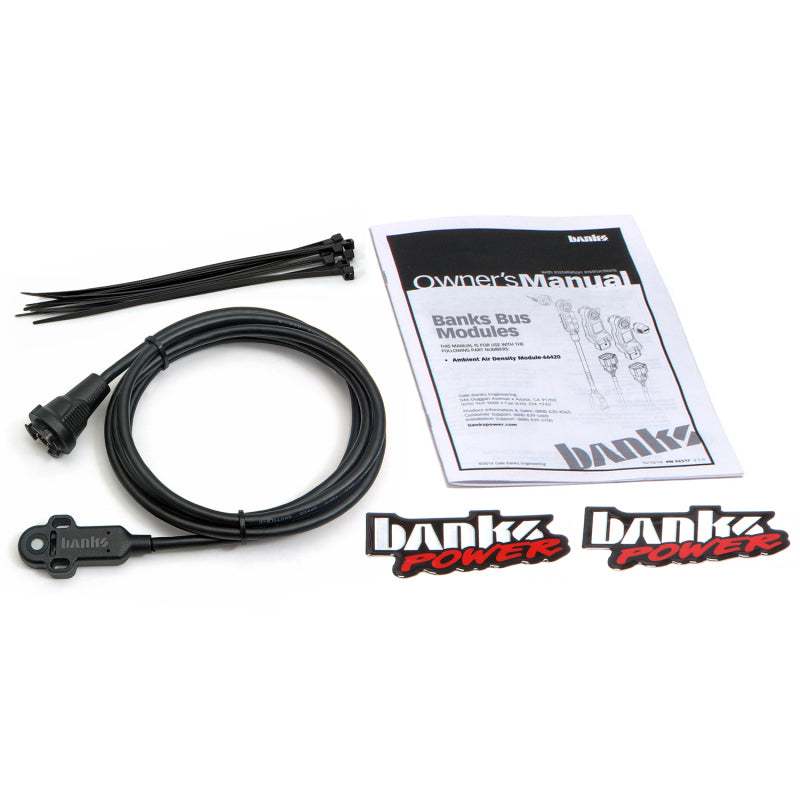

Included Components

• 1x AirMouse Sensor Module

Product Description

The AirMouse turns an iDash-equipped vehicle into a portable weather station, measuring the ambient temperature, pressure, and humidity that determine how much power an engine can actually make on a given day. Denser, cooler air means more available horsepower - the AirMouse quantifies exactly how much is on the table.

Racers use it to explain why the same car runs quicker or slower on different days with no mechanical changes, while tuners and engine builders use its calculated Ambient, Boost, and Manifold Air Density parameters to evaluate turbo and intercooler efficiency. It's a Banks-exclusive capability no other gauge on the market offers.
