Banks Power 26014 Boost Tube System 3.5" Ford Super Duty 6.7L High Output Power

Vehicle Fitment

• 2023-2026 Ford F-250 Super Duty (6.7L High Output Power Stroke Diesel)
• 2023-2026 Ford F-350 Super Duty (6.7L High Output Power Stroke Diesel)
• 2023-2026 Ford F-450 Super Duty (6.7L High Output Power Stroke Diesel)

Fitment Notes

• For 6.7L High Output (HO) Power Stroke only - this kit does NOT fit the standard (non-HO) 6.7L Power Stroke; for the non-HO 2023+ 6.7L Power Stroke, see Banks 26008
• Does NOT fit 2023+ Cab & Chassis configurations - Cab & Chassis trucks have an additional oil separator line connected to the cold side boost tube that conflicts with this kit
• Verify your engine badge or VIN to confirm High Output designation before ordering
• Works with stock Power Stroke intake manifold, intercooler, and throttle body - no intake or intercooler modification required
• Estimated installation time: approximately 2 hours
• 50-state compliant (California EO pending for 2025-2026 models at time of listing)

Features

• Constant 3.5-inch diameter mandrel-bent aluminized steel tubes - 40% larger diameter than the stock 2.5-inch plastic and steel factory tubes, eliminating the crushed bends and flow restrictions that reduce performance
• Smooth mandrel bends maintain consistent internal diameter throughout - reduces boost pressure drop across the hot and cold side intercooler piping for faster turbo spool and improved throttle response
• Powder-coated aluminized steel construction - resistant to corrosion, heat, and high-pressure boost without cracking or bursting under extreme conditions
• Proprietary billet aluminum venturi couplers at the turbocharger outlet and throttle body connection - maintains boost pressure and volumetric flow at critical connection points
• 5-ply heavy-duty silicone couplers - withstand sustained high-boost, high-temperature charge air without the failure risk of the factory plastic components
• Spring-loaded constant tension clamps - maintain a secure, leak-free seal as boost tubes expand and contract with temperature cycling
• Complete hot-side and cold-side system in one kit - replaces both intercooler pipes for a full charge air cooler piping upgrade in one installation

Specifications

• Tube Diameter: 3.5 inches (constant throughout)
• Tube Material: Mandrel-bent aluminized steel, powder-coated
• Couplers: Proprietary billet aluminum venturi adapters + 5-ply silicone hoses
• Clamps: Spring-loaded constant tension
• Kit Coverage: Full system (hot side + cold side)
• Compatible Engine: 6.7L High Output Power Stroke Diesel
• Estimated Install Time: ~2 hours

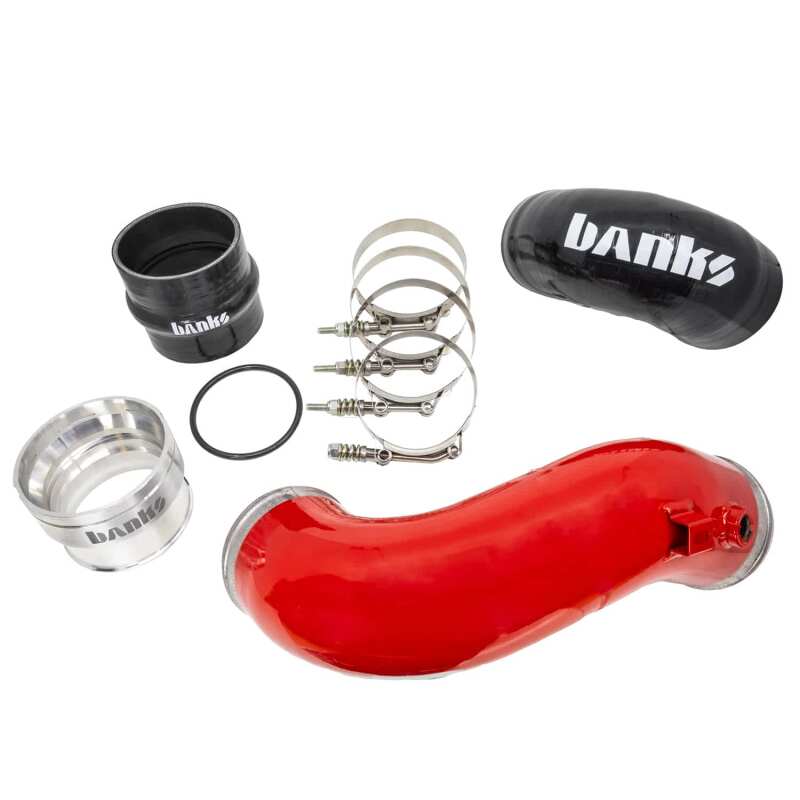

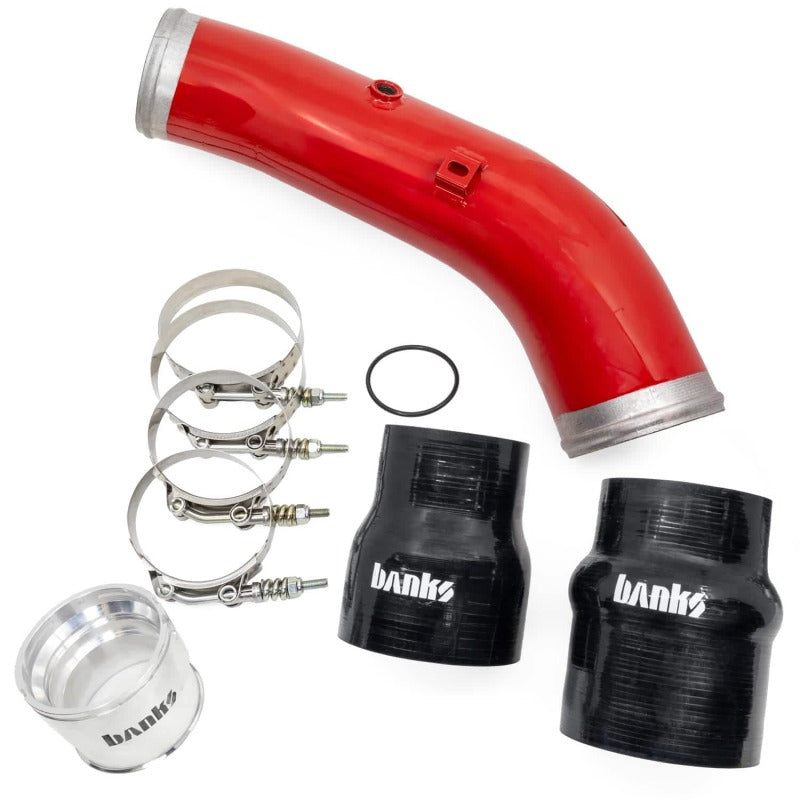

Included Components

• Hot-side boost tube (turbo to intercooler)
• Cold-side boost tube (intercooler to throttle body)
• Billet aluminum venturi couplers
• 5-ply silicone couplers/hoses
• Spring-loaded constant tension clamps
• All necessary hardware

Product Description

The Banks Power 26014 is a complete hot-side and cold-side boost tube system engineered specifically for the 2023-2026 Ford F-250/F-350/F-450 Super Duty equipped with the 6.7L High Output Power Stroke diesel. The factory intercooler piping on these trucks uses 2.5-inch diameter tubes with crushed bends, restrictive flow paths, and plastic components prone to cracking under the heat and pressure of the high-output diesel application. Banks replaces the entire charge air cooler piping system with 3.5-inch constant-diameter mandrel-bent aluminized steel tubes - 40% larger and far more durable than stock.

The result is reduced boost pressure drop across the intercooler circuit, faster turbocharger spool-up, improved throttle response, and eliminated risk of factory boost tube failure. The kit uses proprietary billet aluminum venturi couplers at the turbo outlet and throttle body connections, along with 5-ply silicone hoses and spring-loaded constant tension clamps throughout. It works with the stock Power Stroke intake manifold, intercooler, and throttle body with no additional modifications required.

Important: This kit is for the 6.7L High Output engine only - it does not fit the standard (non-HO) 6.7L Power Stroke. It also does not fit 2023+ Cab & Chassis trucks, which have an additional oil separator line on the cold side. Verify your engine designation before ordering. For the non-HO 2023+ 6.7L Power Stroke, see Banks 26008.
