Baja Designs 677815 XL80 LED Lights Pair Amber Wide Cornering 9500 Lumens

Vehicle Fitment

Universal - fits trucks, Jeeps, SUVs, UTVs, ATVs, motorcycles, and off-road vehicles

Fitment Notes

• Universal mounting with included stainless steel brackets
• 12V DC electrical system required
• Wiring harness included for direct installation
• Compatible with Baja Designs vehicle-specific mounting kits (sold separately)
• Off-road use only - not DOT approved for on-road use
• uService compatible - lenses and optics are user-replaceable to change beam pattern or color

Features

• Baja Designs XL80 Series high-output LED auxiliary lights
• Wide Cornering beam pattern with 44° flattened horizontal spread for dust, fog, and low-visibility conditions
• Amber lens reduces glare in challenging conditions including rain, snow, fog, and dust
• 9,500 lumens per light (19,000 lumens total per pair) using 4 Cree XHP50 LEDs
• 5000K daylight color temperature reduces driver fatigue
• 20% dimming feature via optional toggle or push button switch
• ClearView multiform optics for precise beam control
• CopperDrive technology - LEDs driven at 100% output
• MoistureBlock technology prevents water intrusion
• Built-in overvoltage protection and thermal management microprocessor
• Hard anodized and powder coated aircraft-grade cast aluminum housing
• Billet machined aluminum bezel
• Hard coated polycarbonate lens for impact resistance
• Stainless steel mounting hardware and brackets
• IP69K rated - waterproof and submersible to 9 feet, pressure washable
• Exceeds MIL-STD810G military specification testing
• IK10 compliant mechanical impact testing

Specifications

• Brand: Baja Designs
• Part Number: 677815
• UPC: 819314022130
• Series: XL80
• Lens Color: Amber (Baja Amber)
• Beam Pattern: Wide Cornering (44° horizontal)
• Lumens Per Light: 9,500
• Total Lumens (Pair): 19,000
• LED Type: (4) Cree XHP50 per light
• Color Temperature: 5000K Daylight
• Wattage: 80W per light
• Amperage: 5.50A per light
• Operating Voltage: 12V DC
• Dimensions (per light): 4.43" W x 4.43" H x 3.65" D
• Weight (per light): 2.45 lbs
• Kit Weight: 7.6 lbs
• LED Life Expectancy: 49,930 hours
• Front Lens: Hard Coated Polycarbonate
• Housing: Aircraft-Grade Cast Aluminum (hard anodized, powder coated)
• Bezel: Billet Machined Aluminum
• Hardware/Brackets: Stainless Steel
• Waterproof Rating: IP69K (submersible to 9 ft)
• Impact Rating: IK10 Compliant
• Military Spec: Exceeds MIL-STD810G
• Quantity: Pair (2 lights)
• Warranty: Limited Lifetime
• Satisfaction Guarantee: 30-Day Money Back
• Country of Origin: USA

Included Components

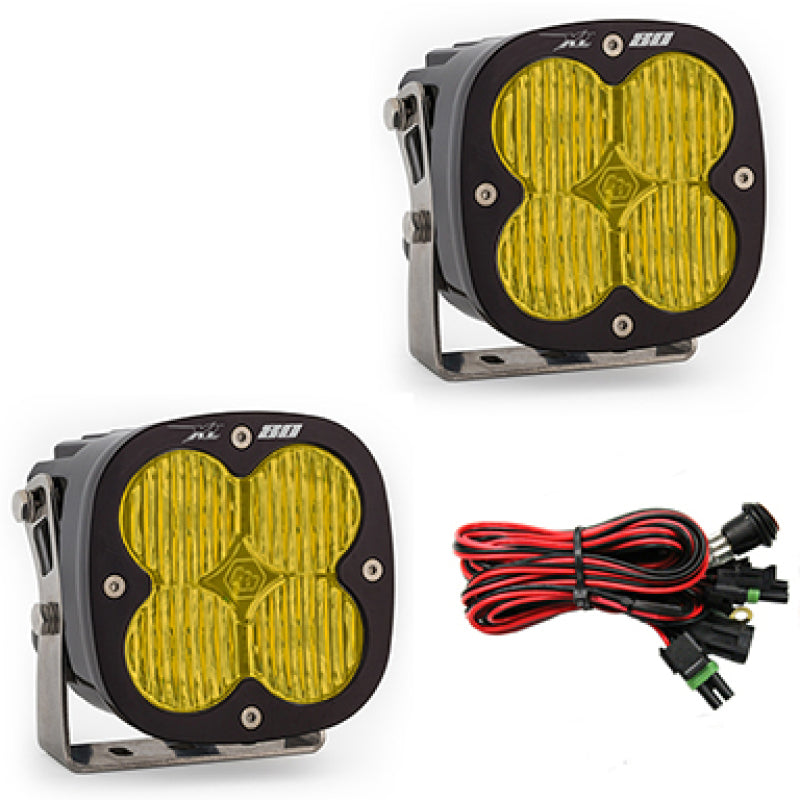

• (2) Baja Designs XL80 LED lights (Amber Wide Cornering)
• (2) Baja Designs XL mounting brackets
• (1) Wiring harness
• (1) Mounting hardware kit (stainless steel)

Product Description

The Baja Designs 677815 XL80 LED light pair delivers exceptional off-road illumination with 19,000 total lumens from two compact 4.43" housings. The amber Wide Cornering beam pattern produces a 44° flattened horizontal spread specifically engineered for visibility in dust, fog, snow, rain, and other low-visibility conditions where standard white lights cause excessive glare. Each light utilizes four Cree XHP50 LEDs driven at full output through Baja Designs' CopperDrive technology, with an aircraft-grade aluminum housing that exceeds military MIL-STD810G specifications and carries IP69K waterproof certification. The included wiring harness and stainless steel mounting hardware enable straightforward installation on virtually any off-road vehicle. Backed by Baja Designs' 30-day satisfaction guarantee and limited lifetime warranty.
