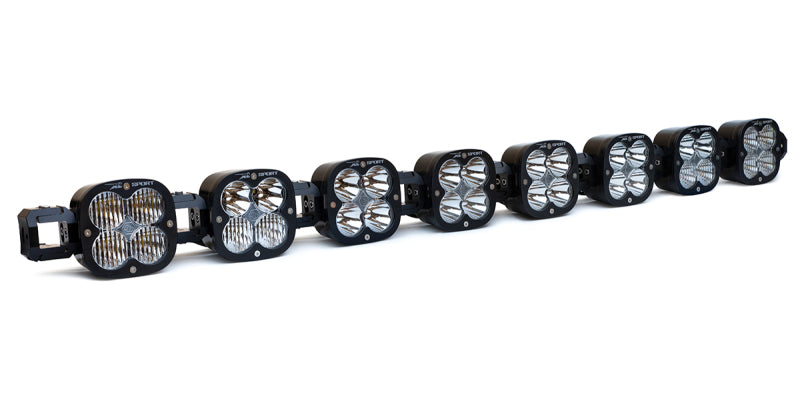

Baja Designs 740006 XL Linkable 8 XL LED Light Bar 25200 Lm Clear

Vehicle Fitment

• Universal Fit - compatible with any truck, Jeep, SUV, UTV, ATV, off-road vehicle, motorcycle, marine, agricultural, military, or industrial application. No vehicle-specific fitment restrictions apply.

Fitment Notes

• Universal surface mount brackets are included and are compatible with bumpers, roof bars, and roll cages across all vehicle types and sizes.
• A pre-load support bracket is included to prevent vibration-induced flex at the center of the light bar in extreme terrain - essential for long-bar configurations.
• The system is fully expandable: the XL Linkable platform supports 3 to 8 XL Sport pods. Additional links can be added down the road to grow the system without replacing wiring or hardware.
• This SKU (740006) is the maximum 8 XL Sport configuration with Clear lenses. Smaller configurations (3-7 pod) are available under separate SKUs.
• Wiring harness is included with this kit - no separate harness purchase required.

Features

• Multi-pattern optic system illuminates Lighting Zones 1, 2, 3, and 4 simultaneously using a combination of Wide Cornering (44°), Driving/Combo, and High Speed Spot (6°) lenses - providing near-field, lateral, mid-range, and long-range coverage in a single assembled bar.
• 45 degrees of vertical pitch adjustment per individual pod or across the entire unit - locks in the optimal beam angle regardless of mount location or vehicle geometry.
• Completely independent horizontal adjustment per pod allows the bar to be configured as a straight or arced unit, matching the contour of any bumper, roofline, or grille guard.
• Each XL Sport pod delivers 3,162 raw lumens from next-generation LEDs; at full 8-pod configuration, the total output reaches 25,200 lumens at 208W.
• Built around the popular XL Sport shallow moto housing - proven in the most demanding motorsports environments - providing a low-profile, race-validated foundation for each pod.
• uService® field-serviceable design allows lenses and optics to be replaced or swapped per pod without voiding the warranty - enabling pattern customization and damage repair in the field.
• ClearView® optical system directs all available light precisely forward, eliminating spill and wasted output.
• MoistureBlock® technology ensures waterproof performance even if the power cord is cut - exceeds standard IP69K requirements.
• BMT Battery Management Technology protects vehicle wiring from voltage spikes, eliminates LED flickering at low voltage, and safeguards the system's electrical components.
• Wiring comes fully crimped, trimmed, and plug-and-play ready from the factory - no field splicing or custom wiring required at installation.

Specifications

• Part Number: 740006
• Product: XL Linkable LED Light Bar - 8 XL Sport Configuration
• Lens Color: Clear
• Beam Pattern: Multi-Pattern (Wide Cornering + Driving/Combo + High Speed Spot - Zones 1, 2, 3 & 4)
• Wide Cornering Spread: 44° Horizontal
• High Speed Spot Angle: 6°
• Total Lumens: 25,200 raw lumens (3,162 per XL pod x 8)
• LED Quantity: 32 (4 per pod x 8 pods)
• Wattage: 208W total
• Amperage: 16A
• LED Life Expectancy: 49,930 hours
• Lens Material: Hardcoated Polycarbonate
• Housing Material: Hard Anodized and Powder Coated Cast Aluminum
• Bezel Material: Billet Machined Aluminum
• Hardware / Bracket Material: Stainless Steel
• Housing Color: Black
• Assembled Dimensions: 51.52 in. (L) x 4.43 in. (H) x 2.8 in. (D)
• IP Rating: IP69K (waterproof up to 9 ft., pressure washable)
• Impact Rating: IK10 Compliant (mechanical impact testing)
• Durability Standard: Exceeds MIL-STD-810G (Mil-Spec Testing)
• Overvoltage Protection: Built-In
• Lighting Type: Forward Projecting
• Wiring Harness: Included (On/Off, pre-crimped and trimmed)
• Fitment: Universal
• Warranty: Limited Lifetime / 30-Day Money Back Satisfaction Guarantee

Included Components

• 8x XL Sport LED Light Pods (Clear lens, multi-pattern)
• 8x Black Rock Guards (one per pod)
• 1x Set of Link Hardware (connects pods into assembled bar)
• 2x Universal Surface Mount Brackets with Stainless Steel Hardware
• 1x Pre-Load Support Bracket (center vibration stabilizer)
• 1x On/Off Wiring Harness (fully pre-crimped and trimmed)

Product Description

The Baja Designs XL Linkable LED Light Bar (740006) in the 8 XL Clear configuration is the most capable and fully assembled version of Baja Designs' premium modular lighting platform, delivering 25,200 raw lumens across 51.52 inches from eight XL Sport pods. Built around the XL Sport's proven shallow moto housing - the same architecture used in Baja Designs' motorcycle and motorsports lighting - each pod contributes 3,162 lumens through next-generation LEDs, and the multi-pattern optic arrangement simultaneously illuminates Lighting Zones 1 through 4, combining Wide Cornering (44°), Driving/Combo, and High Speed Spot (6°) coverage for a single system that handles near-field peripheral vision, mid-range road or trail coverage, and long-distance obstacle detection all at once.

What separates the XL Linkable from conventional fixed LED bars is its full articulation system: each pod has 45 degrees of independent vertical pitch adjustment, and each pod has completely independent horizontal adjustment, allowing the bar to be configured in a straight line or custom arc to match the contour of any bumper, hood, or roof. The pre-load support bracket prevents flex and vibration fatigue at the assembly's center point under hard off-road use, while the wiring arrives fully pre-crimped and trimmed from the factory - installation requires no field splicing. Baja Designs' uService® technology allows individual pod lenses to be swapped or replaced in the field without voiding the warranty, and the system's expandable architecture means additional pods and links can be added later without purchasing a new harness or hardware kit.

The 740006 is rated IP69K for submersion up to 9 feet and pressure washing, IK10 for mechanical impact resistance, and exceeds MIL-STD-810G environmental durability testing. MoistureBlock® keeps the system sealed even through compromised wiring, and BMT Battery Management Technology protects the vehicle electrical system from current spikes and voltage fluctuations. All hardware is stainless steel, the housing is hard-anodized and powder-coated cast aluminum, and the bezel is billet machined aluminum. This kit includes the wiring harness, mounting brackets, rock guards, pre-load bracket, and all link hardware - everything needed for a complete installation out of the box. Backed by Baja Designs' Limited Lifetime Warranty and 30-Day Satisfaction Guarantee.
