Baja Designs 587803 Squadron-R Sport LED Pods Driving/Combo Clear Pair 3150 Lm

Vehicle Fitment

• Universal - fits any truck, Jeep, SUV, UTV, or off-road vehicle with available mounting locations or aftermarket bumpers with a 4 in. round hole

Fitment Notes

• Universal fitment - not vehicle-specific; compatible with virtually any platform
• Optimized for aftermarket bumpers featuring a 4 in. round hole cutout
• For off-road use only - buyer is responsible for compliance with all applicable road safety laws and regulations

Features

• Driving/Combo beam pattern - combines 42° wide cornering optics and 9° spot optics for maximum trail coverage in a single light
• 3,150 lumens from 4 LEDs for powerful, wide-area illumination
• 5000K daylight color temperature - reduces driver fatigue and improves terrain recognition
• ClearView® optics custom-engineered for precise, efficient light distribution
• MoistureBlock™ technology - IP69K rated, waterproof up to 9 ft. and pressure washable
• CopperDrive® technology drives every LED at 100% power for maximum output and longevity
• uService® design - replaceable lenses and optics for field serviceability
• Exceeds MIL-STD-810G military-spec testing standards
• IK10 compliant for mechanical impact resistance
• Built-in overvoltage protection
• LED life expectancy of approximately 49,930 hours
• Limited Lifetime Warranty and 30-Day Satisfaction Guarantee

Specifications

• Beam Pattern: Driving/Combo (42° Wide Cornering + 9° Spot)
• Lumens: 3,150 (4 LEDs)
• Wattage/Amps: 26W / 2A
• Color Temperature: 5000K Daylight
• Lens Color: Clear
• Dimensions: 3.5 in. x 2.77 in. x 3.5 in.
• Weight: 12 oz. per light
• Housing: Powder Coated Cast Aluminum (Black)
• Bezel: Billet Machined Aluminum (3.5 in. round)
• Lens Material: Hard Coated Polycarbonate
• Hardware/Bracket Material: Stainless Steel
• IP Rating: IP69K (Waterproof up to 9 ft., Pressure Washable)
• LED Life Expectancy: ~49,930 Hours
• Quantity: Sold as a Pair

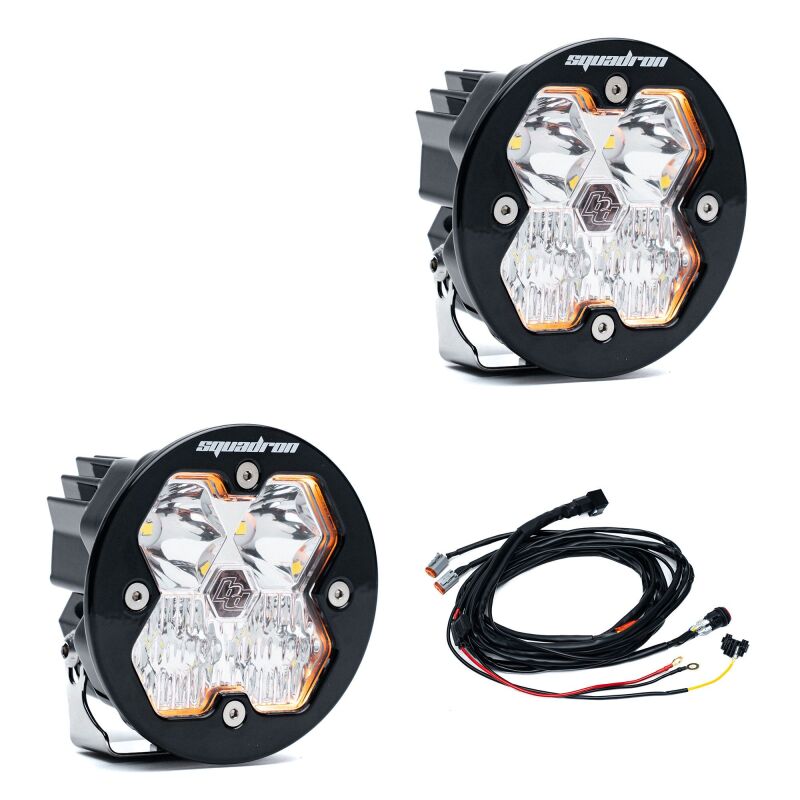

Included Components

• 2x Squadron-R Sport LED Light Pods (Black Housing, Clear Lens)
• 2x Mounting Brackets
• 1x Wiring Harness

Product Description

The Baja Designs 587803 Squadron-R Sport LED Light Pods deliver race-proven off-road illumination in a compact, traditional round housing built for trucks, Jeeps, UTVs, and any platform that demands reliable auxiliary lighting. The Driving/Combo beam pattern combines 42° wide cornering optics with a 9° spot for a smooth blend of near-field coverage and long-distance illumination - maximum trail coverage from a single pod. With 3,150 lumens from 4 LEDs and a 5000K daylight color temperature, these lights cut through darkness without driver fatigue.

Built to endure the harshest conditions, the Squadron-R Sport is IP69K rated, pressure washable, and exceeds MIL-STD-810G military spec testing. CopperDrive® drives each LED at 100% power, and uService® makes lens and optic replacement fast and tool-free. Optimized for aftermarket bumpers with 4 in. round holes, installation is straightforward with the included wiring harness and stainless steel mounting hardware. Backed by Baja Designs' Limited Lifetime Warranty and 30-Day Satisfaction Guarantee.
