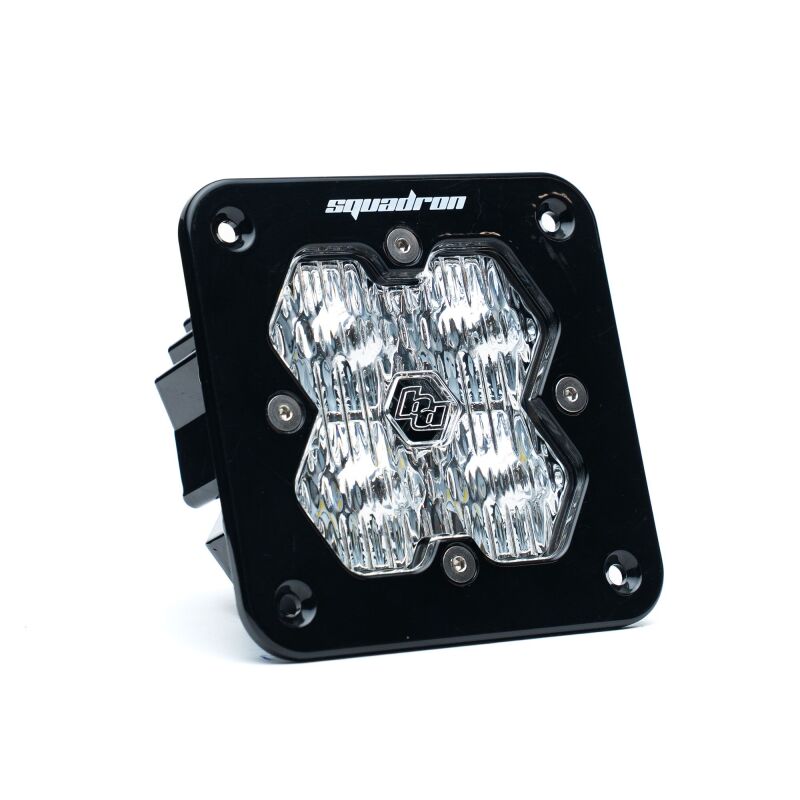

Baja Designs 5510052 Squadron Sport Black Flush Mount LED Wide Cornering Pod

Vehicle Fitment

• Universal - Fits Trucks, Jeeps, SUVs, UTVs, ATVs, and Off-Road Vehicles

Fitment Notes

• Flush mount design requires a flat or recessed mounting surface such as a bumper cutout or fog light recess; not a standard bracket-mount pod
• Wiring harness (part# 640117) sold separately - not included with this light
• Wide Cornering pattern is best paired with a Spot or Driving/Combo light for complete trail coverage
• Note: The Squadron Sport product line has been discontinued by Baja Designs as of April 2026; verify current availability before purchase
• Not E-approved; verify local regulations before on-road use

Features

• Flush mount housing integrates cleanly into bumper cutouts, ditch mounts, and recessed fog light openings for a low-profile installation
• Wide Cornering beam pattern (42° flattened horizontal) expands peripheral vision to eliminate tunnel vision in corners, dust, and fog
• Outputs 3,162 lumens using 4 Cree LEDs at 26W for strong lateral illumination at an accessible price
• ELS Score: 124° / 6.7 / 114' / 2506 - verified effective lighting output rating
• ClearView® optics deliver smooth, even light spread across Lighting Zones 1 & 2
• MoistureBlock™ system provides waterproof, rain-proof, and submersible protection (IP69K)
• CopperDrive® technology drives LEDs at 100% rated power for consistent output
• uService® design allows field replacement of lenses and optics without full unit swap

Specifications

• Lumens: 3,162 (4 Cree LEDs)
• Wattage / Amps: 26W / 2.0A
• Color Temperature: 5,000K Daylight
• Beam Pattern: Wide Cornering (42° flattened horizontal)
• Lighting Zones: 1 & 2
• ELS Score: 124° / 6.7 / 114' / 2506
• Lens Color: Clear
• Housing Color: Black
• Mount Style: Flush Mount
• Dimensions: 3.07" W x 2.77" H x 3.07" D
• Weight: 12 oz
• LED Life Expectancy: 49,930 hours
• Front Lens: Hard Coated Polycarbonate (Clear)
• Housing: Powder Coated Cast Aluminum (Black)
• Bezel: Billet Machined Aluminum
• Hardware & Bracket: Stainless Steel
• Waterproof Rating: IP69K (Submersible to 9 ft)
• Impact Rating: IK10 Compliant
• Built-In Overvoltage Protection: Yes

Included Components

• 1x Squadron Sport Flush Mount LED Light Pod (Black Housing, Clear Lens, Wide Cornering Pattern)
• 1x Stainless Steel Mounting Bracket
• Note: Wiring harness not included (sold separately, part# 640117)

Product Description

The Baja Designs Squadron Sport 5510052 brings the peripheral-expanding Wide Cornering beam pattern to a flush mount form factor at the Sport lineup's accessible price point. The flush mount housing sits recessed against the mounting surface - ideal for bumper cutouts, factory fog light recesses, and ditch light openings where a bracket-mounted pod would stick out too far. The 42° flattened horizontal spread fills the lateral lighting zones that forward-facing spot and combo lights leave uncovered, reducing tunnel vision and improving situational awareness on tight trails and in dusty or foggy conditions.

Despite the Sport-level price, it carries full Baja Designs build standards - IP69K waterproof rated, IK10 impact compliant, and MIL-STD-810G certified. The powder coated cast aluminum housing, billet machined bezel, and stainless steel hardware provide reliable durability. uService® serviceability allows field lens and optic swaps, and the Limited Lifetime Warranty is included. This is a single-pod listing - wiring harness sold separately.
