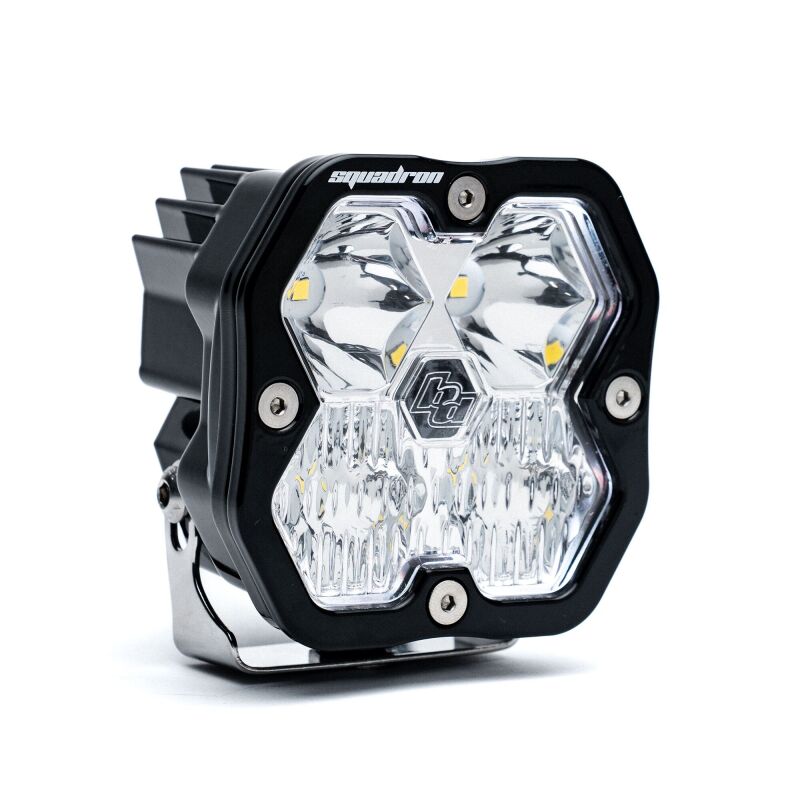

Baja Designs 5500032 Squadron Sport Black LED Driving Combo Light Pod Clear

Vehicle Fitment

• Universal - Fits Trucks, Jeeps, SUVs, UTVs, ATVs, and Off-Road Vehicles

Fitment Notes

• Universal mount design; vehicle-specific brackets may be required for certain applications
• Wiring harness (part# 640117) sold separately - not included with this light
• Note: The Squadron Sport product line has been discontinued by Baja Designs as of April 2026; verify current availability before purchase
• Not E-approved; verify local regulations before on-road use

Features

• Driving/Combo beam pattern combines 42° wide driving and 9° spot optics for maximum trail coverage in a single light
• Outputs 3,162 lumens using 4 Cree LEDs at 26W for strong near-field and distance illumination at an accessible price
• ELS Score: 112° / 7.1 / 183' / 2441 - verified effective lighting output rating
• ClearView® optics deliver precise, usable light output across both near-field and distance lighting zones
• MoistureBlock™ system provides waterproof, rain-proof, and submersible protection (IP69K)
• CopperDrive® technology drives LEDs at 100% rated power for consistent brightness
• uService® design allows field replacement of lenses and optics without full unit swap
• Exceeds MIL-STD-810G military-spec vibration and impact standards

Specifications

• Lumens: 3,162 (4 Cree LEDs)
• Wattage / Amps: 26W / 2.0A
• Color Temperature: 5,000K Daylight
• Beam Pattern: Driving/Combo (42° wide driving + 9° spot)
• Lighting Zone: 3
• ELS Score: 112° / 7.1 / 183' / 2441
• Lens Color: Clear
• Housing Color: Black
• Dimensions: 3.07" W x 2.77" H x 3.07" D
• Weight: 12 oz
• LED Life Expectancy: 49,930 hours
• Front Lens: Hard Coated Polycarbonate (Clear)
• Housing: Powder Coated Cast Aluminum (Black)
• Bezel: Billet Machined Aluminum
• Hardware & Bracket: Stainless Steel
• Waterproof Rating: IP69K (Submersible to 9 ft)
• Impact Rating: IK10 Compliant
• Built-In Overvoltage Protection: Yes

Included Components

• 1x Squadron Sport LED Light Pod (Black Housing, Clear Lens, Driving/Combo Pattern)
• 1x Stainless Steel Mounting Bracket
• Note: Wiring harness not included (sold separately, part# 640117)

Product Description

The Baja Designs Squadron Sport 5500032 delivers the versatile Driving/Combo beam pattern in the Sport lineup's compact 3" housing at a more accessible price point than the Squadron Pro. The Driving/Combo pattern blends a 42° wide driving spread with a focused 9° spot to provide both near-field coverage and long-distance reach in a single light - making it the most all-around capable pattern in the Squadron Sport range. At 3,162 lumens and 26 watts, it offers solid output efficiency ideal for near-field, side, backup, and trail lighting applications.

Built to the same core Baja Designs standards as the Pro lineup - IP69K waterproof rated, IK10 impact compliant, and MIL-STD-810G certified. The powder coated cast aluminum housing, billet machined bezel, and stainless steel hardware provide reliable durability. uService® serviceability allows field lens and optic swaps, and the Limited Lifetime Warranty is included. This is a single-pod listing - wiring harness sold separately.
