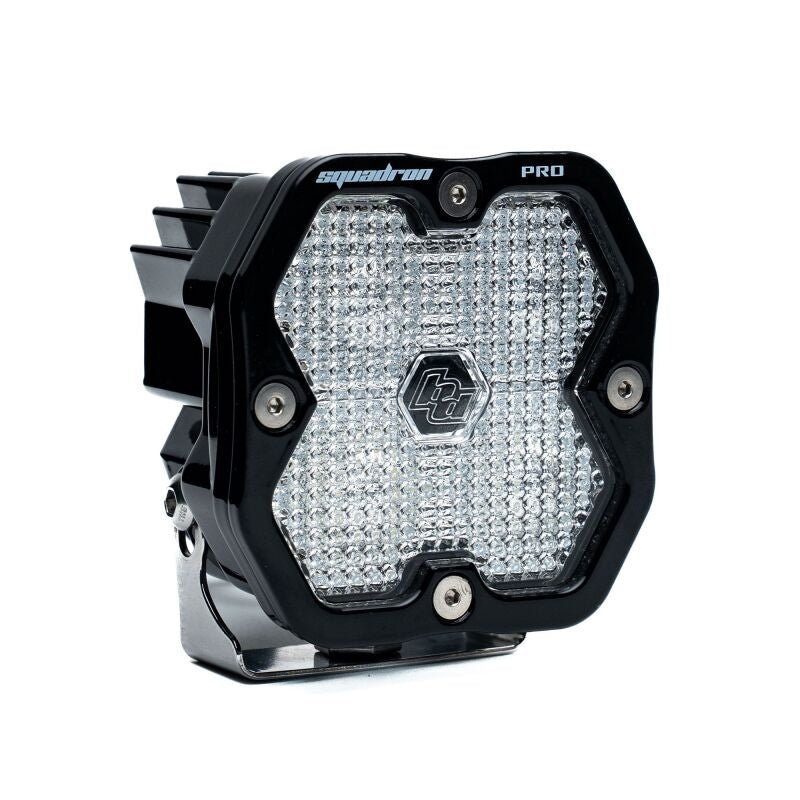

Baja Designs 4900062 Squadron Pro Black LED Work Scene Light Pod Universal

Vehicle Fitment

• Universal - Fits Trucks, Jeeps, SUVs, UTVs, ATVs, and Off-Road Vehicles

Fitment Notes

• Universal mount design; no vehicle-specific brackets included
• Wiring harness (part# 640117) sold separately - not included with this light
• Work/Scene pattern is not suitable for driving; intended for stationary or camp/work use
• Not E-approved; verify local regulations before road use

Features

• Work/Scene beam pattern projects a smooth 60° circle approximately 60 ft - ideal for camp, job site, or recovery use
• Outputs 4,095 lumens using 4 Cree LEDs at 41.4W for broad, even area illumination
• ClearView® optics maximize usable light output directly in the work zone
• MoistureBlock™ system provides waterproof, rain-proof, and submersible protection (IP69K)
• CopperDrive® technology drives LEDs at 100% rated power for consistent brightness
• uService® design allows field replacement of lenses and optics without full unit swap
• Exceeds MIL-STD-810G military-spec vibration and impact standards
• Built-in overvoltage protection for reliable performance across varied electrical systems

Specifications

• Lumens: 4,095 (4 Cree LEDs)
• Wattage / Amps: 41.4W / 3.0A
• Color Temperature: 5,000K Daylight
• Beam Pattern: Work/Scene (60° circular spread, ~60 ft projection)
• Lighting Zone: 7
• Dimensions: 3.07" W x 3.07" H x 2.77" D
• Weight: 12 oz
• LED Life Expectancy: 49,930 hours
• Front Lens: Hard Coated Polycarbonate (Clear)
• Housing: Hard Anodized & Powder Coated Cast Aluminum (Black)
• Bezel: Billet Machined Aluminum
• Hardware & Bracket: Stainless Steel
• Waterproof Rating: IP69K (Submersible to 9 ft)
• Impact Rating: IK10 Compliant
• Built-In Overvoltage Protection: Yes

Included Components

• 1x Squadron Pro LED Light Pod (Black Housing, Clear Lens, Work/Scene Pattern)
• 1x Stainless Steel Mounting Bracket
• Note: Wiring harness not included (sold separately, part# 640117)

Product Description

The Baja Designs Squadron Pro 4900062 is a compact 3" LED light pod built around the Work/Scene beam pattern - designed for broad, close-range area illumination rather than trail driving. Its smooth 60° circular spread projects usable light approximately 60 feet in all directions, making it an excellent choice for camp lighting, vehicle recovery, job site use, or any scenario where wide coverage matters more than throw distance. At 4,095 lumens and 41.4 watts, it delivers serious output from a very small package.

Built with the same rugged construction as the rest of the Squadron Pro line, the 490006 carries an IP69K waterproof rating, IK10 impact compliance, and MIL-STD-810G certification. The hard anodized cast aluminum housing, billet machined bezel, and stainless steel hardware ensure long-term durability in demanding conditions. uService® serviceability keeps maintenance simple, and the Limited Lifetime Warranty provides full purchase protection. This is a single-pod listing - wiring harness sold separately.
