Baja Designs 4910052 Squadron Pro Black Flush Mount LED Wide Cornering Pod

Vehicle Fitment

• Universal - Fits Trucks, Jeeps, SUVs, UTVs, ATVs, Marine, and Off-Road Vehicles

Fitment Notes

• Flush mount design requires a flat or recessed mounting surface; not a standard bracket-mount pod
• Wiring harness (part# 640117) sold separately - not included with this light
• Not E-approved; verify local regulations before on-road use

Features

• Flush mount housing integrates cleanly into bumpers, A-pillars, ditch mounts, and roof panels for a low-profile installation
• Wide Cornering beam pattern (42° flattened horizontal) expands peripheral vision to eliminate tunnel vision on tight trails
• Outputs 4,900 lumens using 4 Cree LEDs at 40W for broad, close-range lateral illumination
• ClearView® optics deliver smooth, even light distribution across Lighting Zones 1 & 2
• MoistureBlock™ system provides waterproof, rain-proof, and submersible protection (IP69K)
• CopperDrive® technology drives LEDs at 100% rated power for consistent output
• uService® design allows field replacement of lenses and optics without full unit swap
• Exceeds MIL-STD-810G military-spec vibration and impact standards

Specifications

• Lumens: 4,900 (4 Cree LEDs)
• Wattage / Amps: 40W / 3.33A
• Color Temperature: 5,000K Daylight
• Beam Pattern: Wide Cornering (42° horizontal spread)
• Lighting Zones: 1 & 2
• Lens Color: Clear
• Housing Color: Black
• Mount Style: Flush Mount
• Dimensions: 3.50" W x 2.77" H x 3.50" D
• Weight: 12 oz
• LED Life Expectancy: 49,930 hours
• Front Lens: Hard Coated Polycarbonate (Clear)
• Housing: Hard Anodized & Powder Coated Cast Aluminum (Black)
• Bezel: Billet Machined Aluminum
• Hardware & Bracket: Stainless Steel
• Waterproof Rating: IP69K (Submersible to 9 ft)
• Impact Rating: IK10 Compliant
• Built-In Overvoltage Protection: Yes

Included Components

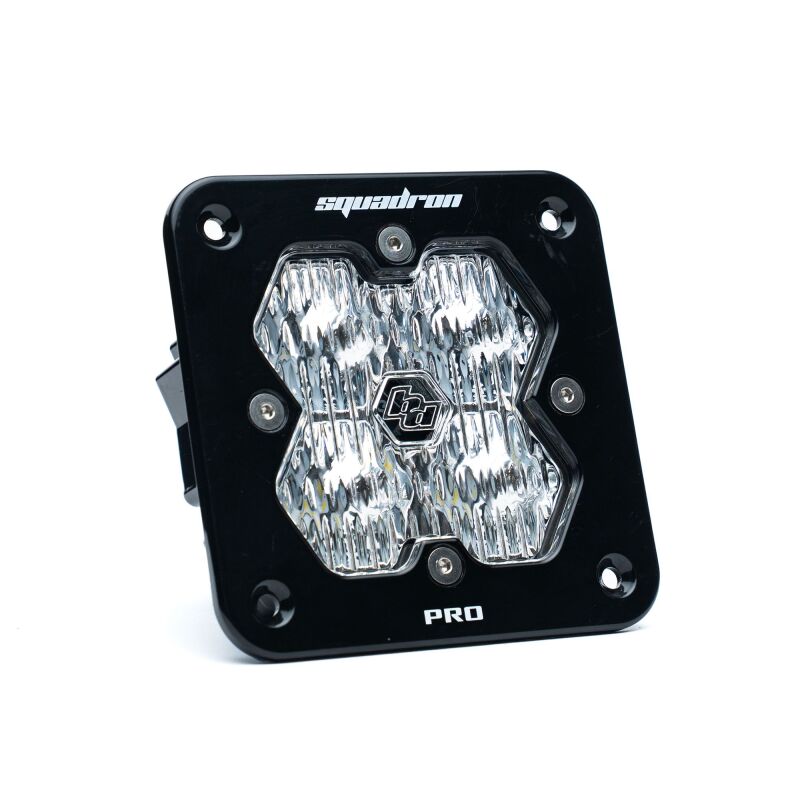

• 1x Squadron Pro Flush Mount LED Light Pod (Black Housing, Clear Lens, Wide Cornering Pattern)
• 1x Stainless Steel Mounting Bracket
• Note: Wiring harness not included (sold separately, part# 640117)

Product Description

The Baja Designs Squadron Pro 4910052 brings the peripheral-filling Wide Cornering beam pattern to a flush mount form factor, making it an ideal choice for builders who want clean, integrated lighting without exposed brackets. The 42° flattened horizontal beam expands lateral visibility during cornering, in dusty conditions, and in fog - covering Lighting Zones 1 and 2 to eliminate the blind spots that standard spot or combo lights leave behind. At 4,900 lumens and 40 watts, it delivers serious output in a compact 3.5" housing.

Built to the same standards as the full Squadron Pro lineup, the 491005 is IP69K waterproof rated, IK10 impact compliant, and MIL-STD-810G certified for military-grade durability. The hard anodized aluminum housing, billet machined bezel, and stainless steel hardware provide long-term resilience in demanding off-road environments. uService® serviceability allows field lens and optic swaps, and the Limited Lifetime Warranty provides full purchase protection. This is a single-pod listing - wiring harness sold separately.
