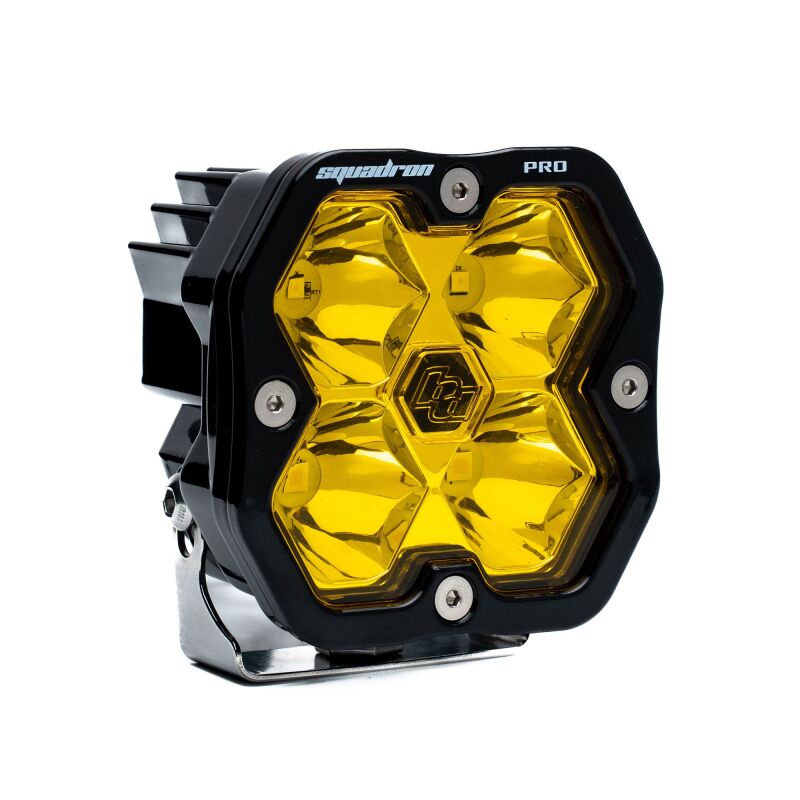

Baja Designs 4900112 Squadron Pro Black Amber LED Spot Light Pod Universal

Vehicle Fitment

• Universal - Fits Trucks, Jeeps, SUVs, UTVs, ATVs, and Off-Road Vehicles

Fitment Notes

• Universal mount design; no vehicle-specific brackets included
• Wiring harness (part# 640117) sold separately - not included with this light
• Spot pattern designed for use alongside Wide Driving or Driving/Combo beam lights
• Amber lens reduces net lumen output to approximately 4,300 lumens; verify local regulations for amber auxiliary lighting use

Features

• Amber lens Spot beam pattern (9°) provides long-range focused illumination with reduced glare in dust, fog, and rain
• Outputs approximately 4,300 net lumens through amber lens using 4 Cree LEDs at 41.4W
• ClearView® optics direct light precisely where needed with minimal scatter
• MoistureBlock™ system provides waterproof, rain-proof, and submersible protection (IP69K)
• CopperDrive® technology drives LEDs at 100% rated power for consistent output
• uService® design allows field replacement of lenses and optics without full unit swap
• Exceeds MIL-STD-810G military-spec vibration and impact standards
• Built-in overvoltage protection for stable performance across varied electrical systems

Specifications

• Lumens: 4,095 raw / ~4,300 net through amber lens (4 Cree LEDs)
• Wattage / Amps: 41.4W / 3.0A
• Color Temperature: 5,000K Daylight (amber-filtered output)
• Beam Pattern: Spot (9°)
• Lighting Zones: 4 & 5
• Lens Color: Amber
• Dimensions: 3.07" W x 3.07" H x 2.77" D
• Weight: 12 oz
• LED Life Expectancy: 49,930 hours
• Front Lens: Hard Coated Polycarbonate (Amber)
• Housing: Hard Anodized & Powder Coated Cast Aluminum (Black)
• Bezel: Billet Machined Aluminum
• Hardware & Bracket: Stainless Steel
• Waterproof Rating: IP69K (Submersible to 9 ft)
• Impact Rating: IK10 Compliant
• Built-In Overvoltage Protection: Yes

Included Components

• 1x Squadron Pro LED Light Pod (Black Housing, Amber Lens, Spot Pattern)
• 1x Stainless Steel Mounting Bracket
• Note: Wiring harness not included (sold separately, part# 640117)

Product Description

The Baja Designs Squadron Pro 4900112 combines the long-range focus of a 9° Spot beam with the proven visibility benefits of an amber lens. The amber filter cuts through dust, fog, and precipitation more effectively than a clear lens, making this pod an excellent choice for desert racing, trail driving, and adverse weather conditions. At approximately 4,300 net lumens through the amber lens, it delivers serious distance illumination while keeping glare manageable for the driver.

Construction mirrors the rest of the Squadron Pro line - IP69K waterproof rated, IK10 impact compliant, and MIL-STD-810G certified for military-grade durability. The hard anodized cast aluminum housing, billet machined bezel, and stainless steel hardware provide long-term resilience. uService® serviceability allows lens and optic swaps in the field, and the Limited Lifetime Warranty covers the unit fully. This is a single-pod listing - wiring harness sold separately.
