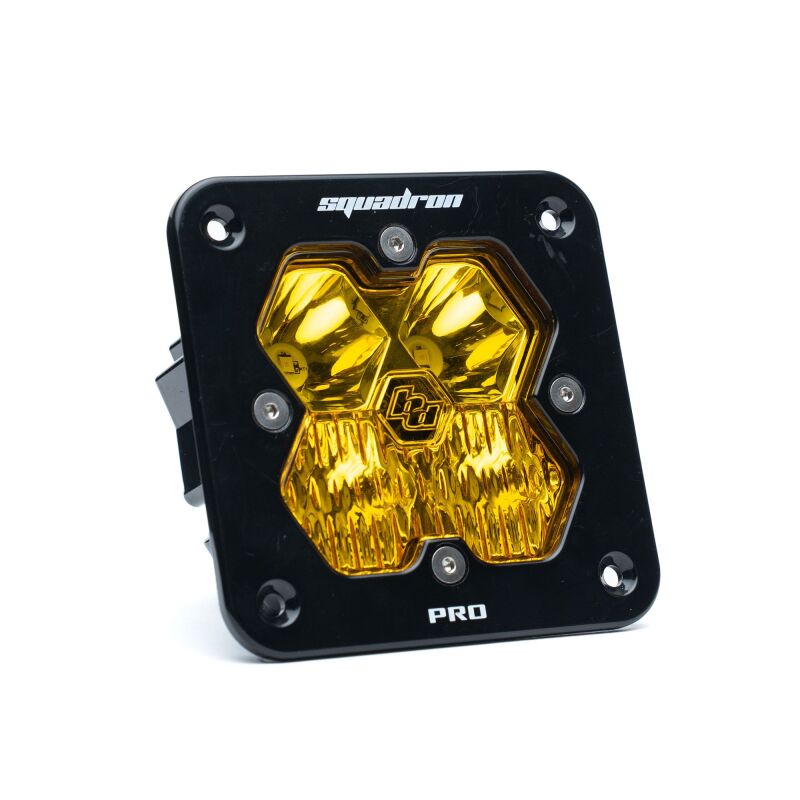

Baja Designs 4910132 Squadron Pro Black Flush Mount Amber LED Driving Combo Pod

Vehicle Fitment

• Universal - Fits Trucks, Jeeps, SUVs, UTVs, ATVs, Marine, and Off-Road Vehicles

Fitment Notes

• Flush mount design requires a flat or recessed mounting surface such as a bumper cutout or fog light recess; not a standard bracket-mount pod
• Wiring harness (part# 640117) sold separately - not included with this light
• Amber lens reduces net lumen output to approximately 4,300 lumens; verify local regulations for amber auxiliary lighting use
• Not E-approved; intended for off-road or auxiliary use only where applicable by law

Features

• Flush mount housing integrates cleanly into bumper cutouts, ditch mounts, and recessed fog light openings for a low-profile look
• Driving/Combo beam pattern combines 42° wide driving and 9° spot optics for maximum trail coverage in a single light
• Amber lens improves contrast and cuts through dust, fog, and rain better than a clear lens
• Outputs approximately 4,300 net lumens through amber lens using 4 Cree LEDs at 41.4W
• ClearView® optics deliver precise, usable light output across both near-field and distance zones
• MoistureBlock™ system provides waterproof, rain-proof, and submersible protection (IP69K)
• CopperDrive® technology drives LEDs at 100% rated power for consistent brightness
• uService® design allows field replacement of lenses and optics without full unit swap

Specifications

• Lumens: 4,095 raw / ~4,300 net through amber lens (4 Cree LEDs)
• Wattage / Amps: 41.4W / 3.0A
• Color Temperature: 5,000K Daylight (amber-filtered output)
• Beam Pattern: Driving/Combo (42° wide driving + 9° spot)
• Lighting Zone: 3
• Lens Color: Amber
• Housing Color: Black
• Mount Style: Flush Mount
• Dimensions: 3.50" W x 2.77" H x 3.50" D
• Weight: 12 oz
• LED Life Expectancy: 49,930 hours
• Front Lens: Hard Coated Polycarbonate (Amber)
• Housing: Hard Anodized & Powder Coated Cast Aluminum (Black)
• Bezel: Billet Machined Aluminum
• Hardware & Bracket: Stainless Steel
• Waterproof Rating: IP69K (Submersible to 9 ft)
• Impact Rating: IK10 Compliant
• Built-In Overvoltage Protection: Yes

Included Components

• 1x Squadron Pro Flush Mount LED Light Pod (Black Housing, Amber Lens, Driving/Combo Pattern)
• 1x Stainless Steel Mounting Bracket
• Note: Wiring harness not included (sold separately, part# 640117)

Product Description

The Baja Designs Squadron Pro 4910132 combines the all-around versatility of the Driving/Combo beam pattern with the weather-penetrating advantage of an amber lens, all in a flush mount housing. The Driving/Combo pattern blends a 42° wide driving spread with a focused 9° spot to cover both near-field and distance illumination in a single pod. The amber lens enhances contrast in dust, fog, and rain - making this an excellent choice for desert, trail, and adverse-weather driving applications where reduced glare matters as much as raw output.

The flush mount form factor allows clean, recessed installation into bumper cutouts or factory fog light openings, eliminating the need for external brackets. Built to full Squadron Pro standards - IP69K waterproof rated, IK10 impact compliant, and MIL-STD-810G certified. The hard anodized aluminum housing, billet machined bezel, and stainless steel hardware ensure long-term durability. uService® serviceability and a Limited Lifetime Warranty complete the package. This is a single-pod listing - wiring harness sold separately.
