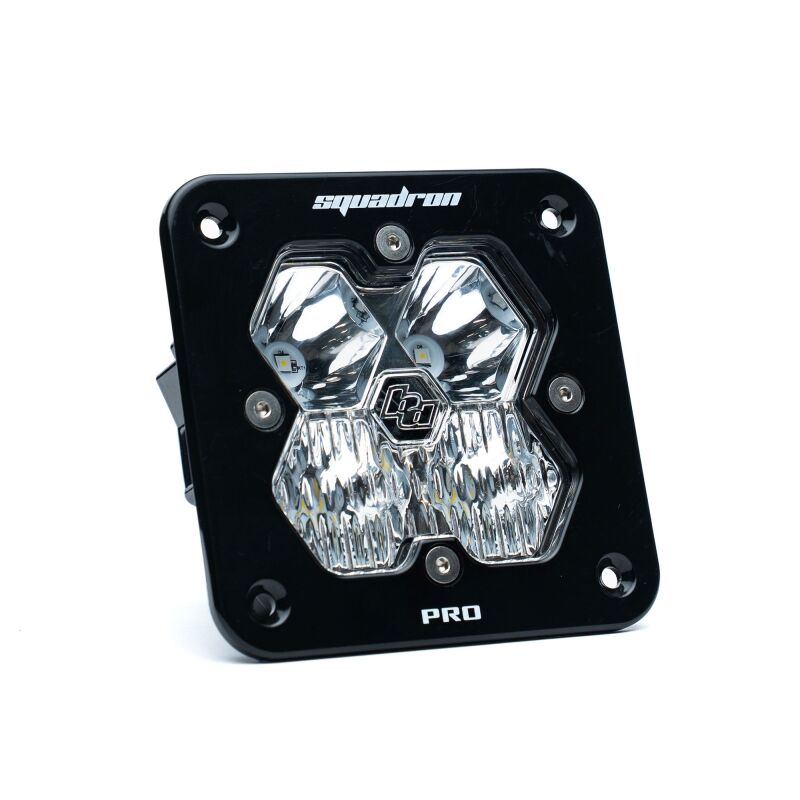

Baja Designs 4910032 Squadron Pro Black Flush Mount LED Driving Combo Pod

Vehicle Fitment

• Universal - Fits Trucks, Jeeps, SUVs, UTVs, ATVs, Marine, and Off-Road Vehicles

Fitment Notes

• Flush mount design requires a flat or recessed mounting surface; not a standard pod-style bracket mount
• Wiring harness (part# 640117) sold separately - not included with this light
• Not E-approved; verify local regulations before on-road use

Features

• Flush mount housing integrates cleanly into bumpers, hoods, A-pillars, and roof panels for a low-profile look
• Driving/Combo beam pattern combines 42° wide driving and 9° spot optics for maximum trail coverage in a single light
• Outputs 4,900 lumens using 4 Cree LEDs at 40W for powerful near-field and distance illumination
• ClearView® optics deliver precise, usable light output with minimal scatter
• MoistureBlock™ system provides waterproof, rain-proof, and submersible protection (IP69K)
• CopperDrive® technology drives LEDs at 100% rated power for consistent output
• uService® design allows field replacement of lenses and optics without full unit swap
• Exceeds MIL-STD-810G military-spec vibration and impact standards

Specifications

• Lumens: 4,900 (4 Cree LEDs)
• Wattage / Amps: 40W / 2.90A
• Color Temperature: 5,000K Daylight
• Beam Pattern: Driving/Combo (42° wide driving + 9° spot)
• Lighting Zone: 3
• Lens Color: Clear
• Housing Color: Black
• Mount Style: Flush Mount
• Dimensions: 3.50" W x 2.77" H x 3.50" D
• Weight: 12 oz
• LED Life Expectancy: 49,930 hours
• Front Lens: Hard Coated Polycarbonate (Clear)
• Housing: Hard Anodized & Powder Coated Cast Aluminum (Black)
• Bezel: Billet Machined Aluminum
• Hardware & Bracket: Stainless Steel
• Waterproof Rating: IP69K (Submersible to 9 ft)
• Impact Rating: IK10 Compliant
• Built-In Overvoltage Protection: Yes

Included Components

• 1x Squadron Pro Flush Mount LED Light Pod (Black Housing, Clear Lens, Driving/Combo Pattern)
• 1x Stainless Steel Mounting Bracket
• Note: Wiring harness not included (sold separately, part# 640117)

Product Description

The Baja Designs Squadron Pro 4910032 delivers the same powerful Driving/Combo performance as the standard Squadron Pro pod but in a flush mount form factor designed for clean, integrated installations. The flush mount housing sits flush against the mounting surface - ideal for bumper cutouts, ditch light recesses, roof panels, or any application where a traditional bracket-mounted pod would protrude too far. At 4,900 lumens and 40 watts, it combines a 42° wide driving spread with a 9° spot for both near-field coverage and long-distance reach in one unit.

Construction is fully in line with the Squadron Pro lineup - IP69K waterproof rated, IK10 impact compliant, and MIL-STD-810G certified for durability in extreme conditions. The hard anodized cast aluminum housing, billet machined bezel, and stainless steel hardware ensure long-term reliability. uService® serviceability allows lens and optic swaps in the field, and the Limited Lifetime Warranty provides full coverage. This is a single-pod listing - wiring harness sold separately.
