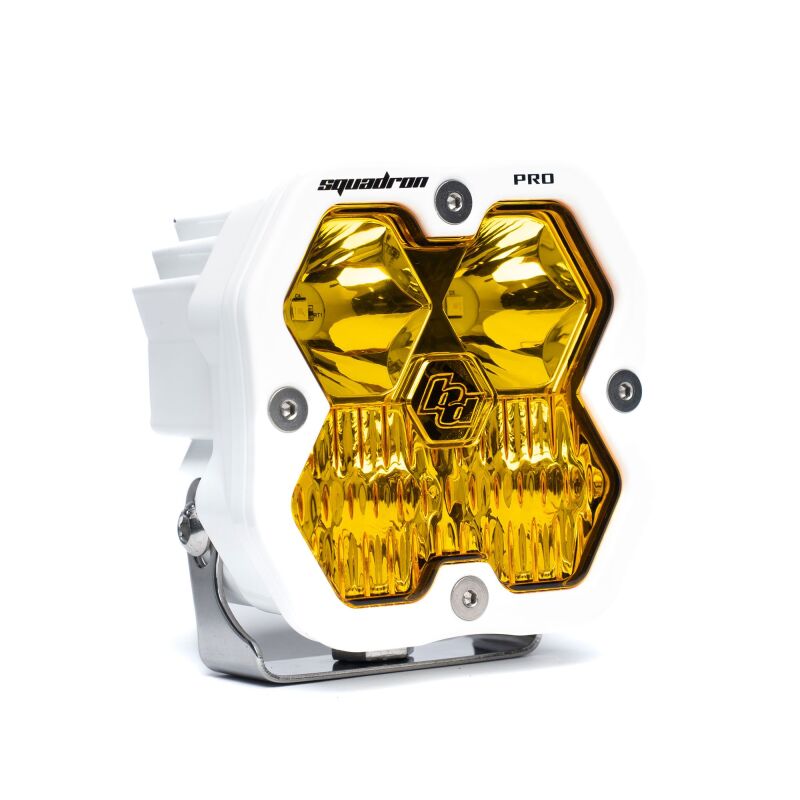

Baja Designs 490013WT2 Squadron Pro White Amber LED Driving Combo Pod Universal

Vehicle Fitment

• Universal - Fits Trucks, Jeeps, SUVs, UTVs, ATVs, Marine, and Off-Road Vehicles

Fitment Notes

• Universal mount design; no vehicle-specific brackets included
• Wiring harness (part# 640117) sold separately - not included with this light
• White housing ideal for marine applications or builds requiring a white housing finish
• Amber lens reduces net lumen output to approximately 4,300 lumens; verify local regulations for amber auxiliary lighting use

Features

• Driving/Combo beam pattern combines 42° wide driving and 9° spot optics for maximum trail coverage in a single light
• Amber lens improves visibility in dust, fog, rain, and low-contrast conditions
• Outputs approximately 4,300 net lumens through amber lens using 4 Cree LEDs at 40W
• ClearView® optics deliver precise light output across both near-field and distance zones
• MoistureBlock™ system provides waterproof, rain-proof, and submersible protection (IP69K)
• CopperDrive® technology drives LEDs at 100% rated power for consistent brightness
• uService® design allows field replacement of lenses and optics without full unit swap
• Exceeds MIL-STD-810G military-spec vibration and impact standards

Specifications

• Lumens: 4,900 raw / ~4,300 net through amber lens (4 Cree LEDs)
• Wattage / Amps: 40W / 3.33A
• Color Temperature: 5,000K Daylight (amber-filtered output)
• Beam Pattern: Driving/Combo (42° wide driving + 9° spot)
• Lighting Zone: 3
• Lens Color: Amber
• Housing Color: White
• Dimensions: 3.07" W x 2.77" H x 3.07" D
• Weight: 12 oz
• LED Life Expectancy: 49,930 hours
• Front Lens: Hard Coated Polycarbonate (Amber)
• Housing: Hard Anodized & Powder Coated Cast Aluminum (White)
• Bezel: Billet Machined Aluminum
• Hardware & Bracket: Stainless Steel
• Waterproof Rating: IP69K (Submersible to 9 ft)
• Impact Rating: IK10 Compliant
• Built-In Overvoltage Protection: Yes

Included Components

• 1x Squadron Pro LED Light Pod (White Housing, Amber Lens, Driving/Combo Pattern)
• 1x Stainless Steel Mounting Bracket
• Note: Wiring harness not included (sold separately, part# 640117)

Product Description

The Baja Designs Squadron Pro 490013WT2 pairs the versatility of the Driving/Combo beam pattern with the weather-cutting performance of an amber lens in a white housing. The Driving/Combo pattern blends a 42° wide driving spread with a focused 9° spot to deliver both near-field coverage and long-range reach in a single light pod - making it the most all-around capable pattern in the Squadron Pro lineup. The amber lens reduces glare and improves contrast in dust, fog, rain, and other low-visibility conditions.

The white housing makes this pod a natural fit for marine applications, white-build trucks, or any setup where a black housing doesn't suit the aesthetic. Built to the same standards as the full Squadron Pro line, it carries IP69K waterproof certification, IK10 impact compliance, and MIL-STD-810G military-spec ratings. uService® serviceability and a Limited Lifetime Warranty round out the package. This is a single-pod listing - wiring harness sold separately.
