Baja Designs 480015 S2 Pro Amber Wide Cornering LED Light Pod Single Black 24w

Vehicle Fitment

• Universal -- any vehicle or application with 9-32V DC electrical system

Fitment Notes

• Sold individually -- pair with wiring harness PN 487815
• Amber Wide Cornering -- near-field, fog, dust, cornering; not a long-distance beam
• Standard mount -- flush mount version available separately
• uService lens replacement available without returning the unit
• Verify mounting clearance for your specific application before purchase

Features

• 2,245 lumens from 2 LEDs -- 24W / 1.8A
• Wide Cornering beam -- 42° flattened horizontal pattern
• Amber lens -- cuts through dust, rain, snow, and fog
• ClearView optics -- custom-designed by BD racing engineers
• CopperDrive -- each LED driven at 100%
• MoistureBlock -- waterproof, rain proof, submersible
• IP69K rated
• 5000K daylight color temperature
• uService -- field-replaceable lens and optics
• Stainless steel mounting hardware
• Made in San Diego, California, USA

Specifications

• Part Number: 480015
• Series: S2 Pro
• LED output: Amber
• Housing: Black
• Beam pattern: Wide Cornering -- 42° horizontal
• Lumens: 2,245
• Wattage: 24W / 1.8A
• Color temperature: 5000K
• Voltage: 9-32V DC
• Dimensions: 3" W x 2" H x 3" D
• IP rating: IP69K
• Quantity: Sold individually
• Pair with harness: PN 487815
• Warranty: Limited lifetime

Included Components

• 1x S2 Pro LED light pod -- Amber Wide Cornering, Black housing
• 1x Mounting bracket
• Stainless steel mounting hardware

Product Description

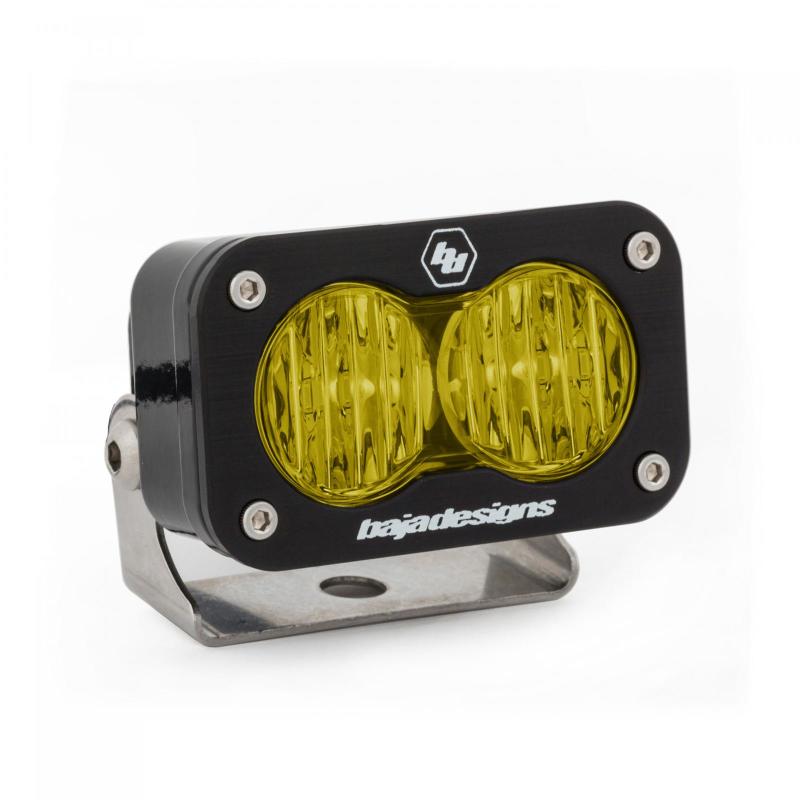

The Baja Designs 480015 is a single S2 Pro LED light pod in Black with Amber Wide Cornering beam. At 3" x 2" and drawing 24 watts, it delivers 2,245 lumens from two LEDs -- among the highest lumen-per-ounce outputs in its class -- in a housing compact enough to mount where conventional lights cannot fit. The 42° Wide Cornering pattern covers lighting zones 1 and 2 for near-field trail visibility and penetration through dust, rain, snow, and fog. Amber output reduces eye strain and scatter in adverse conditions compared to white.

CopperDrive runs each LED at 100% rated capacity. MoistureBlock delivers IP69K waterproof protection including high-pressure washdown. The uService system allows field-replacement of the lens and optics in minutes. Sold individually -- pair with wiring harness PN 487815 for a complete two-pod setup. 30-day satisfaction guarantee. Made in San Diego, California. Backed by Baja Designs' limited lifetime warranty.
