Baja Designs 487801 -S2 Pro Series LED Light Pods Spot Pattern - Pair

Vehicle Fitment

• Universal fit--works with 12 V DC electrical systems

Fitment Notes

• Pair includes wiring harness; requires 20 A fused circuit
• Mount using standard 3/8" bolt hole pattern on off-road racks or bumpers
• Spot beam optics ideal for long-range illumination--can mix with combo/wide lenses
• IP69K-rated waterproof, submersible to 9 ft--no additional sealing required

Features

• 2,450 lm from dual LED emitters in a compact 3" x 2" housing
• CopperDrive® technology--100% LED drive for maximum output
• Hard-anodized & powder-coated aluminum housing for durability
• Hard-coated polycarbonate lens resists abrasion
• MoistureBlock™ waterproofing, submersible to 9 ft
• Replaceable lens and optics via uService® design
• IP69K and IK10 rated--resistant to high-pressure wash and impact
• Limited lifetime warranty for recreational use; 5 yr commercial use

Specifications

• Part Number: 487801
• Lumens: 2,450 lm per pod (Spot pattern)
• Power: 20 W / 1.66 A @ 12 V
• Dimensions: 2.93" x 1.76" x 1.68"
• Weight: 8 oz per pod
• Lens: Hard-coated polycarbonate
• Housing: Anodized & powder-coated cast aluminum
• Ratings: IP69K, IK10, MIL-STD-810G
• Wiring: Includes harness with 20 A fuse and relay

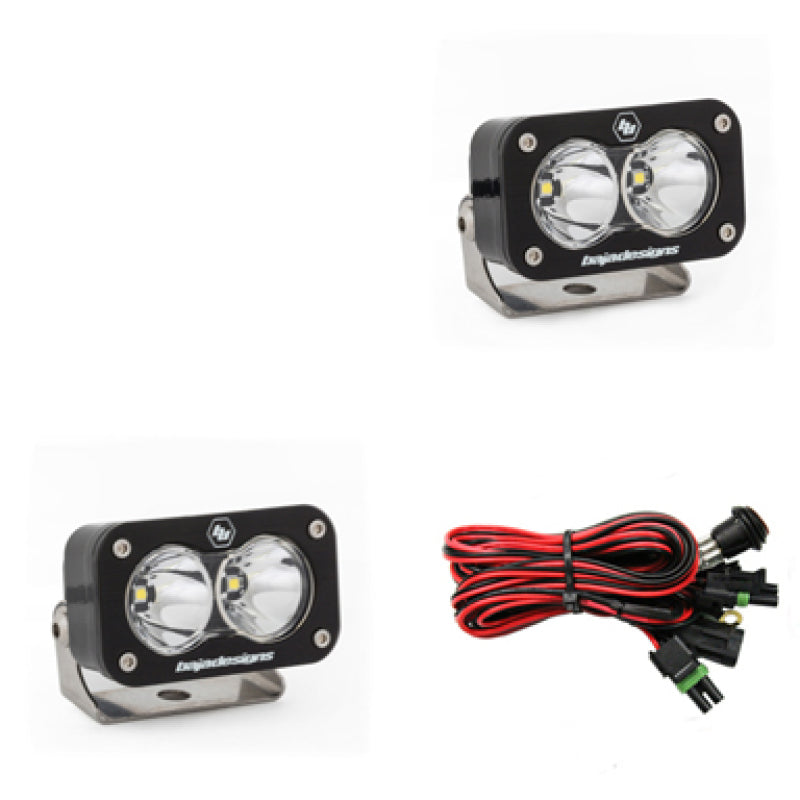

Included Components

• 2x S2 Pro LED pods (Spot)
• 1x Wiring harness with switch, relay, fuse
• 2x Mounting brackets and hardware
• 1x Installation guide

Product Description

The Baja Designs 487801 S2 Pro LED Light Pod Pair delivers unparalleled brightness (2,450 lumens) in a compact 3" x 2" housing, offering rugged off-road lighting in hard-to-fit spaces. Featuring CopperDrive® tech for full-power LED output, IP69K waterproofing, and replaceable optics, it's built to perform under the toughest conditions.

Certified to MIL-STD-810G and IK10, the S2 Pro pods resist high-pressure wash and impact damage. These universal-fit lights include a complete wiring harness, Spot beam optics, and durable mount hardware--ideal for off-road vehicles, ATVs, marine use, or auxiliary driving aids. Backed by Baja Designs' lifetime warranty (recreational) or 5-year commercial coverage, the 487801 provides unmatched performance and reliability.
