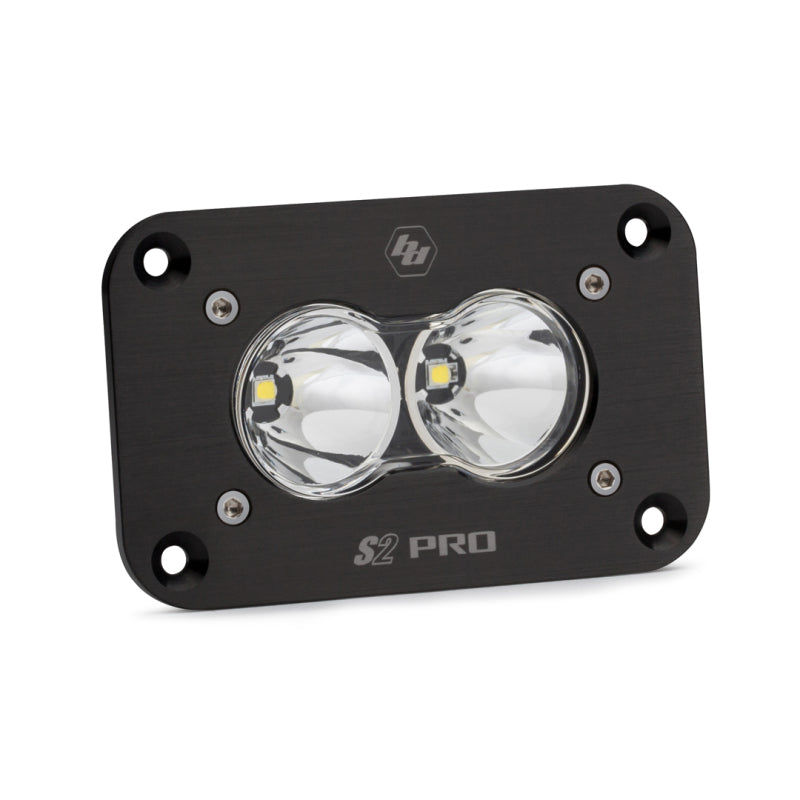

Baja Designs 481001 S2 Pro Flush Mount LED Light Pod Spot Clear Universal

Vehicle Fitment

• Universal - compatible with any truck, Jeep, SUV, UTV, ATV, boat, trailer, or custom build requiring a compact, flush-mountable 12V LED auxiliary light

Fitment Notes

• Universal flush mount design - installs directly into a rear bumper, body panel, roof rack, or any flat surface with a cutout; ideal for applications where a traditional protruding pod mount will not fit
• Sold individually - one (1) light pod per unit; wiring harness is NOT included and must be purchased separately (compatible harness: Baja Designs SKU 640117)
• This SKU is the Spot beam pattern with a Clear lens - for other beam patterns or Baja Amber lens, see companion SKUs: 481003 (Driving/Combo, Clear), 481005 (Wide Cornering, Clear), 481006 (Work/Scene, Clear), 481011 (Spot, Amber), 481013 (Driving/Combo, Amber), 481015 (Wide Cornering, Amber), 481016 (Work/Scene, Amber)
• Lenses and optics are field-swappable via Baja Designs' uService® system - beam pattern can be changed after purchase without tools

Features

• Spot beam pattern delivers a focused 9° narrow beam for long-distance illumination further down the trail or road - designed to work in tandem with Wide Cornering or Driving/Combo lights for complete trail coverage (Lighting Zone 4)
• 2,245 raw lumens from a compact 2.93" x 1.76" x 1.68" flush mount housing - among the brightest LED lights available per ounce
• Flush mount form factor installs directly into bumpers, body panels, and tight spaces where standard pod mounts cannot fit
• Dual LED design with ClearView® CNC-machined optics for precisely directed, smooth output with no wasted light scatter
• CopperDrive® technology drives each LED at 100% power at all times for maximum, consistent brightness
• MoistureBlock® sealed housing is IP69K rated - waterproof to 9 feet and pressure-washable
• 5000K Daylight output reduces driver fatigue and provides natural color rendering for more accurate trail visibility
• uService® replaceable lens and optic system - swap beam patterns in the field without tools or special equipment
• Hard anodized and powder-coated cast aluminum housing with billet machined aluminum bezel for long-term durability
• Exceeds MIL-STD-810G military spec standards for temperature, humidity, vibration, shock, dust, and water resistance
• IK10 impact resistance certified; built-in overvoltage protection
• Stainless steel mounting hardware included
• Backed by Baja Designs' 30-Day Satisfaction Guarantee and Limited Lifetime Warranty

Specifications

• SKU: 481001
• Product Type: S2 Pro Flush Mount LED Light Pod
• Beam Pattern: Spot (9° focused long-distance beam)
• Lens Color: Clear
• Housing Color: Black
• Brightness: 2,245 Lumens
• Wattage: 23.46W
• Amperage: 1.7A
• LEDs: 2
• Color Temperature: 5000K Daylight
• Lighting Type: Forward Projecting
• Dimensions: 2.93" L x 1.76" H x 1.68" D
• Weight: 0.5 lbs
• Housing Material: Hard Anodized and Powder Coated Cast Aluminum
• Bezel Material: Powder Coated Cast Aluminum
• Lens Material: Hard Coated Polycarbonate
• Hardware Material: Stainless Steel
• LED Life Expectancy: 49,930 Hours
• Water Resistance: IP69K (Waterproof to 9ft, Pressure Washable)
• Impact Rating: IK10 Compliant
• Durability: Exceeds MIL-STD-810G
• Wiring Harness Included: No (order SKU 640117 separately)
• Quantity: Sold Individually (1 light per unit)
• Fitment: Universal
• Warranty: Limited Lifetime

Included Components

• 1x Baja Designs S2 Pro Flush Mount LED Light Pod (Spot, Clear lens, black housing)
• 1x Stainless steel mounting hardware set
• Note: Wiring harness not included - order Baja Designs SKU 640117 separately

Product Description

The Baja Designs 481001 is a single S2 Pro Flush Mount LED auxiliary light pod with a Spot beam pattern and clear lens, engineered for applications where maximum brightness in a minimum footprint is required. At 2,245 lumens from a 2.93" x 1.76" x 1.68" housing, the S2 Pro delivers outstanding output-to-size performance - making it one of the brightest LED lights available per ounce. The flush mount design allows it to install directly into rear bumpers, body panels, and tight spaces where a protruding pod mount simply won't fit, opening up mounting locations that other lights can't access.

The Spot pattern produces a focused 9° narrow beam purpose-built for illuminating further down the trail or road, and pairs naturally with Wide Cornering or Driving/Combo pods to build a complete zone-based lighting system. CopperDrive® keeps both LEDs running at 100% output constantly, while MoistureBlock® sealing achieves IP69K waterproofing - submersible to 9 feet and pressure-washable. The uService® system allows the lens and optic to be field-swapped without tools if a different beam pattern is needed later. Sold individually; wiring harness (SKU 640117) sold separately. Backed by Baja Designs' 30-Day Satisfaction Guarantee and Limited Lifetime Warranty.
