Baja Designs 448093 7XL Linkable LED Roof Bar Kit for 2022-2026 Polaris RZR Pro

Vehicle Fitment

• 2022-2026 Polaris RZR Pro R (Sport, Premium, Ultimate, Ultimate Launch Edition - 2-Seat)
• 2022-2026 Polaris RZR Pro R 4 (Sport, Premium, Ultimate, Ultimate Launch Edition - 4-Seat)

Fitment Notes

• Does NOT fit Polaris RZR Pro S models - this kit is exclusive to the RZR Pro R platform
• Brackets bolt directly into factory roof mounting holes - no drilling or modification required
• Wiring harness integrates with Polaris Pulse Bar technology for a clean, factory-finish installation; harness comes fully crimped and trimmed
• Each of the 7 XL pods provides 45° of independent vertical pitch adjustment; horizontal adjustment allows straight or arced configurations

Features

• 7-pod XL Linkable system delivers multi-pattern output combining Driving/Combo, High Speed Spot, and Wide Cornering optics in a single configurable bar
• Independent per-pod horizontal and vertical adjustment allows the lighting spread to be precisely dialed in to match any riding style or terrain
• Low-profile linkable design follows the natural roofline contour of the RZR Pro R for a clean, integrated appearance
• ClearView® optics place all 22,050 lumens exactly on target across near-field and mid-range zones
• MoistureBlock® sealed wiring is fully waterproof, rainproof, and submersible - built for river crossings and desert wash conditions
• CopperDrive® technology drives all 28 LEDs at 100% rated output without thermal throttling
• uService® replaceable lens system allows individual pod lens swaps in the field without voiding the warranty
• IP69K and IK10 rated - engineered to withstand high-pressure wash, sand, dust, and mechanical impact

Specifications

• Light Bar System: 7 XL Linkable (7x XL Sport pods)
• Beam Pattern: Multi-Pattern (Driving/Combo + High Speed Spot + Wide Cornering)
• Total Raw Lumens: 22,050
• Wattage: 182W
• Amperage: 14.0A
• Total LED Count: 28 LEDs (4 per pod)
• LED Life Expectancy: 49,930 hours
• Color Temperature: 5000K Daylight
• Bar Dimensions: 45.34" L x 4.43" H x 2.8" D
• Lens: Clear Hard-Coated Polycarbonate (replaceable per pod)
• Bezel: Billet Machined Aluminum
• Housing: Hard Anodized and Powder-Coated Cast Aluminum
• Mounting Hardware: Stainless Steel
• IP Rating: IP69K | Impact Rating: IK10 | Mil-Spec: Exceeds MIL-STD810G
• Mounting Position: Roof (factory hole locations)
• Warranty: Limited Lifetime

Included Components

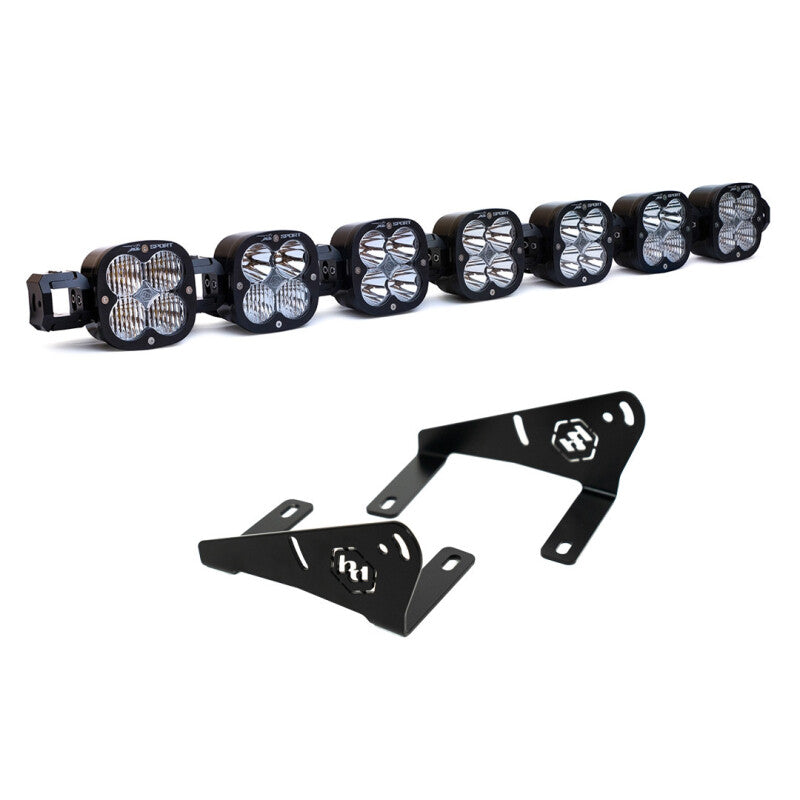

• 1x XL Linkable Bar - 7x XL Sport Pods, Clear Lens, Multi-Pattern
• 7x XL Black Rock Guards
• 2x Roof Bar Mounting Brackets
• 1x Wiring Harness (pre-crimped and trimmed)
• 1x Hardware Kit (Pre-Load Kit, Links, Mounting Hardware)

Product Description

The Baja Designs 448093 7XL Linkable Roof Bar Kit is the most versatile roof lighting option available for the 2022-2026 Polaris RZR Pro R platform, fitting all Sport, Premium, Ultimate, and Ultimate Launch Edition trims in both 2-seat and 4-seat configurations. Unlike fixed single-bar systems, the 7-pod XL Linkable design gives riders full independent control over each pod's horizontal and vertical aim - allowing a precisely tuned spread of Driving/Combo, High Speed Spot, and Wide Cornering light that can be configured straight across or arced to follow the roofline.

Installation is fully bolt-on using factory roof holes, with a pre-crimped and trimmed wiring harness that plugs directly into the Polaris Pulse Bar for a clean factory-finish result. Producing 22,050 lumens through 28 Cree LEDs, and backed by IP69K, IK10, MoistureBlock®, and CopperDrive® ratings alongside a Limited Lifetime Warranty, this kit is built to perform at race pace across every terrain the Pro R platform can handle.
